JAYCO TOWABLE SECTION 4 - TOWING & SET-UP
JFSTT/ JFXTT 4-17

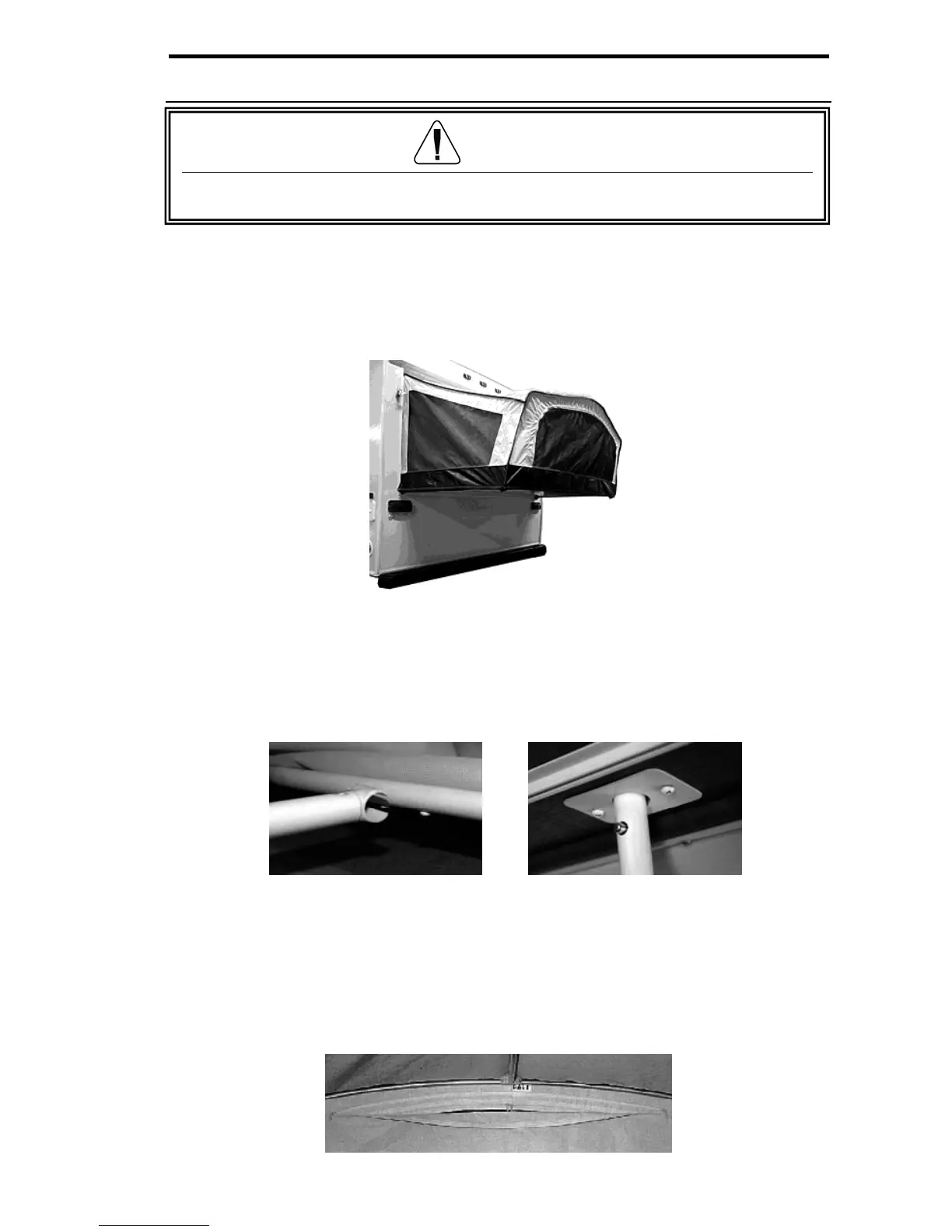

SETTING UP THE FRONT & REAR BEDS
The front bed is equipped with canvas straps to hold the bed mats in place while
not in use. Unhook the canvas straps by using the clips at the top edge.
1. Unlock and release the exterior locks that hold the bed board in place.
2. The bed board is supported by cables attached to the RV and the corners of
the bed board. Slowly lower the bed board (DO NOT drop the bed board) into
position. Maintain pressure on the bed board until the cables are fully
extended. Pull the tent canvas out and over the edges of the bed board.
Fig. 4.8 Tent canvas, exterior side view (rear)
3. From the interior, place the C-shaped end of the bed bow brace onto the bed
bow connector (Fig. A). Push the bed bow brace outward and upward while
pressing the second button from the curved end of the bed bow brace. Insert
the end of the brace into the bracket mounted on the shelf, just past the first
button (Fig. B). Release the button.
4. Attach the hinge cover to the bed board by placing the Velcro strip on the
hinge cover onto the Velcro strip on the bed board and pressing firmly.
5. Push the bed mats onto the bed board. Unfold the hinged mat and slide on to
the bed platform. Fold the canvas straps under the front edge of the small bed
mat.
4.9 Fig. A 4.9 Fig. B
CAUTION
Dropping the bed board could cause undo pressure on the RV, cable and bed
board.
