Jayco Cardinal User Manual

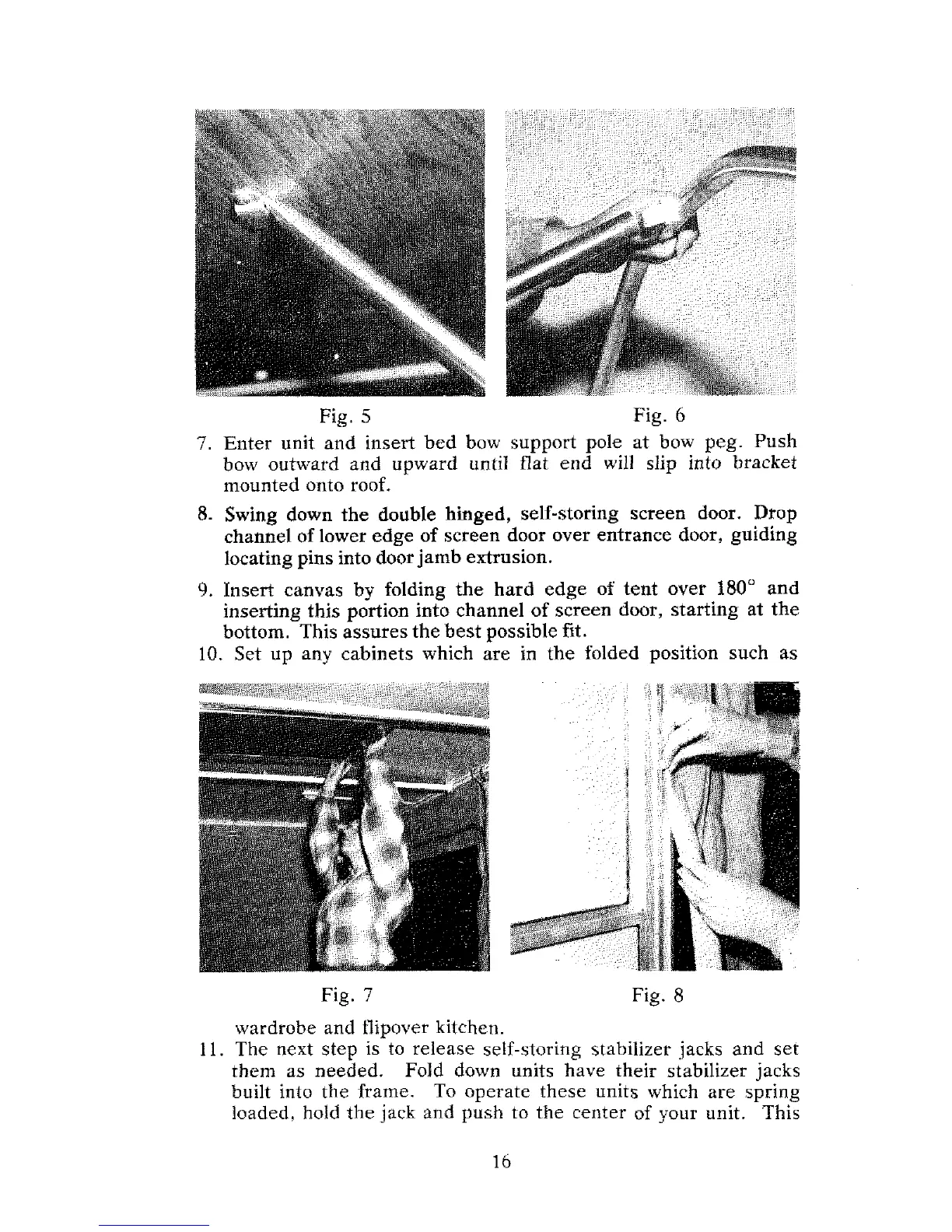

Fig. 5 Fig. 6
7. Enter unit and insert bed bow support pole at bow peg. Push
bow outward and upward until flat end will slip into bracket
mounted onto roof.
8- Swing down the double hinged, self-storing screen door. Drop
channel of lower edge of screen door over entrance door, guiding
locating
pins into door jamb extrusion.
9. Insert canvas by folding the hard edge of tent over 180" and
inserting
this portion into channel of screen door, starting at the
bottom. This assures the
best possible fit.
10. Set up any cabinets which are in the folded position such as
Fig. 7 Fig. 8
wardrobe and flipover kitchen.
11. The next step is to release seff-storing stabilizer jacks and set
them as
needed.
Fold down units have their stabilizer jacks
built into the frame.
To operate these units which are spring
loaded, hold ?he jack and push to the center of your unit.
This
