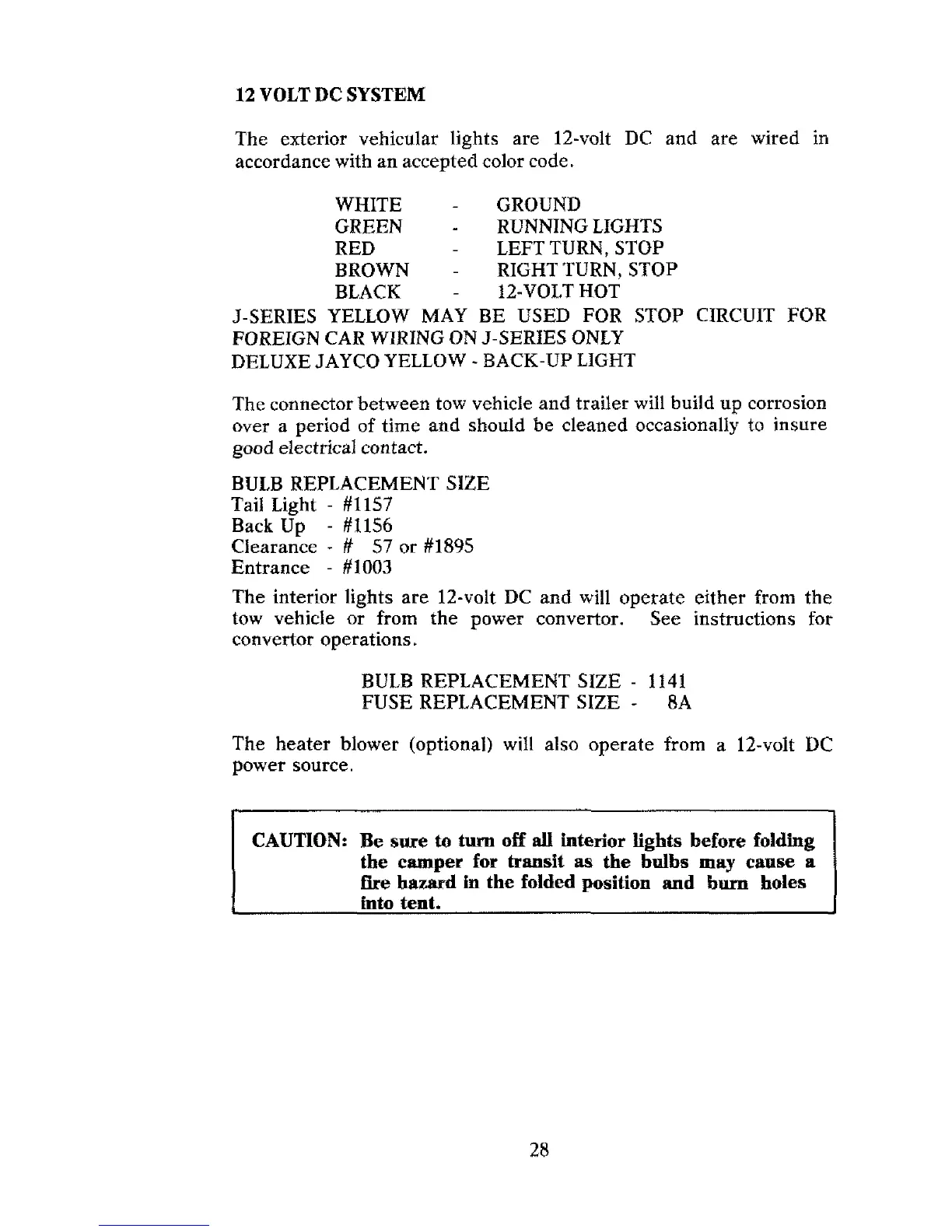

12 VOLT DC SYSTEM
The exterior vehicular lights are 12-volt DC and are wired in
accordance with an accepted color code.
WHITE - GROUND
GREEN
- RUNNING LIGHTS
RED - LEFT TURN, STOP
BROWN - RIGHT TURN, STOP
BLACK - 12-VOLT HOT
J-SERIES YELLOW MAY BE USED FOR STOP CIRCUIT FOR
FOREIGN CAR WIRING ON J-SERIES ONLY
DELUXE JAYCO YELLOW - BACK-UP LIGHT
The connector between tow vehicle and trailer will build up corrosion
over a period
of time and should be cleaned occasionally to insure
good electrical
contact.
BULB REPLACEMENT SIZE
Tail Light - #I157
Back Up - #I156
Clearance - # 57 or #I895
Entrance - #I003
The interior lights are 12-volt DC and will operate either from the
tow vehicle or from the Dower convertor. See instructions for
convertor operations.
BULB REPLACEMENT SIZE - 1141
FUSE REPLACEMENT SIZE - 8A
The heater blower (optional) will also operate from a 12-volt DC
power source.
CAUTION: Be sure to turn off all interior lights before folding
the
camper for transit as the bulbs may cmse a
fire hazard in the folded position and burn holes
C into tent.
