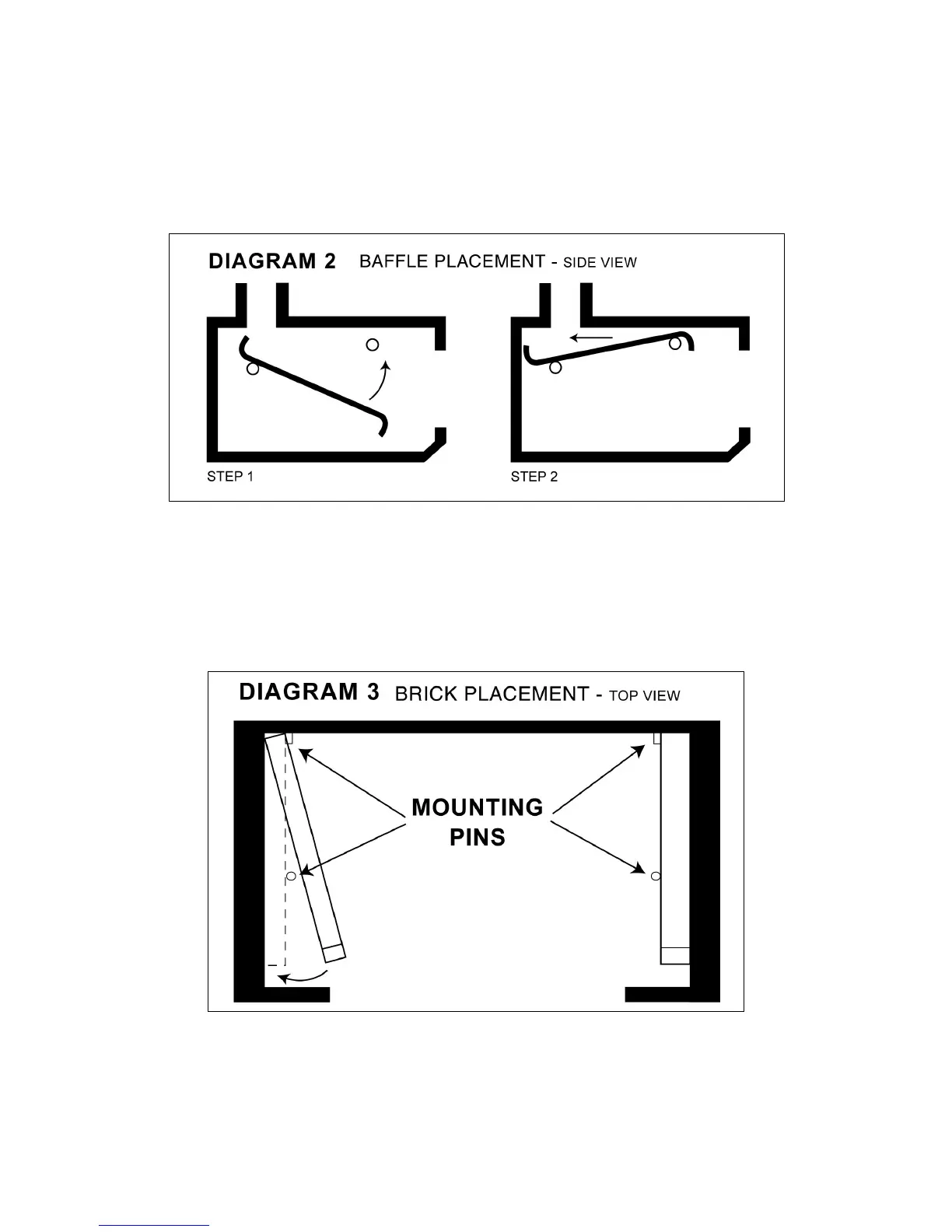

13 Position bricks in place so that they fit behind the rear mounting pin and the base
mounting pin (see diagram 3 below). This is designed to be a tight fit so that the
bricks are secure when in place. The angled edge of the brick should be at the
front on the side of the firebox. (Bricks for clean air models are fitted behind
mounting retainers that bolt onto the firebox sides. Bricks should line the sides
and rear of clean air models).
