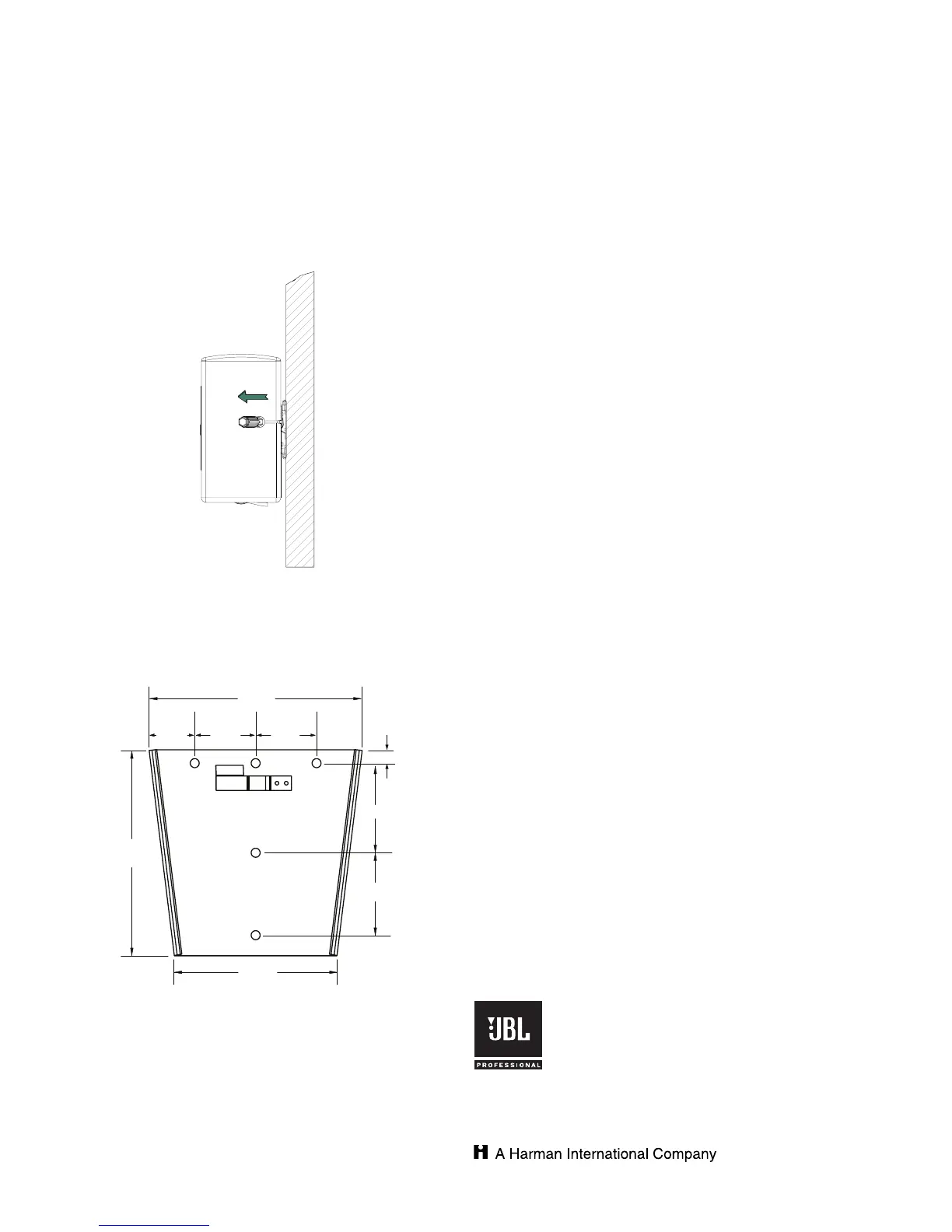

Removing from Wall -- If there is a need to remove the
subwoofer, insert an object such as long-shaft screwdriver
from the top. Leverage the handle of the screwdriver away
from the wall in order to press the spring latch toward the wall
to disengage the latch. While maintaining pressure on the
latch in this manner, lift the subwoofer upward to remove it
from the wall bracket.
(viewed from top)
Wall Bracket Dimensions
151 [6.0]
147 [5.8]
43 [1.7]
43 [1.7]33 [1.3]
64 [2.5]
58 [2.3]
10 [0.4]
6.4[0.25] dia (x5)
116 [4.5]
JBL Professional
8500 Balboa Boulevard, P.O. Box 2200
Northridge, CA 91329 USA
C50 Inst 6/09
