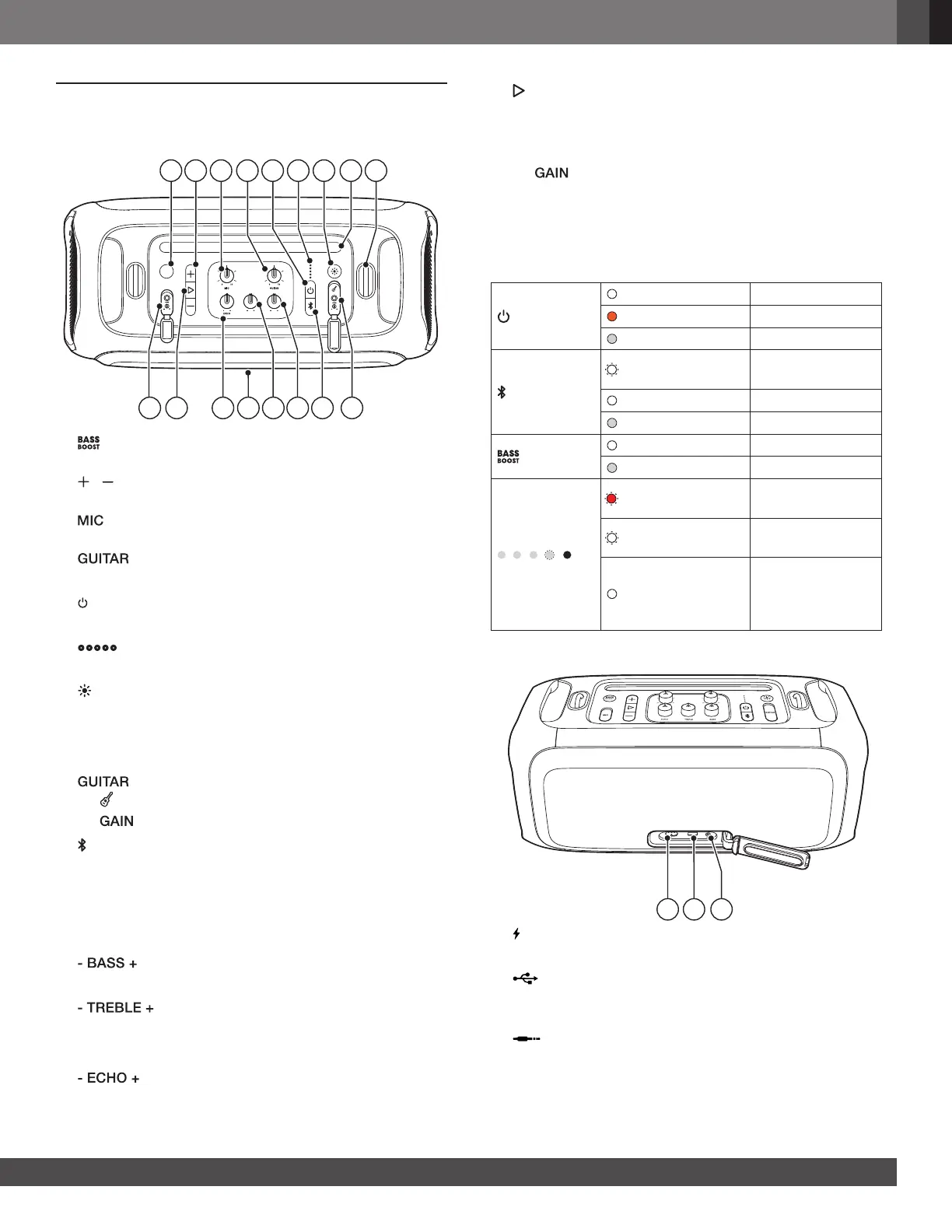

3. PRODUCT OVERVIEW
3.1 Top Panel
MIC2 /
GUITAR
BASS
TREBLE
BASS
BOOST
1011121315 1417 16
1 2 65 7 8 93 4
BASS
TREBLE
BASS
BOOST
1)
• Enhances the bass level: level 1, level 2, or off.
2) /
• Adjust main volume.
3) volume
• Adjust microphone volume (if connected).
4) volume
• Adjust guitar volume (if connected).
5)
• Turn the power on or off.
6)
• Battery level indicator
7)
• Press to switch between different light patterns.
8) Mobile device dock
9) Shoulder strap hooks
10) input
• : Connect to a guitar.
• : Adjust the guitar gain.
11)
• Press to enter Bluetooth pairing mode.
• Press and hold for more than 5 seconds to enter True
Wireless Stereo (TWS) pairing mode.
• Press and hold for more than 20 seconds to forget all
paired devices.
12)
• Adjust the bass level.
13)
• Adjust the treble level.
14) LED ring
15)
• Adjust the echo level.
16)
• Play, pause or resume.
17) MIC input
• Microphone socket: Connect to a microphone.
• : Adjust the microphone gain.
Caution:
– Do not look directly at the light-emitting parts when the speaker
lights are turned on.
LED behavior
Solid white Power on
Solid amber Standby
Off Power off
Flashing white
quickly
Pairing
White (Constant) Connected
Off Not connected
Solid white On
Off Off
Flashing red
quickly
Low battery
Flashing white
slowly
Charging
Solid white
The speaker is fully
charged when all
the ve indicators
turn solid white.
3.2 Back Panel
2 31
1) (AC)
• Connect to AC power supply.
2) (USB)
• Connect to a USB storage device.
• Charge your mobile device.
3) (AUX)
• Connect to an external audio device through a 3.5 mm
audio cable (not supplied).

JBL Harman PartyBox On-The-Go Specifications

General

Brand	JBL
Model	Harman PartyBox On-The-Go
Category	Portable Speakers
Language	English
