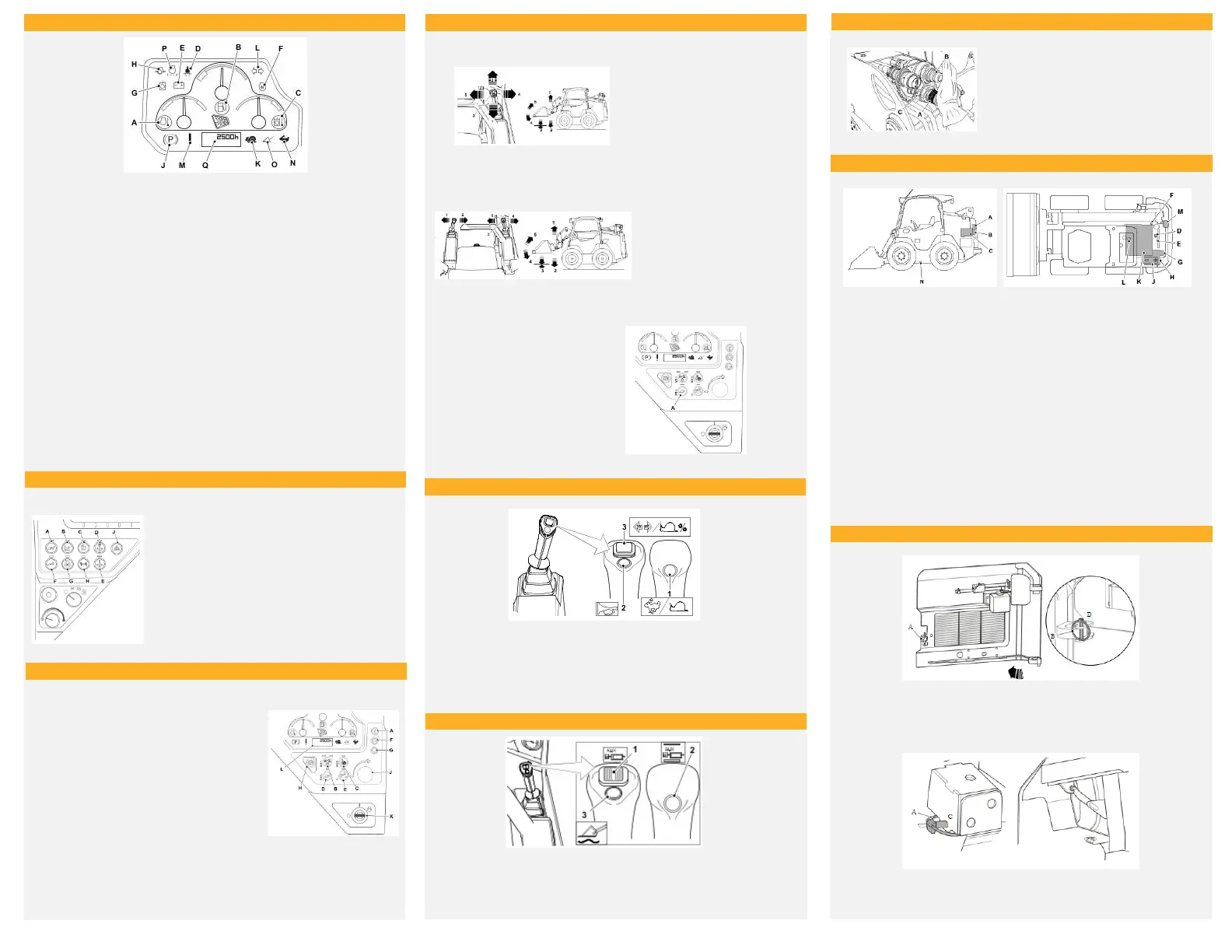

jcb 215 Quick Reference Guide

Lift Arm Controls
Access Covers
Instrument Panel
Service Points
1. Two speed (option) / creep speed drive control
(option)
2. Horn
3. Turn signal (option)/ creep setting (option)
Controls – Right Joystick
1. Auxiliary proportional control switch
2. Auxiliary proportional control hold switch
3. Float switch (option)
A. Engine coolant temperature high
B. Fuel level
C. Hydraulic oil temperature
D. Seat belt/restraint/pod warning
E. Alternator not charging
F. Cold start active
G. Hydraulic oil pressure
H. Engine oil pressure
J. Park brake on
K. Creep
L. Direction Indicators
M. Malfunction
N. High speed
O. Shovel float
P. Air filter blocked
Q. Info and hour meter display
A. Coolant expansion bottle
B. Main fuel filter, Water separator, Engine fuel filter
C. Air intake
D. Engine oil filler cap
E. Engine oil dipstick
F. Engine oil drain port
G. Hydraulic oil level indicator, Hydraulic oil filler cap
H. Battery isolator
J. Battery
K. Radiator
L. Radiator cap
M. Window washer fluid bottle
N. Chain case oil port
Controls – Left Joystick
Left Hand Switch Panel
A. Powered Quickhitch unlock (option)
B. SRS
C. High flow auxiliary (option)
D. ISO control pattern
E. H control pattern (option)
F. Powered Quickhitch lock (option)
G. Reversing fan (option)
H. Sidelights (option)
J. Hazard warning lights (option)
Left Hand Switch Panel
A. Info button
B. Front/rear work/road lights
(option)
C. Lift arm isolate
D. Electro-hydraulic attachment
positioning system (option)
E. Auxiliary hydraulics isolate switch
F. Up
G. Down
H. Park brake/drive and lift
arm/auxiliary hydraulics isolate
J. Hand throttle control knob
K. Ignition switch
L. LCD screen
ISO Pattern
1. Lift arm raise
2. Lift arm lower
3. Float switch
4. Shovel dump
5. Shovel crowd
1. Lift arm raise
2. Lift arm lower
3. Float switch
4. Shovel dump
5. Shovel crowd
H-Pattern (option)
Parallel Lift (option)
A. Parallel lift switch
Auxiliary Circuit Controls
A. Auxiliary coupler
B. Auxiliary coupler
C. Auxiliary drain coupler
A. Handle
B. Locking pin
D. Locking position
B. Locking pin
C. Stowage position

jcb 215 Specifications

General

Engine Power	74 hp
Rated Operating Capacity	2, 100 lbs
Lift Path	Vertical
Tipping Load	4, 200 lbs
Net Engine Power	74 hp
Width over Tires	1, 800 mm
Height to Top of Cab	2, 300 mm
Hinge Pin Height	2, 800 mm
Travel Speed	11 km/h
Travel Speed (High)	11 km/h
