The Trailer Tow Package may include a wiring
harness. Use a factory approved trailer harness
and connector.
NOTE:
Do not cut or splice wiring into the vehicle’s
wiring harness.
The electrical connections are all complete to
the vehicle but you must mate the harness to a
trailer connector. Refer to the following illustra-
tions.
NOTE:
• Disconnect trailer wiring connector from the
vehicle before launching a boat (or any other
device plugged into vehicle’s electrical con-
nect) into water.
• Be sure to reconnect after clear from water
area.
Pin Number Function Wire Color
1 Left Turn Signal Black/White
2 Rear Fog Light White
3
a
Ground/Common Return for Contacts (Pins) 1 and 2 and 4 to 8 Brown
4 Right Turn Signal Black/Green
5 Right Rear Position, Side Marker Lights, and Rear Registration Plate Illumination Device.
b
Green/Red
6 Stop Lights Black/Red
7 Left Rear Position, Side Marker Lights, and Rear Registration Plate Illumination Device.
b
Green/Black
8 Reverse lights Blue/Red

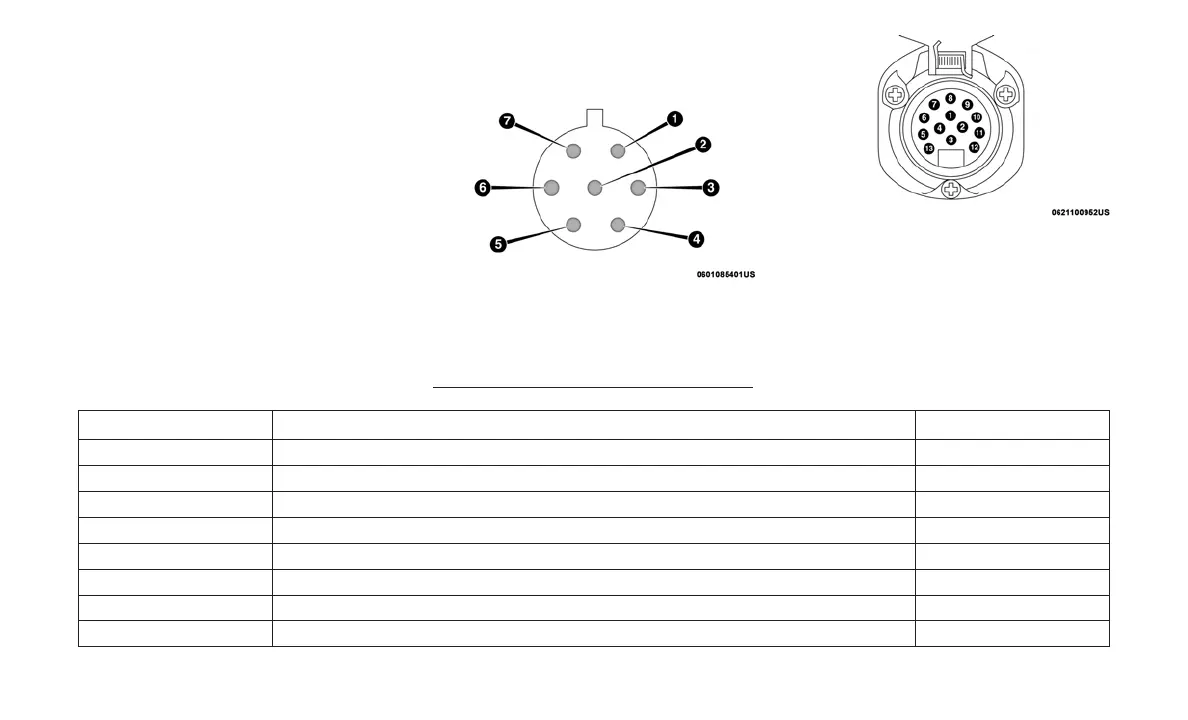

Seven-Pin Connector
1 — Battery 5 — Ground
2 — Backup Lamps 6 — Left Stop/Turn
3 — Right Stop/Turn 7 — Running Lamps
4 — Electric Brakes
