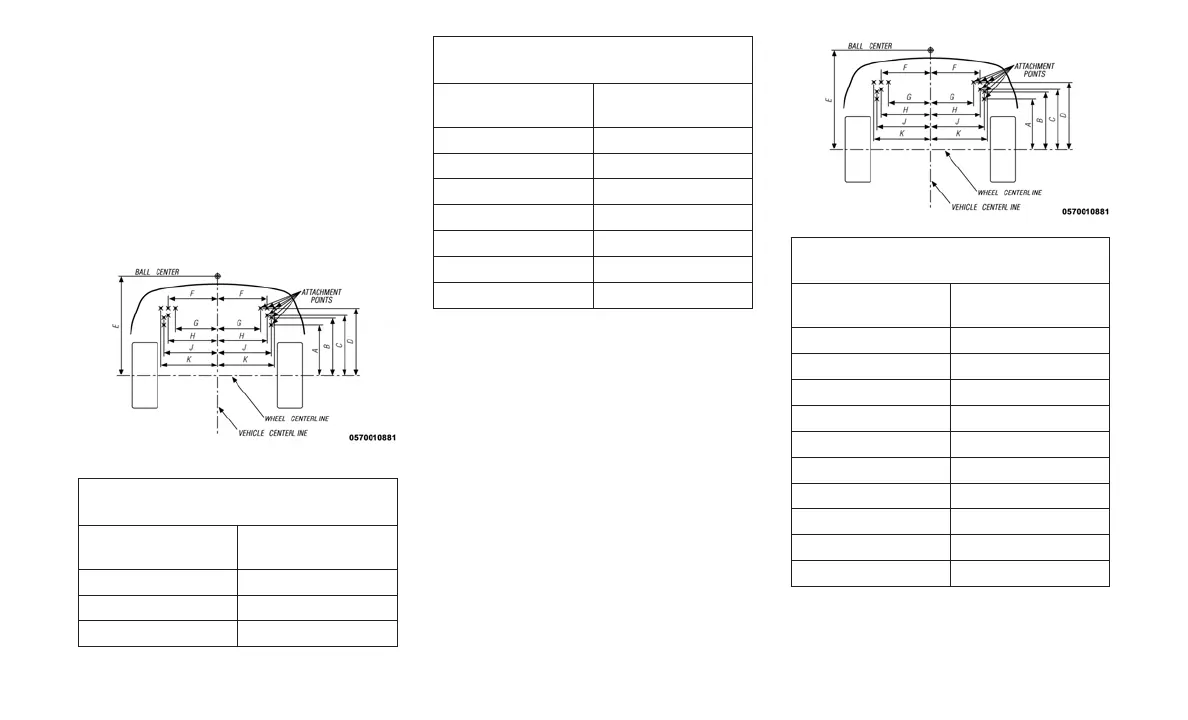

Trailer Hitch Attaching Points
(4x2 Models)
Your vehicle will require extra equipment to tow
a trailer safely and efficiently. The trailer tow
hitch must be attached to your vehicle using the
provided attaching points on the vehicle’s frame.
Refer to the following chart to determine the
accurate attaching points. Other equipment,
such as trailer sway controls and braking equip-
ment, trailer equalizing (leveling) equipment and
low profile mirrors, may also be required or
strongly recommended.
Trailer Tow Hitch Attaching Points And
Overhang Dimensions
Fixed, Detach and
Retractable Hitch
A 1.69 ft. (515 mm)
B 1.92 ft. (585 mm)
C 1.99 ft. (608 mm)
Trailer Tow Hitch Attaching Points And
Overhang Dimensions
Fixed, Detach and
Retractable Hitch
D 2.24 ft. (683 mm)
E (Overhang) 3.30 ft. (1007 mm)
F 1.62 ft. (494 mm)
G 1.39 ft. (424 mm)
H 1.62 ft. (495 mm)
J 1.76 ft. (535 mm)
K 1.86 ft. (567 mm)
Trailer Hitch Attaching Points
(4x4 Models)
Your vehicle will require extra equipment to tow
a trailer safely and efficiently. The trailer tow
hitch must be attached to your vehicle using the
provided attaching points on the vehicle’s frame.
Refer to the following chart to determine the
accurate attaching points. Other equipment,
such as trailer sway controls and braking equip-
ment, trailer equalizing (leveling) equipment and
low profile mirrors, may also be required or
strongly recommended.
Trailer Tow Hitch Attaching Points And
Overhang Dimensions
Fixed, Detach and
Retractable Hitch
A 1.65 ft. (503 mm)
B 1.88 ft. (573 mm)
C 1.96 ft. (596 mm)
D 2.20 ft. (671 mm)
E (Overhang) 3.26 ft. (995 mm)
F 1.62 ft. (494 mm)
G 1.39 ft. (424 mm)
H 1.62 ft. (495 mm)
J 1.76 ft. (535 mm)
K 1.86 ft. (567 mm)
210
