5. To replace the DRL bulb gently push bulb
towards housing. Be sure to hear both the
top and bottom locking tabs “CLICK” to en-
sure the bulb is properly seated.
6. For the turn signal bulb, rotate in a counter-
clockwise direction and remove the bulb and
bulb socket. Pull the bulb axially to remove it
from the socket.
7. Install the bulb and sockets and rotate them
clockwise making sure that it is properly
locked.
8. Reconnect the electrical connectors.
9. Reinstall the wheel liner.
NOTE:
We advise referring to an authorized dealer.
Front Fog Lights
To replace the bulbs proceed as follows:
1. Turn the front wheels completely.
2. Remove the wheel liner.
3. By pushing the electrical connector tab re-
move the electrical connector.
4. Rotate the bulb counterclockwise, and then
replace the bulb.
5. Insert the new bulb in the socket, making
sure the bulb is locked into place.
6. Reconnect the electrical connector.
7. Reinstall the wheel liner.
NOTE:
We advise referring to an authorized dealer.
Rear Body Side Tail Lamps
Contain the following:
• Position lights
• Stop lights
• Direction indicator
To replace the bulbs proceed as follows:
1. Open the liftgate.
2. Using a suitable tool remove fasteners.
3. Disconnect the electrical connector by push-
ing the release.
4. Remove the rear body side tail lamp, sliding
it away from the back of the vehicle.

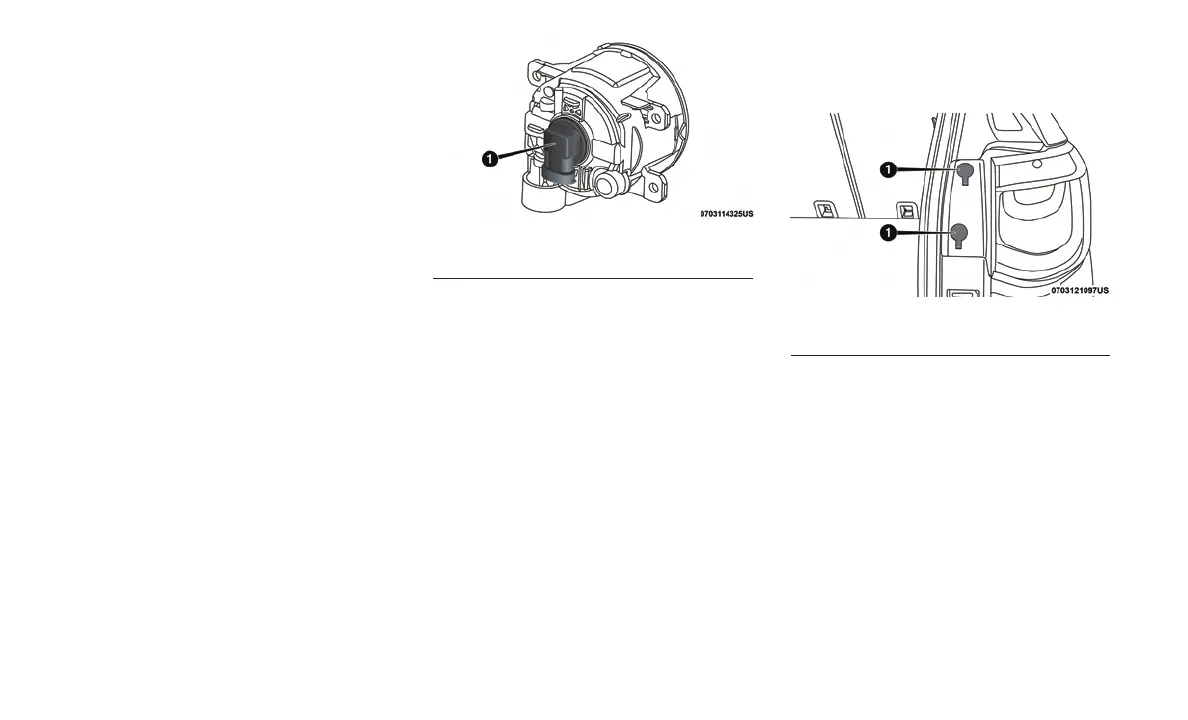

Fog Lamp Housing
1 — Bulb
Body Side Tail Lamp Opening
1 — Fasteners
