Rear Cargo Fuse/Relay Distribution
Unit
To access the fuses, remove the access door
from the left rear panel of the rear cargo area.
The fuses may be contained in two units. Fuse
holder No. 1 is located closest to the rear of the
vehicle and fuse holder No. 2 (if equipped with
trailer towing) is located closest to the front of
the vehicle.
Fuse Holder No. 1
Cavity Mini Fuse Description
F1 30 Amp Green Power Inverter
F2 30 Amp Green Memory Seat
F3 20 Amp Yellow Sun Roof – If Equipped
F4 30 Amp Green Power Seat (Passenger Side)
F5 30 Amp Green Power Seat (Driver Side)
F6 7.5 Amp Brown Power Lumbar (Power Seats)
F7 15 Amp Blue Heated Steering Wheel / Ventilated Seats
F8 20 Amp Yellow Heated Seats

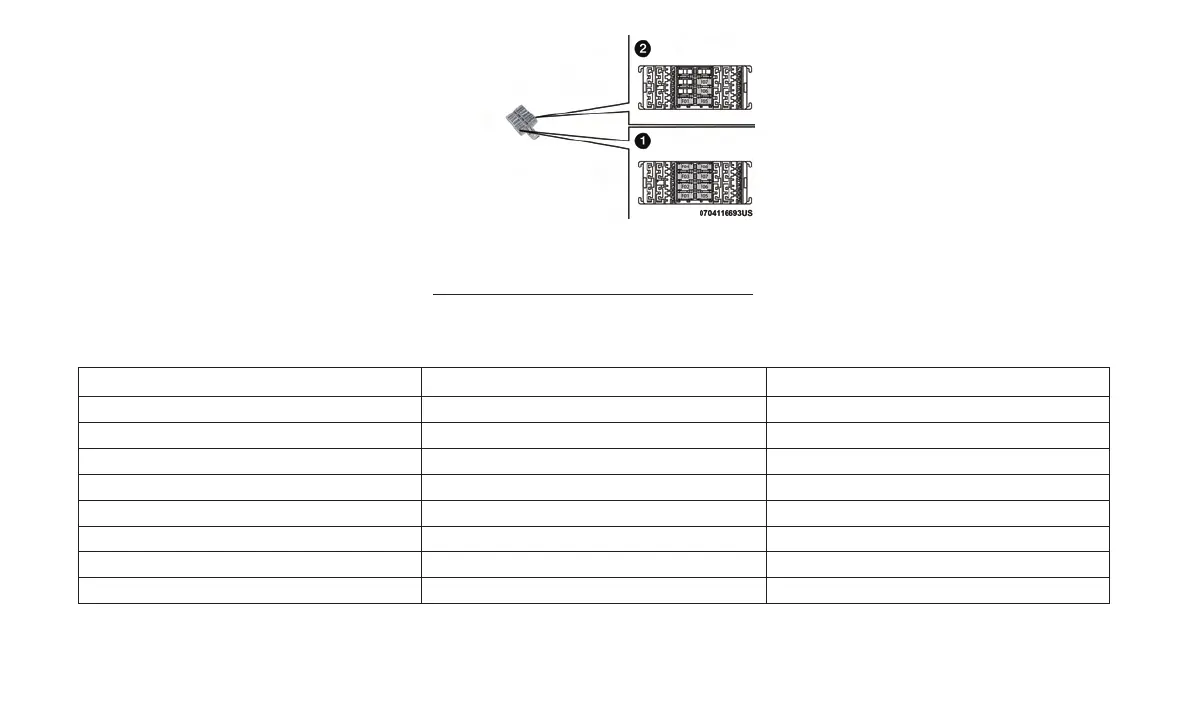

Rear Cargo Fuse Cavities
1 — Fuse Holder No. 1
2 — Fuse Holder No. 2
229
