• Trailer brakes are recommended for trailers
over 1,000 lbs (453 kg) and required for
trailers in excess of 2,000 lbs (907 kg).
WARNING!
• Do not connect trailer brakes to your vehi-
cle’s hydraulic brake lines. It can overload
your brake system and cause it to fail. You
might not have brakes when you need
them and could have a collision.
• Towing any trailer will increase your stop-
ping distance. When towing you should
allow for additional space between your
vehicle and the vehicle in front of you.
Failure to do so could result in a collision.
CAUTION!
If the trailer weighs more than 1,000 lbs
(453 kg) loaded, it should have its own
brakes and they should be of adequate ca-
pacity. Failure to do this could lead to accel-
erated brake lining wear, higher brake pedal
effort, and longer stopping distances.
Towing Requirements — Trailer Lights And
Wiring
Whenever you pull a trailer, regardless of the
trailer size, stoplights and turn signals on the
trailer are required for motoring safety.
The Trailer Tow Package may include a wiring
harness. Use a factory approved trailer harness
and connector.
NOTE:
Do not cut or splice wiring into the vehicle’s
wiring harness.
The electrical connections are all complete to
the vehicle but you must mate the harness to a
trailer connector. Refer to the following illustra-
tions.
NOTE:
• Disconnect trailer wiring connector from
the vehicle before launching a boat (or
any other device plugged into vehicle’s
electrical connect) into water.
• Be sure to reconnect after clear from wa-
ter area.

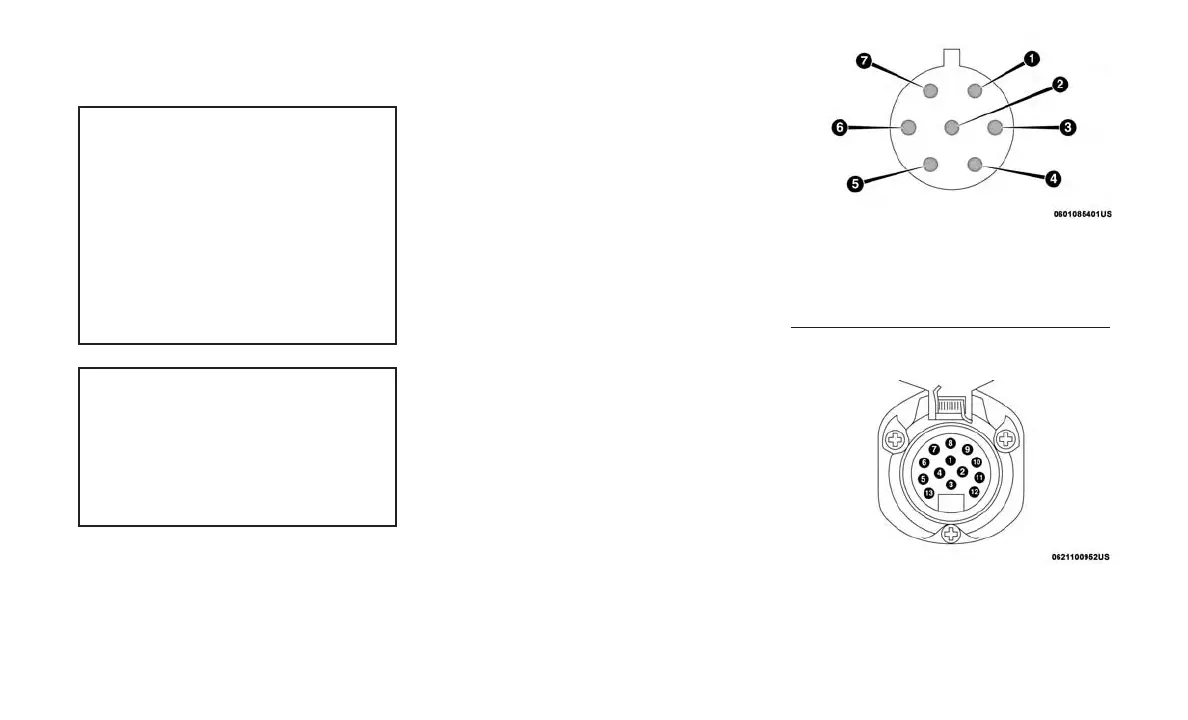

Seven-Pin Connector
1 — Battery 5 — Ground
2 — Backup Lamps 6 — Left Stop/Turn
3 — Right Stop/Turn 7 — Running Lamps
4 — Electric Brakes
13–Pin Connector — If Equipped
145
