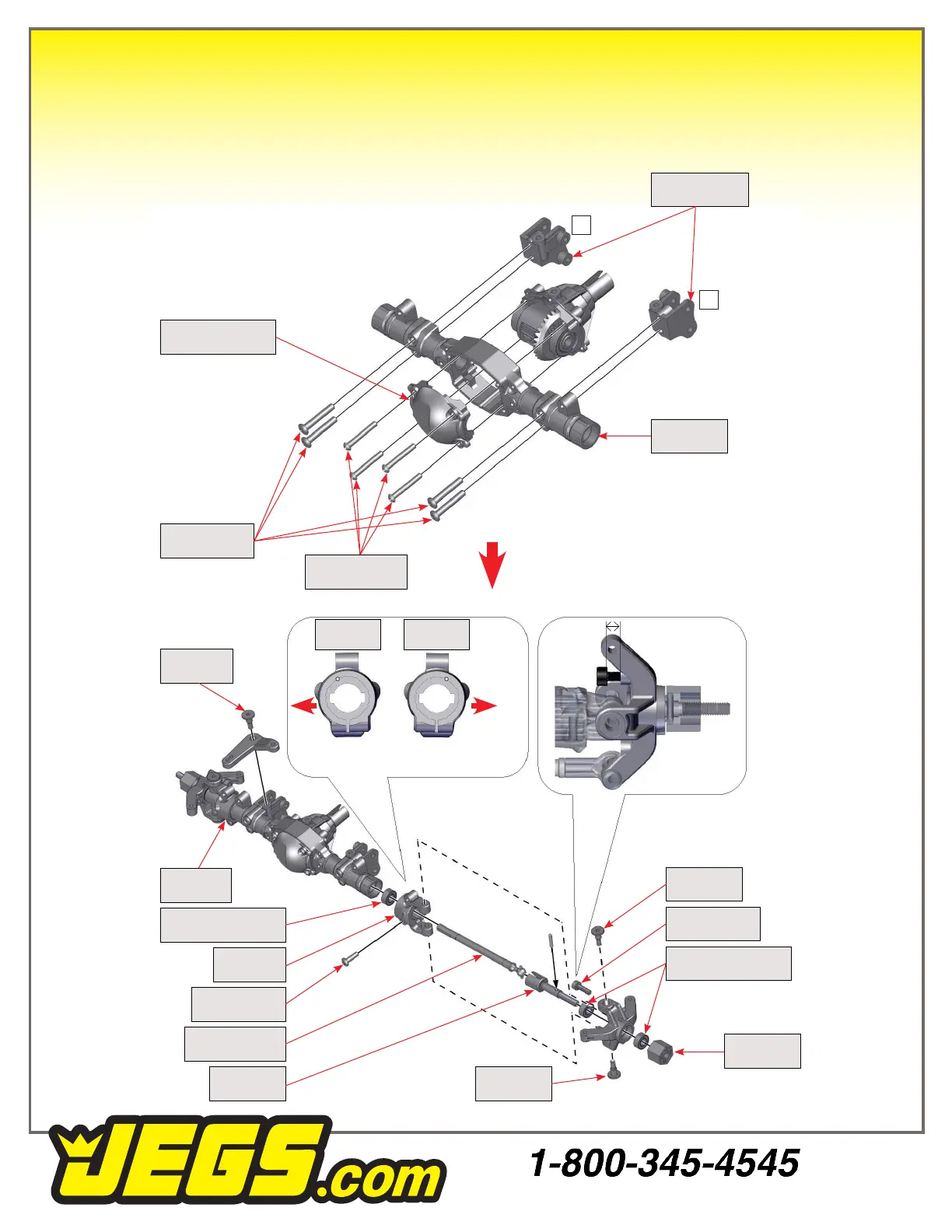

Front End Assembly
Bag B
555-44694
Differential Cover
555-44776
M3x18mm BH
555-44746
M2.5x18mm BH
555-44694
Solid Axle
555-44704
4-Link Bracket
B
A
555-44678
King Pin
555-44724
C Hub
_
B
555-44734
5x10x4mm Bearing
555-44760
M3x10mm BH
555-44690
Front Axle Shaft
555-44724
C Hub
_
A
555-44820
Wheel Axle
555-44678
King Pin
555-44822
Wheel Nut
555-44762
M3x10mm CH
555-44678
King Pin
555-44734
5x10x4mm Bearing
555-44724
C Hub
_
B
555-44724
C Hub
_
A
Front Front
Castor Angle Adjustment:
Recommended at the highest point, refer to the
diagram. Each point is a 15º increment increase.
About 3-3.5 mm
