Device description
LDM52 OEM, Release 003, Revision 000
4 Device description
4.1 Scope of delivery
LDM51_Measuring Module OEM
PLease use following reflection foils for long range measurements:
Reflective tape Oralite 5200, 300x300
300 mm x 300 mm
measurements from as low as 50 m
Reflective tape Oralite 5200, 1000x1000
1 m x 1 m
measurements from as low as 50 m
Reflecting tape Oralite special, 300x300
300 mm x 300 mm
measurements from as low as 0.15 m
4.2 Mechanical installation
The LDM52 OEM can be screwed on using 4 pieces fastening screws M2.5 (length to be chosen
depending on the counter piece).
Connector Samtec,
The zero point for measurement is identical with the housing front face.
When the LDM52 OEM in a standard housing is used outdoors under extreme environmental
conditions, an additional weather protector (e.g. cover plate in a small distance to the LDM) is
recommended. Otherwise, moisture may enter the device due to rapid temperature changes.
Legend:
Tief – deep
Strahlaustritt – laser emission point

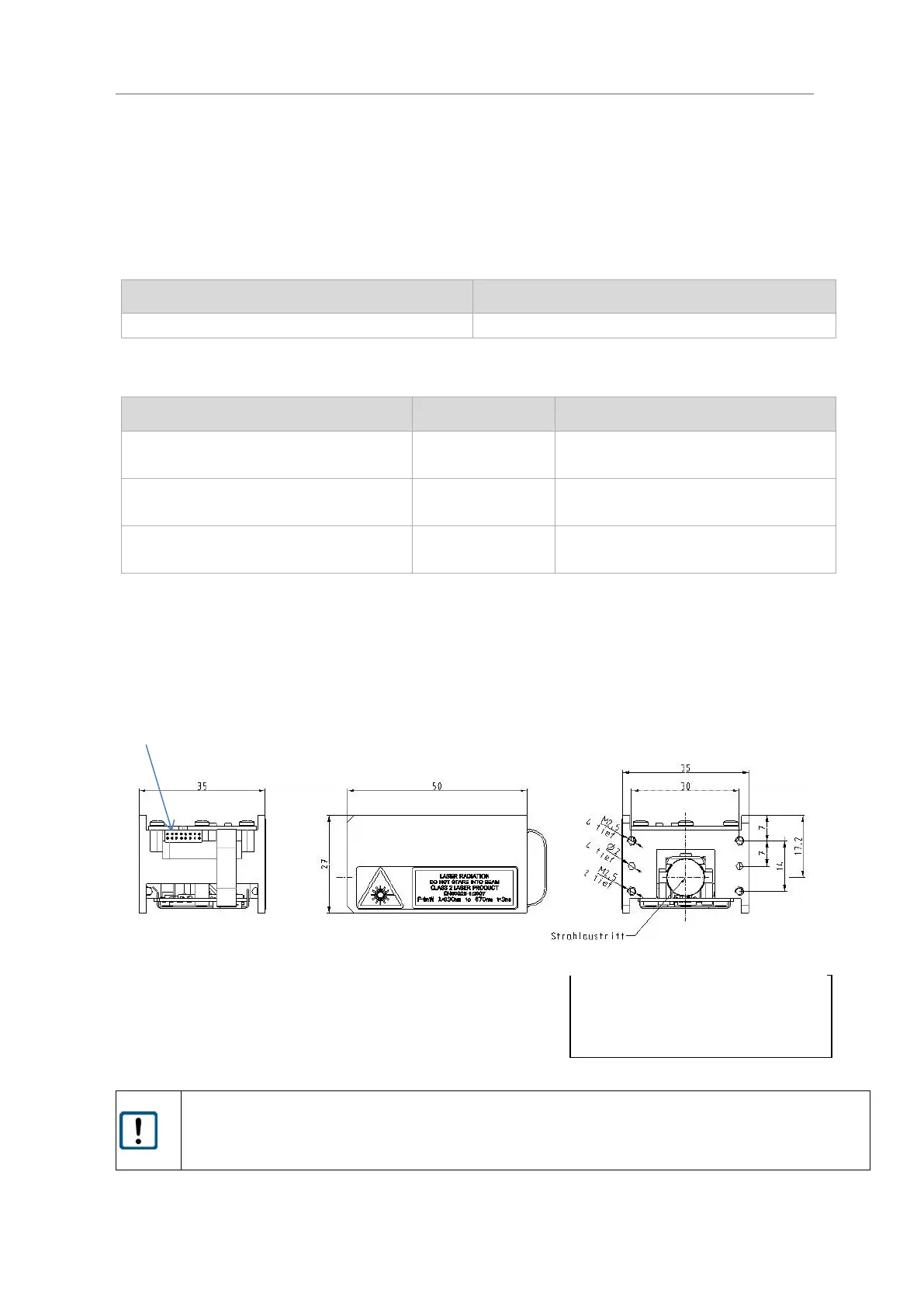

Figure 1 LDM51_Measuring Module OEM, dimensions
