Serial interface and communication software
LDM52 OEM, Release 003, Revision 000
7.2 Installation of the communication program
HyperTerminal is a terminal program generally included in Win32 operating systems. It can be
used as a communication program to parameterize the LDM52 OEM.
Start HyperTerminal via the following menu path:
|Start | Programs | Accessories | Communication | HyperTerminal|

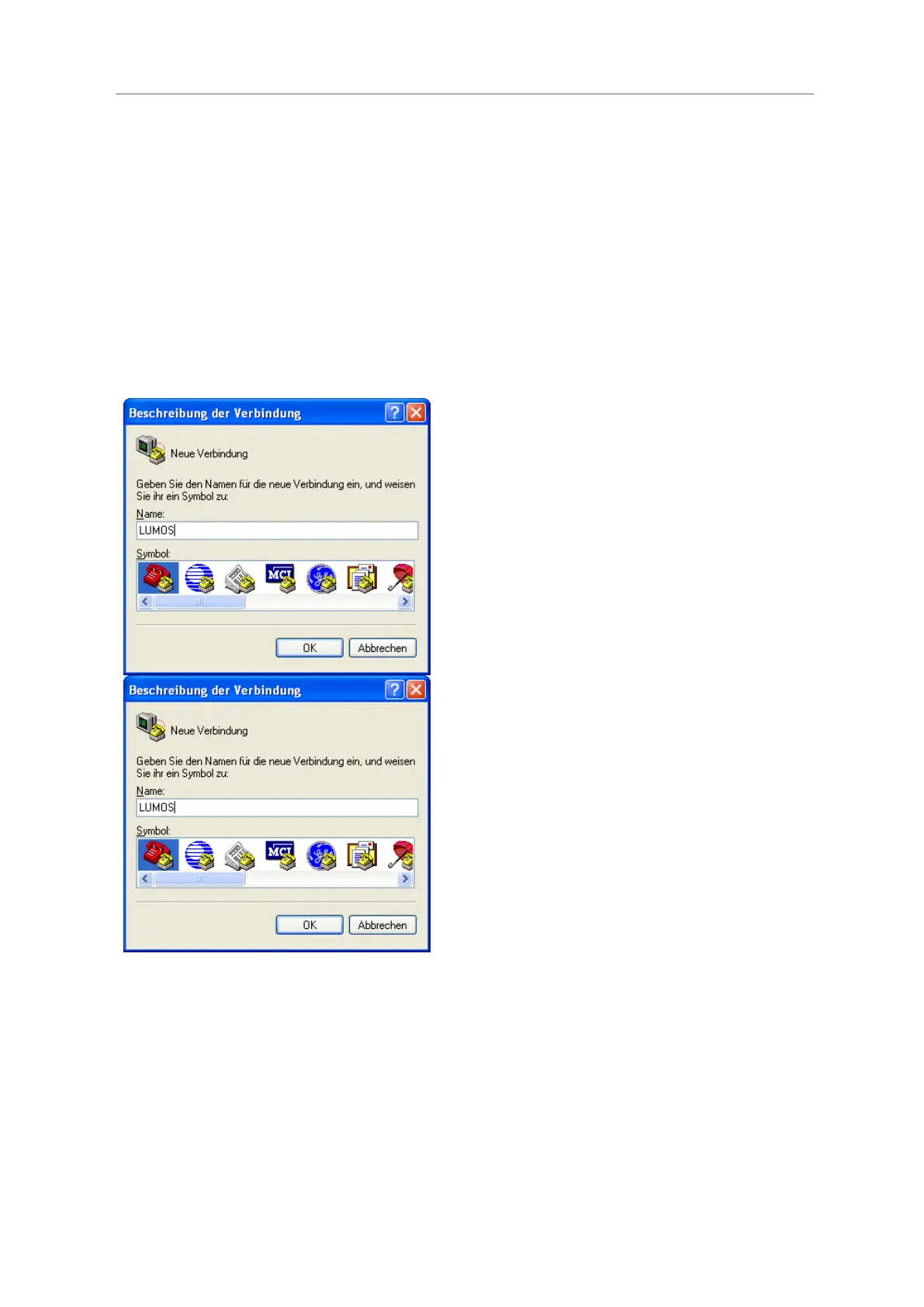

Enter the name of the new connection in the
dialog box.
You can select any name. Confirm with [OK].
Select the serial COM interface in the sec-
ond dialog box.
Upon confirming with [OK] a third dialog
box will appear where the parameter set-
tings for the current HyperTerminal session
can be selected.
