Jensen JAN139 - Page 2

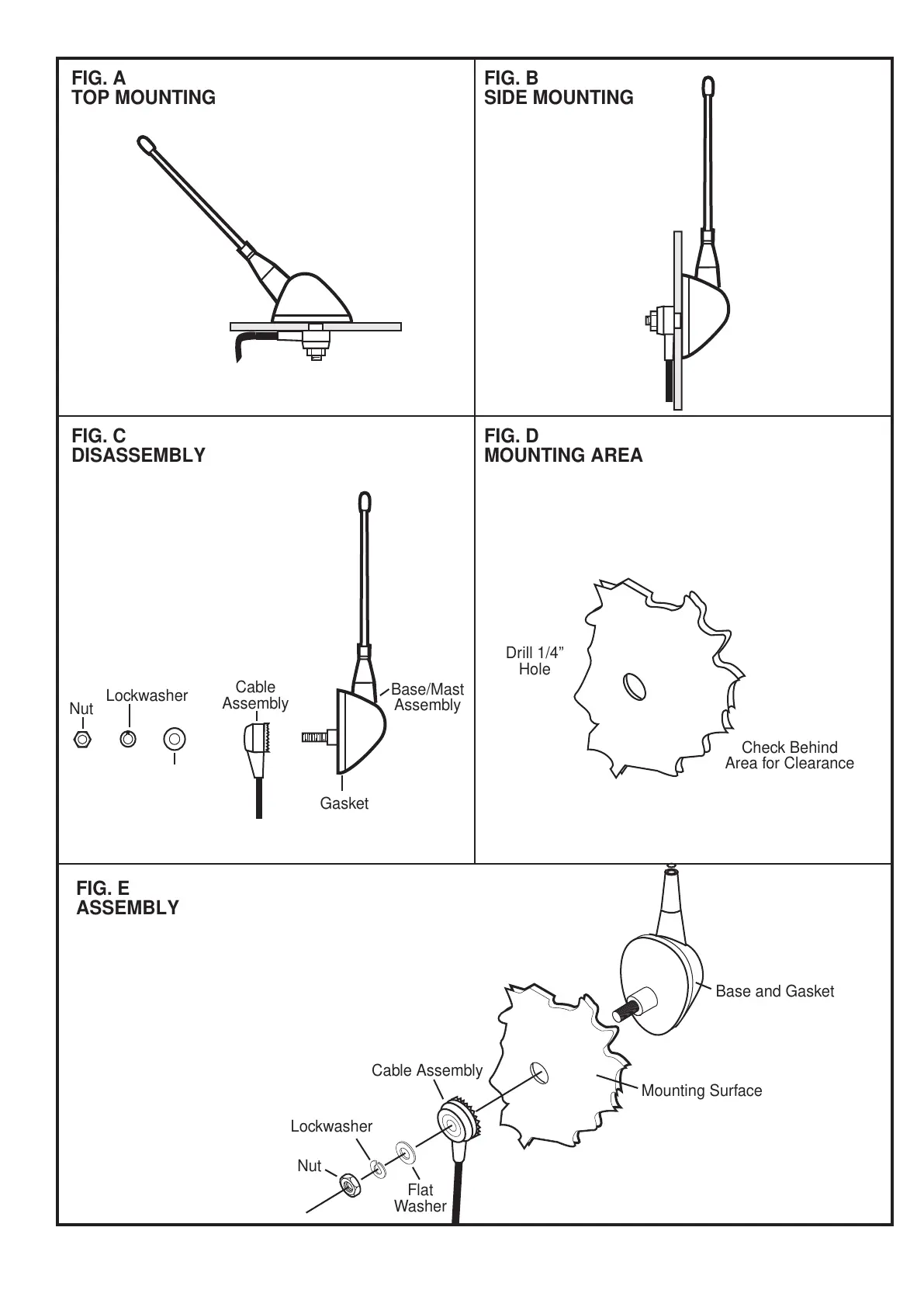

FIG. A
TOP MOUNTING
FIG. B
SIDE MOUNTING
FIG. C
DISASSEMBLY
FIG. D
MOUNTING AREA
FIG. E
ASSEMBLY
Nut
Lockwasher
Flat
Washer
Cable
Assembly
Gasket
Base/Mast
Assembly
Drill 1/4”
Hole
Check Behind
Area for Clearance
Base and Gasket
Mounting Surface
Cable Assembly
Nut
Lockwasher
