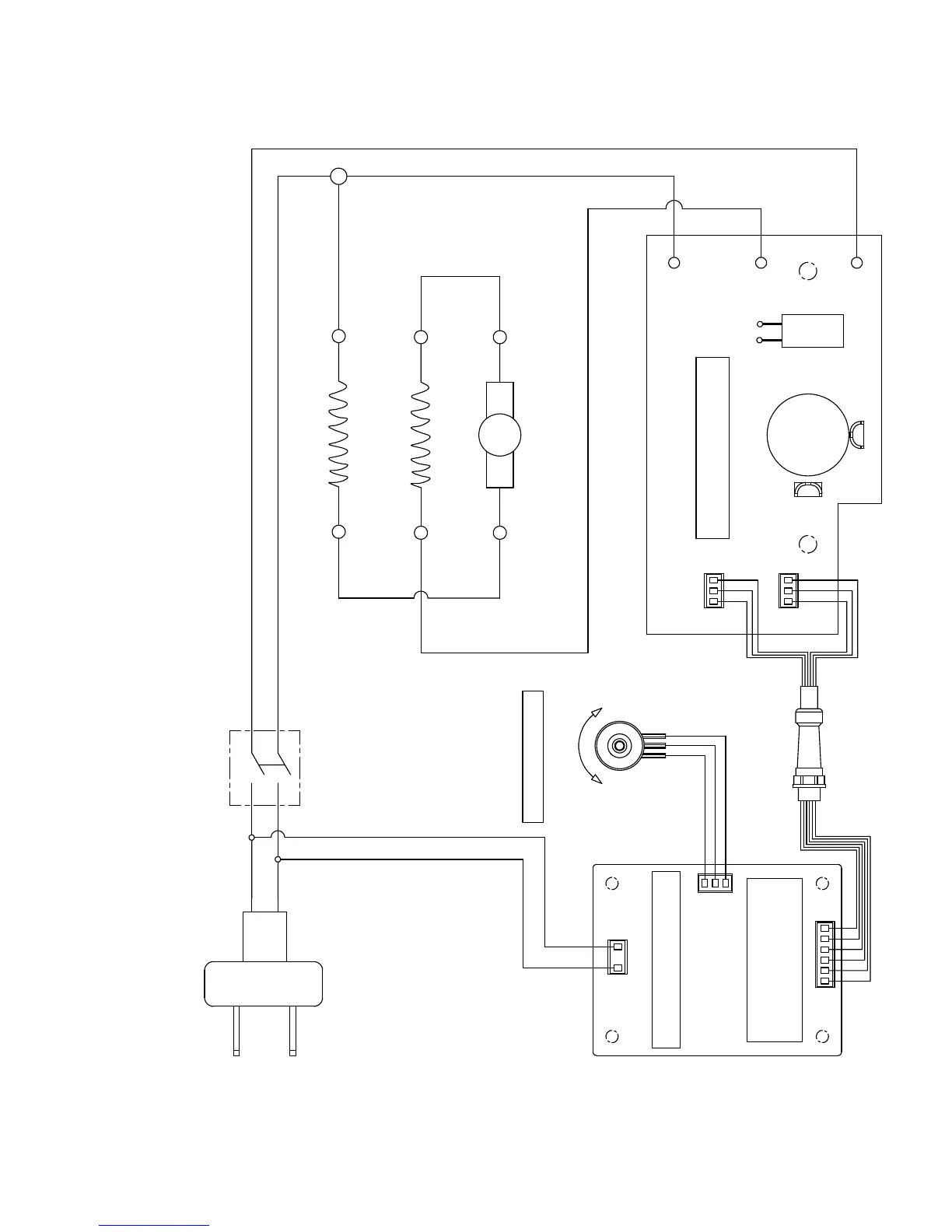

JessEm Tool POW R TEK - Page 26

Motor Control PCB
Speed Display PCB
0 0 0 0 0
main winding -R
Main winding-L
Brush-R
Brush-L
M
Power
ON/OFF
Speed Adjustment
Potentiometer
1
4
3
1 2 3 4 5 6
5
6
2 3
12
3 2
1
Modèle No.: 05200. Moteur Paramètre: 120V 60Hz 15A Aucune vitesse de chargement: 10,000~21,000 RPM
