UNDER COUNTER INSTALLATION
• Install legs on machine
• Make sure the machine is leveled.

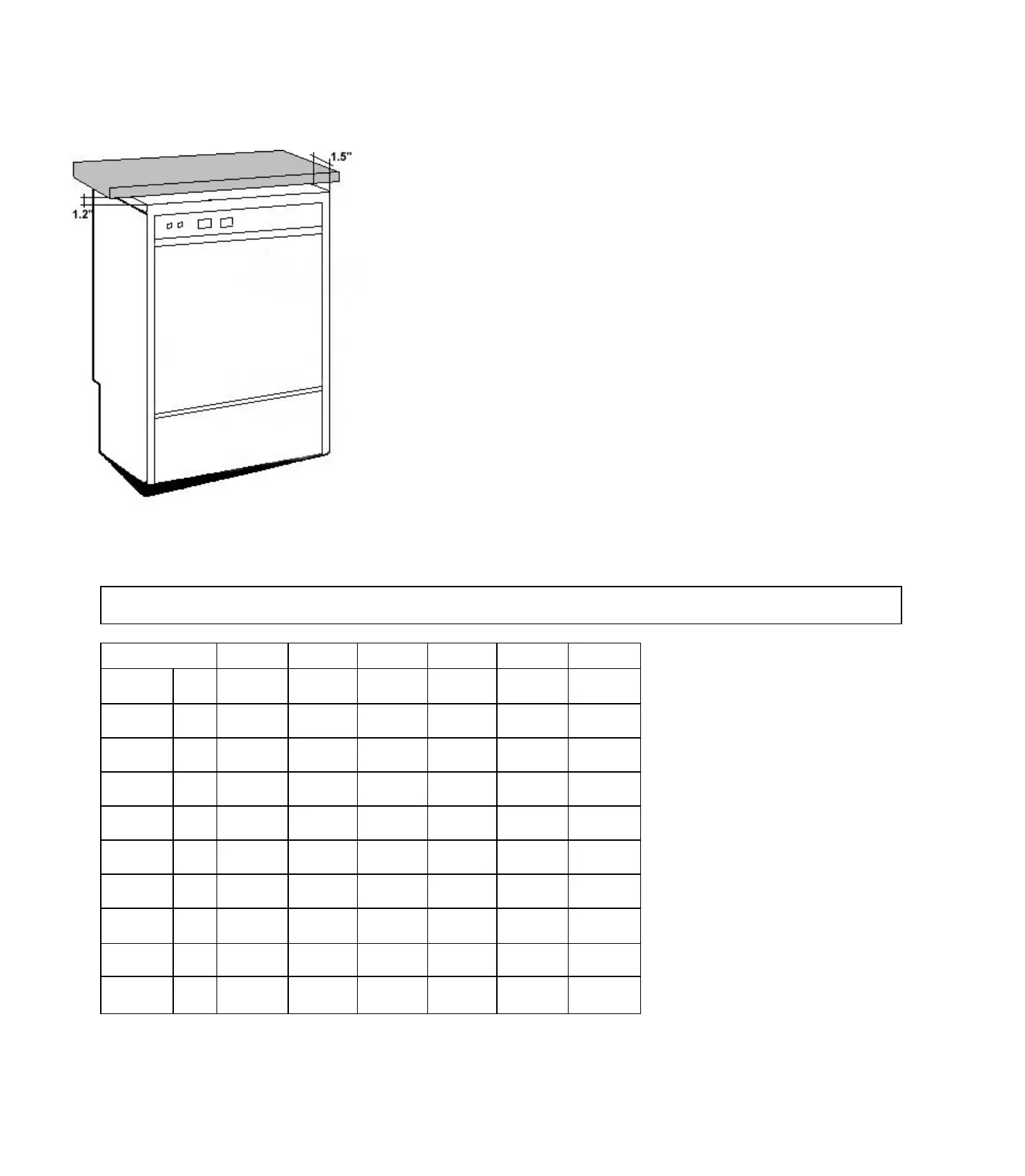

• If a counter is put on top of the dishwasher, it is preferable if the
counter can be removed easily for servicing. If the counter is fixed,
leave half an inch (minimum) between the counter and the top of the
unit.
TABLE FOR UTILITY CONNECTIONS DIMENSIONS SEE PAGE 11
MODEL SIDE A SIDE B SIDE C SIDED SIDE E SIDE F
PIPER
mm 270 375 315 74 95 42
inch
10.6
14.7
12.4
3
3.7
1.6
mm 190 230 295 38 85 38
inch
7.5
9.1
11.6
1.5
3.3
1.5
mm 190 230 295 38 85 38
inch
7.5
9.1
11.6
1.5
3.3
1.5
mm 240 305 365 50 85 50
inch
9.5
12
14.3
2
3.3
2
F18DP
mm 240 305 365 50 85 50
inch
9.5
12
14.3
2
3.3
2
mm 430 390 245 180 545 510
inch
17
15.3
9.6
7.1
21.4
20.1
mm 505 380 180 185 380 380
inch
19.9
15
7.1
7.2
15
15
727
mm 305 80 408 50 50 50
inch
12
3.15
16
2
2
2
mm 380 320 460 50 50 50
inch
15
12.6
18.1
2
2
2
mm 505 380 180 185 380 380
inch
19.9
15
7.1
7.2
15
15
