4
If ceiling mounted, the bottom of the
air cleaner must be at least 2,1m
above the floor.
Mounts must be anchored to building
structure, which will support a
minimum of 50 kg.
Never mount to surfaces such as dry
wall or false ceiling grids, etc.
Make sure that the power cord does
not impede work and cause people
to trip.
Do not operate the machine under
the influence of drugs, alcohol or any
medication. Be aware that
medication can change your
behaviour.
Never leave a running machine
unattended. Before you leave the
workplace switch off the unit.
Keep children and visitors a safe
distance from the work area.
Do not operate the electric tool near
inflammable liquids or gases.
Observe the fire fighting and fire alert
options, for example the fire
extinguisher operation and place.
Do not use the air cleaner in a dump
environment and do not expose it to
rain.
Never duct a machine directly into
the air cleaner.
Do not use this equipment to filter
volatile fumes or smoke.
Wood dust is explosive and can also
represent a risk to health.
Dust form some tropical woods in
particular, and from hardwoods like
beach and oak, is classified as a
carcinogenic substance.
The air filtration system will support,
but cannot subsidise the application
of a suitable dust extraction device
for your woodworking machines.
Do not stand on or hang on the air
cleaner.
Connection and repair work on the
electrical installation may be carried
out by a qualified electrician only.
Have a damaged or worn power cord
replaced immediately.
3.3 Remaining hazards
When using the machine according
to regulations some remaining
hazards may still exist.
Woodworking dust can be a health
hazard. The air filtration system will
support but cannot subsidise the
application of a suitable dust
extraction device for your
woodworking machines
The use of incorrect mains supply or
a damaged power cord can lead to
injuries caused by electricity.
4. Machine specifications
4.1 Technical data
Air volume flow 12, 15, 20 m³/min
Programmable timer 2, 4, 8 hours
Replacement outer filter 5 micron
Washable inner filter 1 micron
Overall (LxWxH) 768x610x305mm
Net weight 25 kg
Mains 230V ~1/N/PE 50Hz
Output power 0,12 kW (0,16HP) S1
Reference current 3 A
Extension cord (H07RN-F): 3x1,5mm²
Installation fuse protection 10A
4.2 Noise emission
Acoustic pressure level (EN 11202):
low speed 62 dB (A)
medium speed 67 dB (A)
high speed 69 dB (A)
The specified values are emission
levels and are not necessarily to be
seen as safe operating levels.
As workplace conditions vary, this
information is intended to allow the
user to make a better estimation of
the hazards and risks involved only.
4.3 Content of delivery
Infrared remote control unit
AAA batteries
Eye-bolts and nuts
Mounting brackets
Hex cap screws and washers
Foam pads
Operating manual
Spare parts list.
5. Assembly and start up
5.1 Assembly
If you notice transport damage while
unpacking, notify your supplier
immediately. Do not operate the unit!
Remove all packing from the inside
of the unit by removing the outer filter
and the inner filters.
Install the supplied AAA batteries
into the remote control unit.
Dispose of the packing in an
environmentally friendly manner.
5.2 Installation
This unit will work best if it is located
away from corners, and
heating/cooling vents.
This unit is specifically designed to
circulate air and filter dust, which is
generated throughout the work area.
The air cleaner is designed to
operate in closed rooms and can be
operated horizontally and vertically.
The unit can also be hung from the
ceiling.
A) Placed on levelled surface
Before you set the unit on a stable
and levelled surface, stick the four
foam pads to the bottom corners of
the cabinet.
B) Mounted to wall or ceiling:
Four brackets can be used for
mounting to the wall or ceiling.
Place one end of the brackets
underneath the lip of the cabinet.

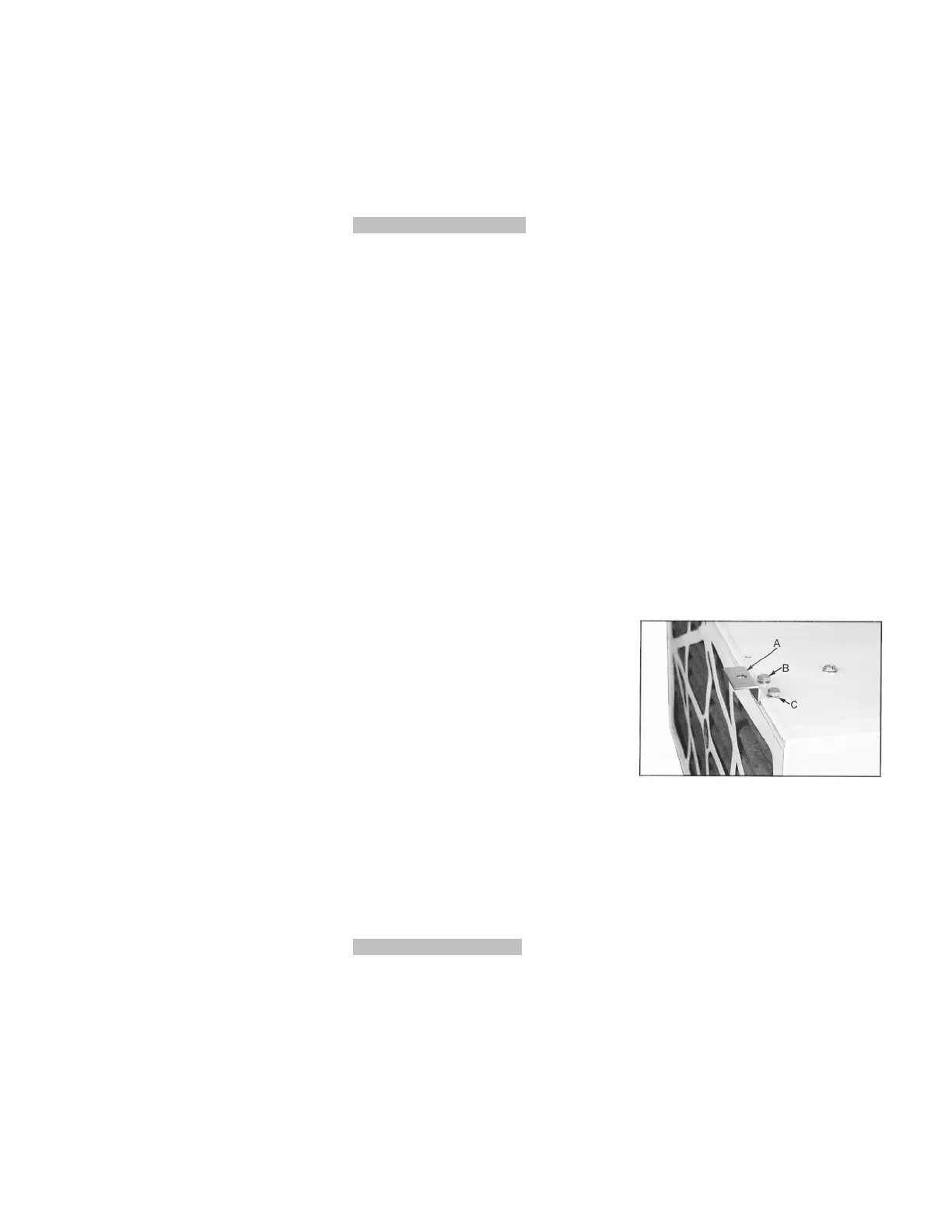

Attach the brackets (A, Fig 1) with
two hex cap screws (B, Fig 1) and
two lock washers (C, Fig 1).
Fig 1
Note:
Mounts must be anchored to
building structure, which will
support a minimum of 50 kg.
Never mount to surfaces such as
dry wall or false ceiling grids, etc.
If ceiling mounted, the bottom of the
air cleaner must be at least 2,1m
above the floor.
C) Hanging from ceiling:
Remove four screws (A, Fig 2) from
the cabinet top.
