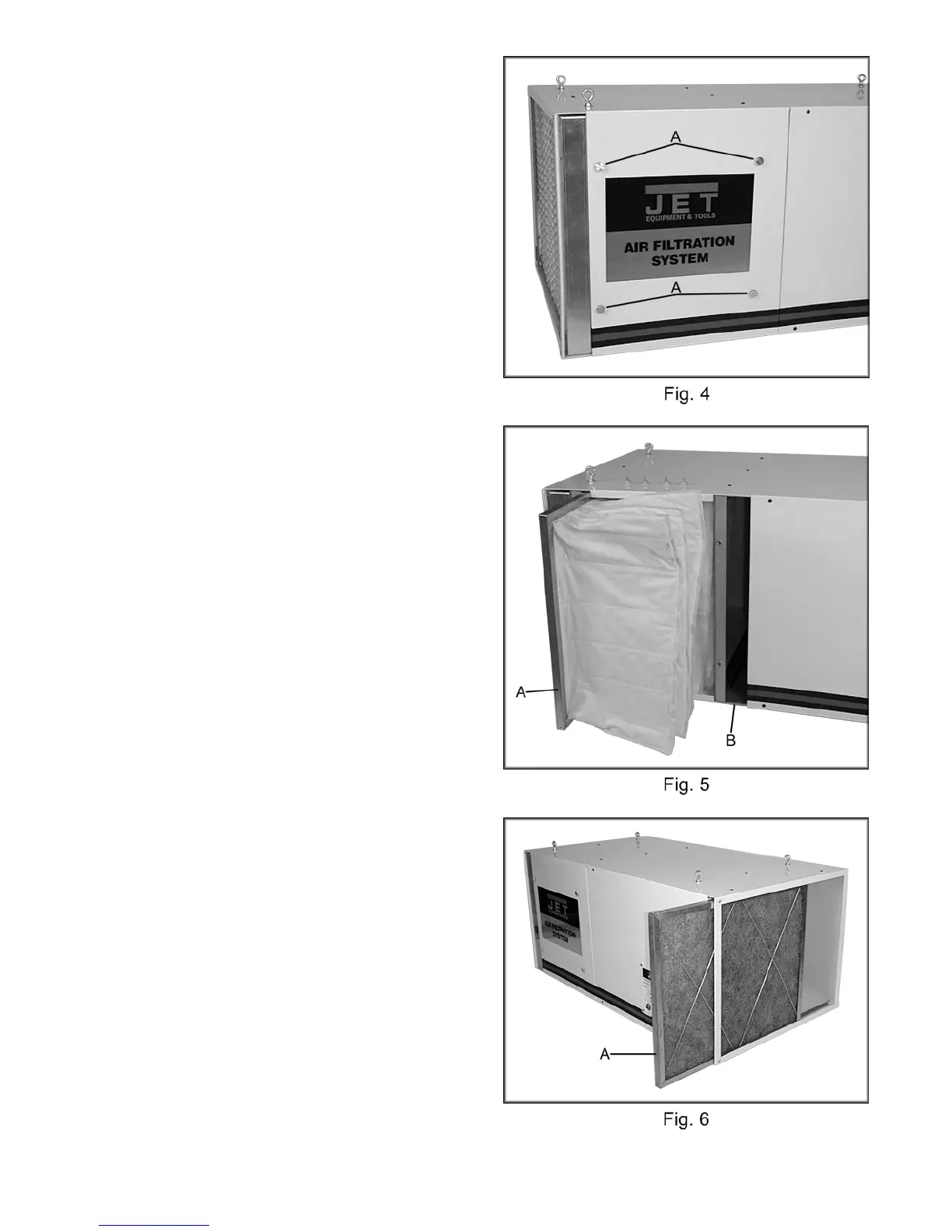

Inner Filter: you must remove the two bolts
(A, Fig. 4) that hold the cover in place. Remove
the cover. Remove the inner filter (A, Fig. 5)
from the side of the cabinet. Replace the cover
and four bolts.
Accessory Filter: an additional charcoal
filter, or electrostatic filter can be added to this
empty slot (B, Fig.5). Replace the cover and
four bolts
Diffuser: the diffuser (A, Fig. 6) should not
need any maintenance. You can remove from
the side of the cabinet.
The filters should be replaced depending on
the amount of usage and the environment of
your shop. Clogged filters will reduce the
amount of air circulation.
Order replacement filters using the below listed
stock numbers.
708722 Outer Filter (cardboard frame)
708724 Outer Filter (metal frame washable)
330025 Air Diffuser
708723 Inner Filter
708721 Charcoal Filter
