7

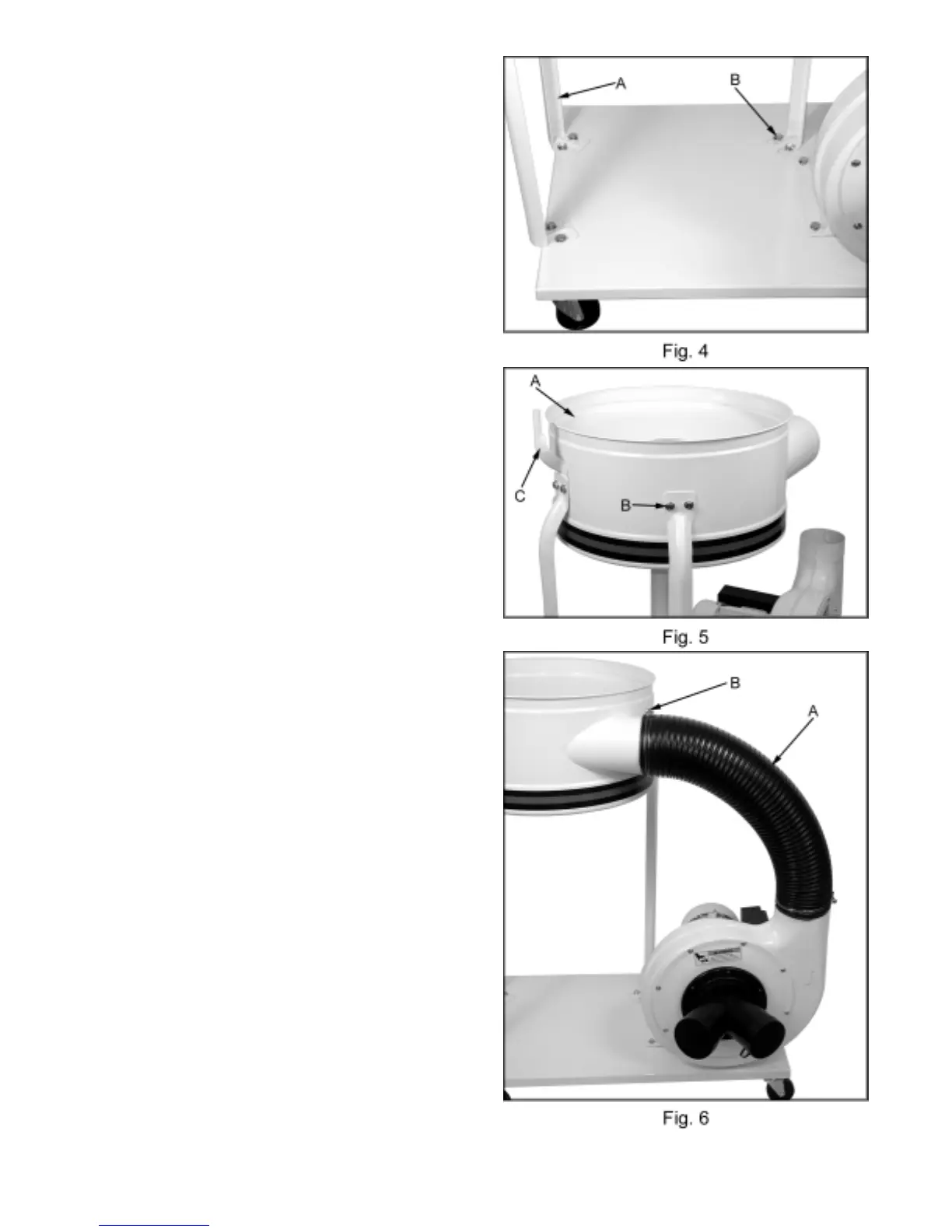

4. Attach three support brackets (A, Fig. 4) to
the base using six M8 x 16 hex cap bolts
and six M8 flat washers (B, Fig. 4). Hand
tighten only at this time.
5. Install the housing (A, Fig. 5) to two support
brackets using four M8 x 16 hex cap bolts,
eight M8 flat washers, and four M8 hex nuts
(B, Fig.5). Be sure hose opening faces fan
housing. Before attaching third support
bracket place the hanger bracket (C, Fig.5)
between the support bracket and the
housing. Tighten all nuts and bolts at this
time with a 1/2" or 13mm wrench.
6. Attach the hose (A, Fig. 6) between the fan
housing and the collector housing with two
clamps (B, Fig. 6). Tighten the clamps to
secure the hose.
