5

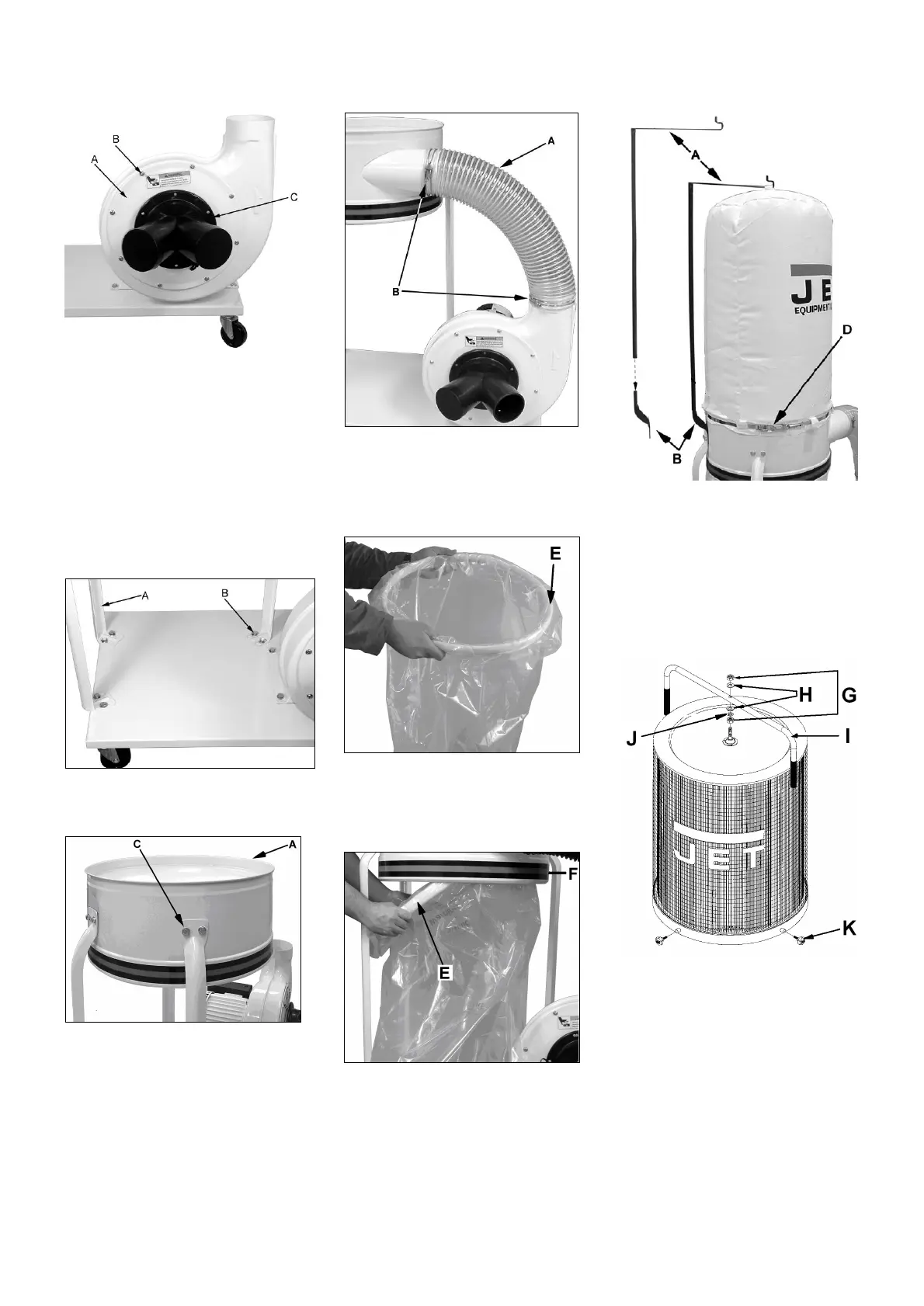

Fig 3
Press the inlet port (C) and secure
with provided screw.
Attention:
To reduce the risk of injury from
moving parts, always keep inlet port
covered with the caps provided, if they
are not connected to a hose.
Connector Housing:
Attach 3 support brackets (A, Fig 4) to
the base using 6 hex cap screws and
washers.
Fig 4
Install the housing (A, Fig 5) with 6
hex cap screws.
Fig 5
Hose:
Attach the hose (A, Fig 6) with 2
provided clamps (B).
Fig 6
Collector bag:
Fold the plastic bag over the top of the
snap ring (E, Fig 7).
Fig 7
Insert the snap ring (E) of the collector
bag into the bottom of the housing at
an angle. Pull down until it engages in
the grove (F, Fig 8)
Fig 8
Filter bag (DC-1100A):
Attach the bag support rods (A, B Fig
9).
Fig 9
Install the filter bag with retainer strap
(D).
Canister filter (DC-1100CK):
Mount the handle (I, Fig 10) with 2 hex
nuts (G), flat wasshers (H) and a lock
washer (J).
Fig 10
Mount the canister filter with 4 knobs
(K) on the collector housing.
5.2 Dust connection
The hose or ductwork you use to
connect the tool to the dust collector
must be grounded for avoiding
explosion.
(JET Dust Collector Grounding Kit,
Article Number: JW1053).
