JETStream 53905 - Page 25

25PI-121January 2020

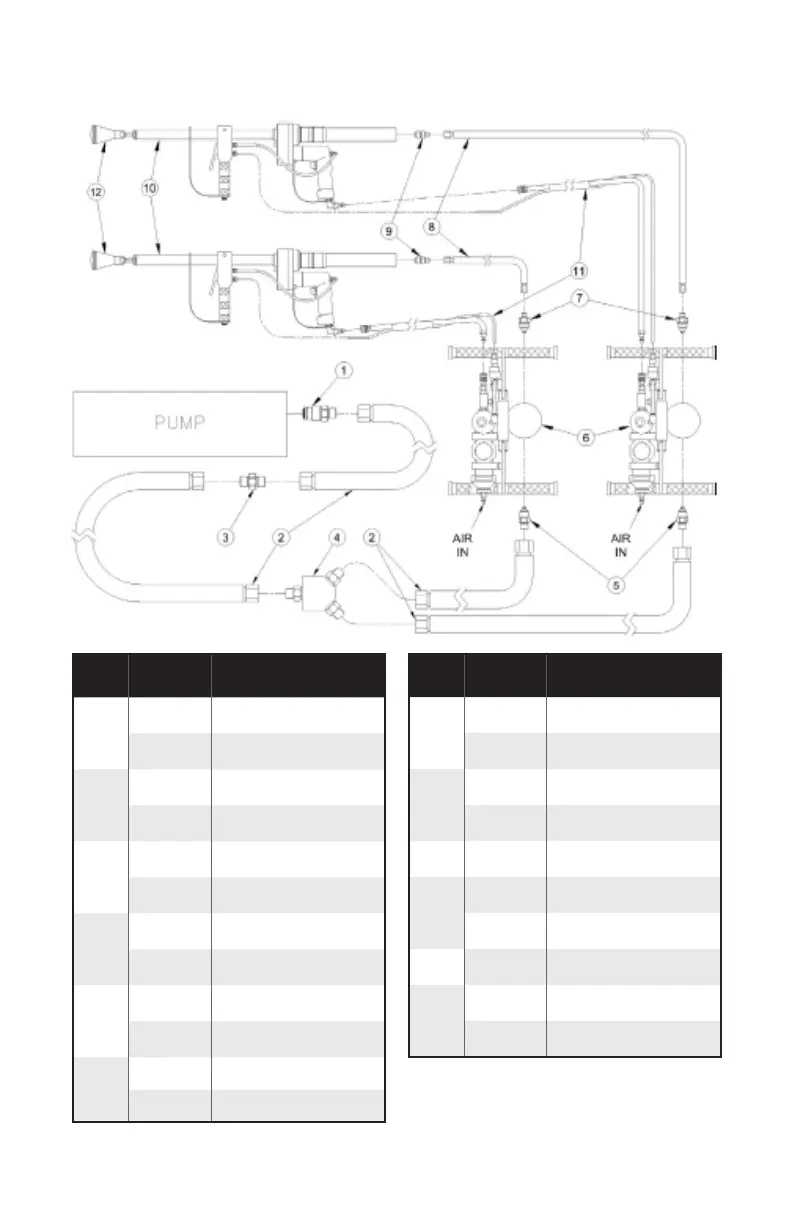

MULTIPLE GUN CONNECTION DIAGRAM
ITEM PART NO. DESCRIPTION
1
53672 Adapter, 7/8” Type M Male
53988 Adapter, 9/16” HP Male
2
1
27676-
XXX41411
Hose, XXX ft., 7/8” Type M
27676-
XXX33331
Hose, XXX ft., 9/16” HP Male
3
27528 Adapter, 7/8” Type M Male
27607 Coupling, 9/16” HP
4
54482 Y-Adapter, 7/8” Type M Male
28672 Y-Adapter, 9/16” HP Female
5
2
53570 Adapter, 7/8” Type M Male
53572 Adapter, 9/16” HP Male
6
53905 Multi-Mode Valve, Type M
54695 Multi-Mode Valve, HP
ITEM PART NO. DESCRIPTION
7
2
53571 Adapter, 9/16” Type M Male
54056 Adapter, 3/8” HP Female
8
27731-
02539393
Hose, 9/16” Type M Male
27731-
02532323
Hose, 3/8” HP
9
3
27530 Adapter, 9/16” Type M Male
10
66211 Tornado Gun, 36” Barrel
66210 Tornado Gun, 48” Barrel
11
2
28066 Air Control Hose
12
53970 Tornado Nozzle Assy, 3-Jet
53971 Tornado Nozzle Assy, 4-Jet
Note 1: When ordering hose, length must be specied
in feet. For example a fty-foot hose would be 27626-
5041411.
Note 2: Item included with Multi-Mode Tumble Box.
Note 3: Item included with Tornado Gun.
