Jetter JC-340 - Page 20

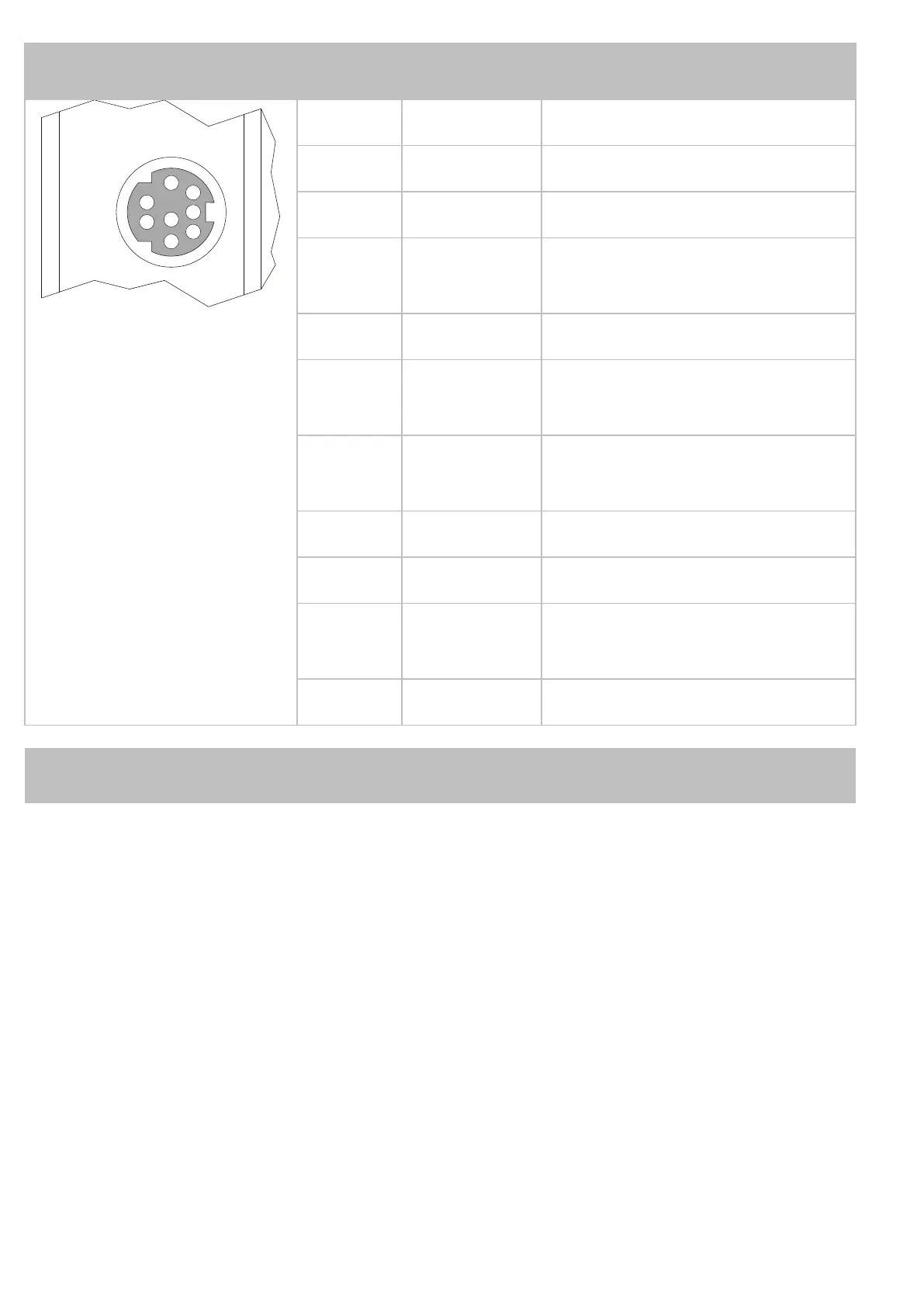

Connector X11 - Description
X11
SER
1
2
3
4
5
8
7
6
Pin
Signal
Description
1 RDA
RS-422, Rx inverted
2 GND
Reference potential
3 RDB
RS-422, Rx not
inverted
4 RxD
RS-232; Rx
5 SDB
RS-422, Tx not
inverted
RS-485, Rx/Tx not
inverted
6 DC 24 V
HMI supply voltage
7 SDA
RS-422, Tx inverted
RS-485, Rx/Tx
inverted
8 TxD
RS-232; Tx
X11 - Technical data
Connector type:
MiniDIN, 8-pin, shielded
Voltage for the HMI at X11.6:
It corresponds to the
voltage at X10.DC24V
Current for the HMI at X11.6:
0.5 A max.
