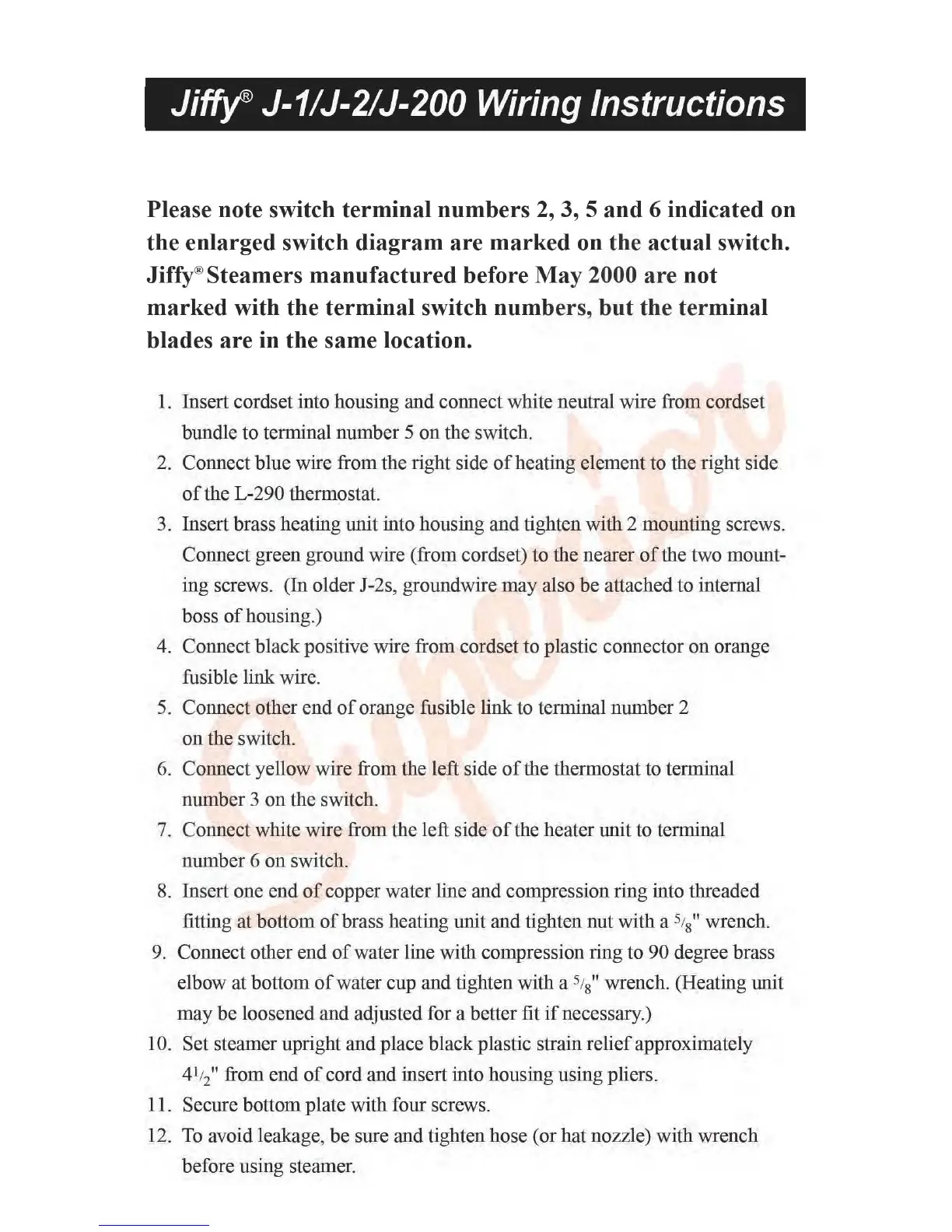

Jiffy®
J-1/J-2/J-200
Wiring
Instructions
Please note switch terminal numbers 2, 3, 5 and 6 indicated on
the enlarged switch diagram are marked on the actual switch.
Jiffy® Steamers manufactured before May
2000 are not
marked with the terminal switch numbers, but the terminal
blades are in the same location.
1.
Insert cordset into housing and connect white neutral wire from cordset
bundle to terminal number 5
on
the switch.
2. Connect blue wire from the right side
of
heating element to the right side
of
the L-290 thermostat.
3.
Insert brass heating unit into housing and tighten with 2 mounting screws.
Connect green ground wire (from cordset) to the nearer
of
the two mount-
ing screws.
(In
older J-2s, groundwire may also be attached to internal
boss
of
housing.)
4. Connect black positive wire from cordset to plastic connector on orange
fusible link wire.
5. Connect other end
of
orange fusible link to terminal number 2
on
the switch.
6.
Connect yellow wire from the left side
of
the thermostat to terminal
number 3 on the switch.
7. Connect white wire from the left side
of
the heater unit to terminal
number 6 on switch.
8.
Insert one end
of
copper water line and compression ring into threaded
fitting at bottom
of
brass heating unit and tighten nut with a 5;
8
" wrench.
9.
Connect other end
of
water line with compression ring to 90 degree brass
elbow at bottom
of
water cup and tighten with a 5;
8
" wrench. (Heating unit
may be loosened and adjusted for a better fit
if
necessary.)
10. Set steamer upright and place black plastic strain relief approximately
4
1
;
2
"
from end
of
cord and insert into housing using pliers.
11. Secure bottom plate with four screws.
12.
To
avoid leakage, be sure and tighten hose (or hat nozzle) with wrench
before using steamer.
