Jiffy PRO 4 - STX PRO Drill Assembly Parts List; Transmission Parts List

[8]

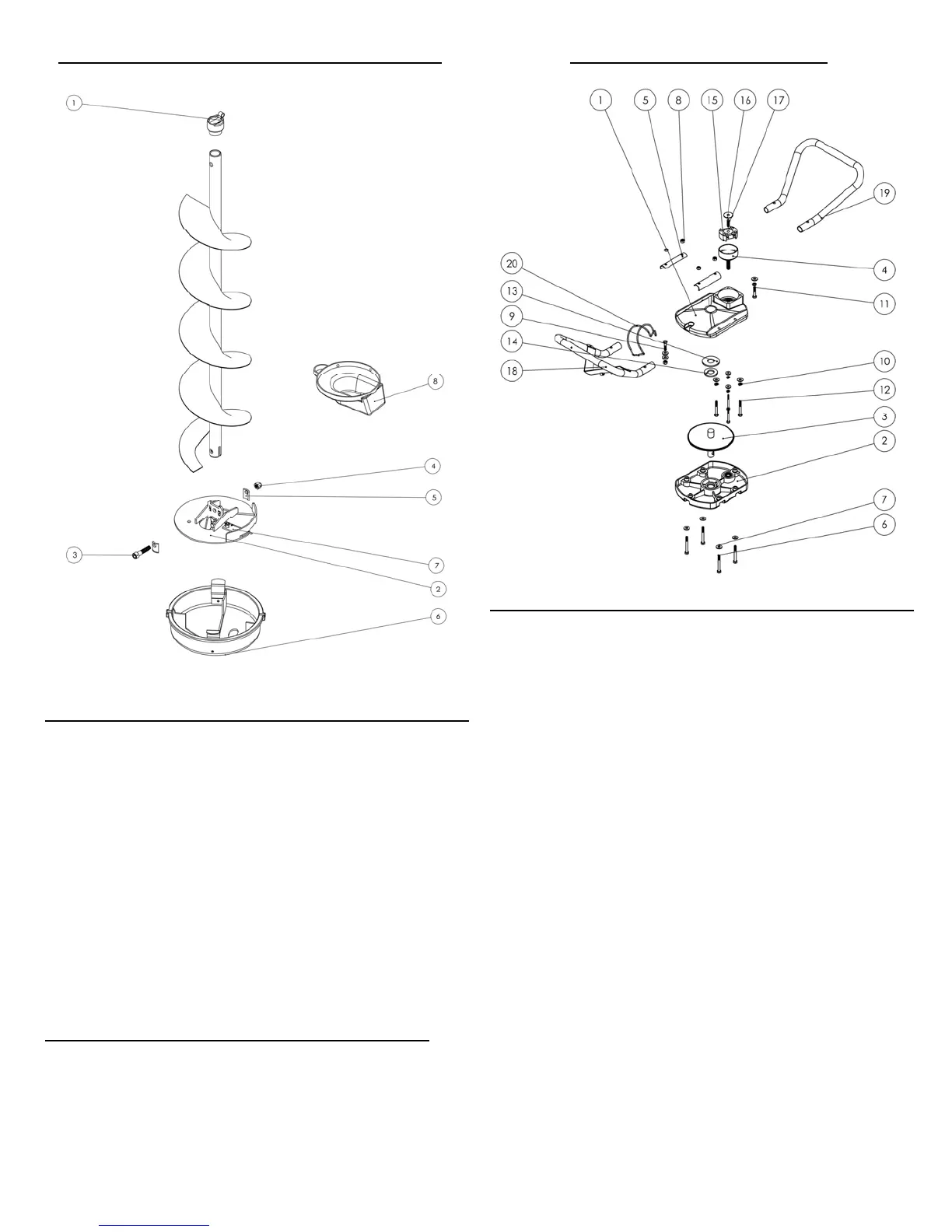

STX PRO™ DRILL ASSEMBLY PARTS LIST
REF. # PART # DESCRIPTION #USED
1 3996 EZ Connect™ Collar with Pin 1
2 3751 6” STX PRO™ Head Kit 1
“ 3752 8” STX PRO™ Head Kit 1
“ 3753 9” STX PRO™ Head Kit 1
“ 3754 10” STX PRO™ Head Kit 1
3 2259 Hex Capscrew 3/8”-16 x 1 ¾” 1
4 1938 Locknut, 3/8-16 x 1 ¾” 1
5 3503 D-Icer Head Support Clip 2
6 2120 8” Easy Snap™ Blade Protector 1
“ 2121 9” Easy Snap™ Blade Protector 1
“ 2205 10” Easy Snap™ Blade Protector 1
7
3586-STX 6” STX Blade Kit 1
“
3588-STX 8” STX Blade Kit 1
“
3589-STX 9” STX Blade Kit 1
“
3590-STX 10” STX Blade Kit 1
8 3301 6” Blade Protector 1
COMPLETE REPLACEMENT DRILL ASSEMBLY
3730-STX
6” STX PRO Drill
3731-PRO 8” STX PRO Drill
3732-PRO 9” STX PRO Drill
3733-PRO 10” STX PRO Drill
TRANSMISSION PARTS LIST
REF. # PART # DESCRIPTION #USED
1 3720 Upper Gear Case Assembly 1
2 3721 Lower Gear Case Assembly 1
3 3707 Main Gear & Shaft Assembly 1
4 3681 Clutch Drum & Pinion Assembly 1
5 3722 Handle Plate 2
6 3351 Hex Capscrew ¼-20 x 2 ½ 4
7 1689 Flat Washer ¼” 11
8 2336 Locknut ¼-20 7
9 3228 Hex Capscrew ¼-20 x 1 ¼ 1
10 1119 Lock Washer ¼” 5
11 1683 Hex Capscrew ¼-20 x 1 ½ 1
12 1996 Hex Capscrew ¼-20 x 2 ¼ 4
13 3634 Teflon® Washer 7/8” 1
14 1670 Flat Washer 7/8” 1
15 2383 Clutch Driver 1
16 2768 Clutch Washer 1
17 4049 Set Screw ¾-24 x 1 1
18 4426
Cushion Handle & Cradle Assy. (Throttle Side) 1
19 4424 Cushion Wing Handle 1
20 2627 Propane Tank Spring Clamp 1
