JL AUDIO 10W6v3-D4 3
SUBWOOFER RECOMMENDED SEALED ENCLOSURE
Volume
(net int.)
External Dimensions
(Width x Height x Depth)
F3
(Hz)
Fc
(Hz)
Qtc
10W6v3-D4
0.55 ft
3
15.57 liters
12.50 in. x 12.50 in. x 10.50 in.
318 mm x 318 mm x 267 mm
42.27 47.55 0.8099
All specifications are subject to change without notice.
!!
CAUTION
!!
Prolonged exposure to sound pressure levels in excess of 100dB can cause permanent hearing loss. This high-performance
speaker can exceed this level. Please exercise restraint in its operation in order to preserve your ability to enjoy its fidelity.
When installing a subwoofer in your vehicle, it is extremely important to secure the enclosure firmly. We recommend
bolting the enclosure through the metal of the floorpan or the frame of the vehicle with large diameter washers
for reinforcement. If an enclosure is not firmly attached, it can become a projectile in a collision. This is particularly
important in a hatchback, station wagon, sports utility vehicle, or van.
• The enclosure recommendations listed are external
dimensions which assume the use of 3/4" (19mm)
thick material. If you are using 5/8" (16mm) thick
material, subtract 1/4" (6.5mm) from each dimension.
Do not use any material with a thickness of less than
5/8" (16mm) as this may compromise the rigidity of
the enclosure.
• Enclosure volumes listed are net internal volumes!
Box volume displacement, port displacement and
brace displacement must be added to obtain the
final gross internal volume. All enclosure dimensions
listed have already taken this into account.
• When using two subwoofers in a common
enclosure simply double the required volume.
• We recommend the use of this speaker in a bi-amplified
system using high-quality satellite speakers and
amplifiers. We do not recommend the use of this
subwoofer with a passive crossover (coil), as this type of
device will adversely affect performance.

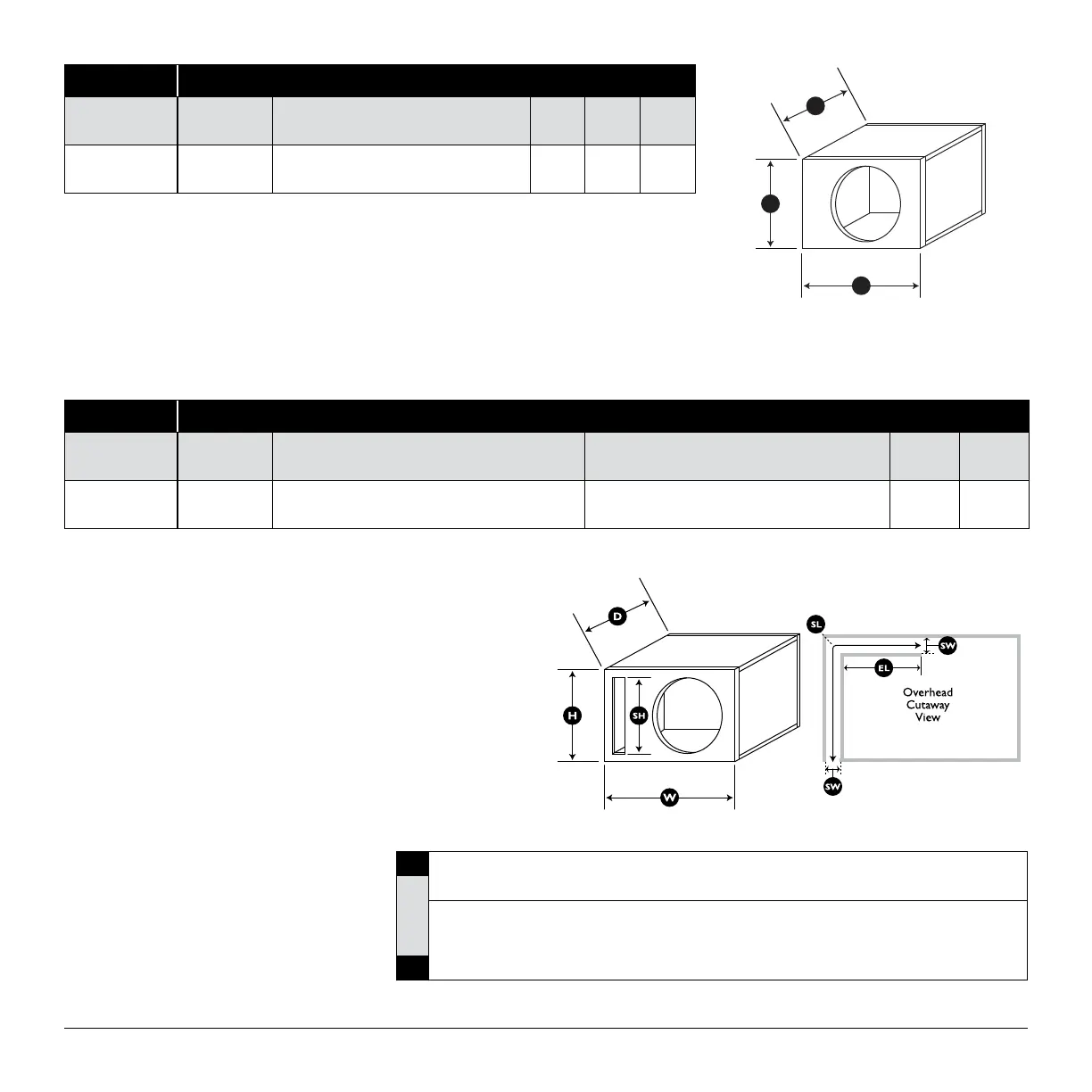

SUBWOOFER RECOMMENDED PORTED ENCLOSURE
Volume
(net int.)
Enclosure External Dimensions
(Width x Height x Depth)
Slot Port Internal Dimensions
(Slot Width x Slot Height x Slot Length)
Tune to:
(Hz)
F3
(Hz)
10W6v3-D4
0.75 ft
3
21.2 liters
21.50 in. x 12.375 in. x 11.125 in.
546 mm x 314 mm x 282 mm
1.375 in. x 10.875 in. x 30.40 in.
35 mm x 275 mm x 772 mm
39 33
“EL” (Port Extension Length): 16.5 in (419 mm)

JL Audio 10W6v3 Specifications

General

Brand	JL Audio
Model	10W6v3
Category	Subwoofer
Language	English
