2 JL AUDIO 12W3
SUBWOOFER: 12W3-D2 12W3-D4 12W3-D6
Free Air Resonance (Fs): 26.7 Hz 26.1Hz 26.7 Hz
Electrical “Q” (Qes): 0.506 0.475 0.523
Mechanical “Q” (Qms): 8.103 8.103 8.103
Total Speaker “Q” (Qts): 0.476 0.449 0.491
Equiv. Compliance (Vas): 3.28 ft
3
3.28 ft
3
3.28 ft
3
92.9 litres 92.9 litres 92.9 litres
One-way, Linear Excursion: 0.513 in 0.463 in 0.473 in
(Xmax)* 13.0 mm 11.8 mm 12.0 mm
Efficiency (1W/1m)**: 87.2 dB 87.2 dB 87.1 dB
Effective Piston Area (Sd): 81.5 in
2
81.5 in
2
81.5 in
2
0.0526 m
2
0.0526 m
2
0.0526 m
2
DC Resistance (Re)***: 3.70Ω 7.23Ω 10.38Ω
Nominal Impedance: Dual 2Ω Dual 4Ω Dual 6Ω
Power Handling (continuous): 250W 250W 250W
Mounting Depth: 6.563 in 6.563 in 6.563 in
167 mm 167 mm 167 mm
Mounting Hole Diameter: 11.0625 in 11.0625 in 11.0625 in
281 mm 281 mm 281 mm
Driver Displacement: 0.070 ft
3
0.070 ft
3
0.070 ft
3
2.0 litres 2.0 litres 2.0 litres
*Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied. **Efficiency (1W/1m) is not
an accurate indicator of
a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is “louder”. ***Re (DC resistance) is measured with
the voice coils in series, for parallel-wired specification divide Re by 4. All other specifications remain the same.

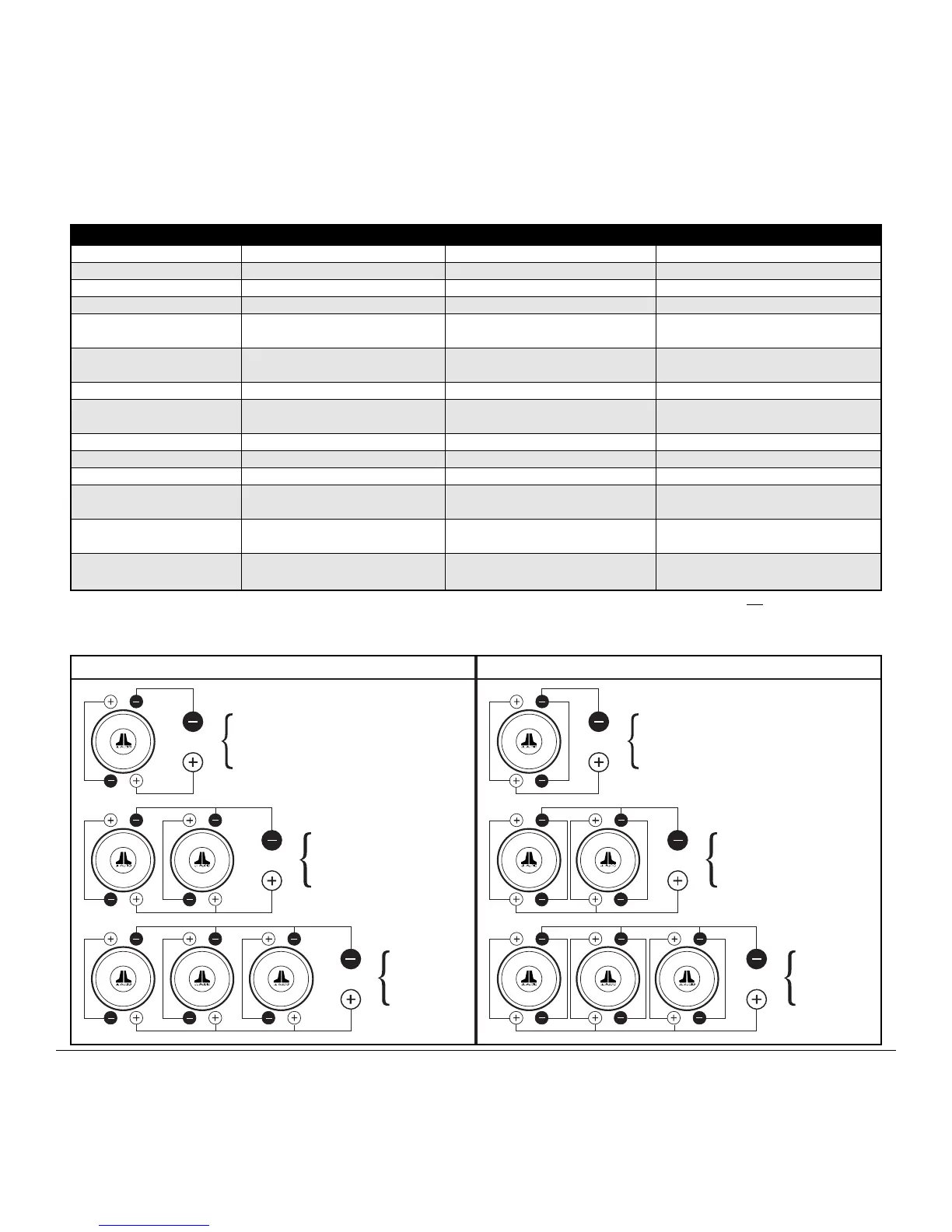

SUBWOOFER SPECIFICATIONS
