JL Audio C5-525 User Manual

2 | JL Audio - C5-525 Owner’s Manual
3
A
F
B
G
E
C

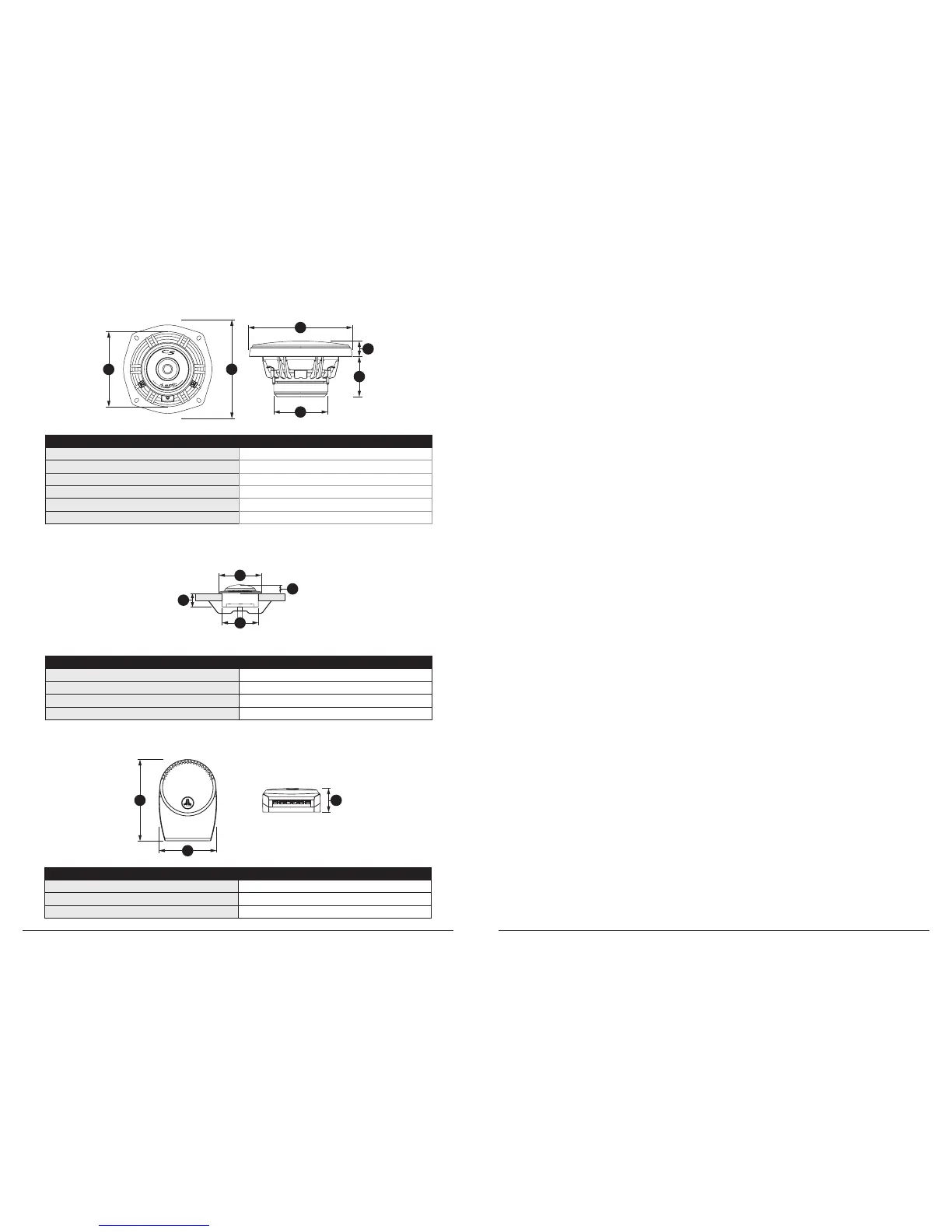

Woofer Physical Dimensions
Frame Outer Diameter (A) 5.80 in. / 147.3 mm
Grille Tray Outer Diameter (B) 6.02 in. / 152.9 mm
Magnet Outer Diameter (C) 3.15 in. / 80.0 mm
Frontal Grille Protrusion (D) 0.92 in. / 23.5 mm
Mounting Hole Diameter (E) 4.48 in. / 113.8 mm
Mounting Depth (F) 2.34 in. / 59.3 mm
B
C
A
D
C
B
A
Crossover Network Physical Dimensions
Height (A) 4.72 in. / 119.9 mm
Width (B) 3.36 in. / 85.3 mm
Depth (C) 1.44 in. / 36.6 mm
C5-525 SPECIFICATIONS
Woofers: Cast Alloy Frame, Patented Elevated Frame Cooling
(U.S. Patent #6,219,431 & #6,229,902), DMA-Optimized Motor
System, Mineral-Filled Polypropylene Cone, Butyl Rubber
Surround, 1-in. / 25 mm Voice Coil, Kapton® Former, Low-
Profile, Symmetrical Roll Spider, Ferrite Magnet
Tweeters: 0.75 in. / 19 mm Silk Soft Dome
RSR Variable-Angle Flush-Mount System, Ferrofluid Cooling
and Damping, Neodymium Magnet
Crossover Networks: 2-way network with 1st order
low-pass and 2nd order high-pass circuit, premium Mylar®
capacitors, air-core inductors, 4-position adjustable tweeter
output level, 3-position midrange presence control,
Polyswitch tweeter protection
Continuous Power Handling: 75 Watts (RMS Method)
Frequency Response: 48 Hz - 25 KHz (± 3 dB)
Efficiency @ 1W/1m: 89.5 dB @ 1W/1m
Nominal Impedance: 4 ohms
Included Components and Parts:
• Two C5-525cw 5.25-inch (130 mm) Woofers
• Two C5-075ct 0.75-inch (25 mm) Tweeters
• Two C5-525-XO Crossover Networks
• Two Flush-Mount Tweeter Fixtures
• Two Metal Spring Clips for Tweeter Fixtures
• Two Metal Woofer Grilles with ABS Grille Trays
• Two Self-Adhesive JL Audio Nameplates for Grilles
• Butyl Adhesive Putty for Woofer Grilles
• Twelve #8 x 1.25 inch (32 mm) Sheet Metal Screws
• Two 1-inch (25 mm) Machine Screws
• Eight Mounting Clips for Woofer Mounting
• Two 6.4 mm Female Crimpable Connectors
• Four 4.7 mm Female Crimpable Connectors
• Two 2.8 mm Female Crimpable Connectors
• Four 2.8 mm Male Crimpable Connectors
• Twelve Crimpable Spade Connectors
Tweeter Flush-Mount Fixture Physical Dimensions
Fixture Outer Diameter (A) 1.75 in. / 44.5 mm
Fixture Mounting Hole Diameter (B) 1.50 in. / 38.1 mm
Fixture Mounting Depth (C) 0.56 in. / 14.2 mm
Tweeter Frontal Protrusion (D) 0.36 in. / 9.1 mm
Due to ongoing product development, all specifications are subject to change without notice.

JL Audio C5-525 Specifications

General

Brand	JL Audio
Model	C5-525
Category	Speaker System
Language	English
