JM Concept XALIS Series User Manual

XALIS
PROGRAMMATION / PROGRAMMING
26

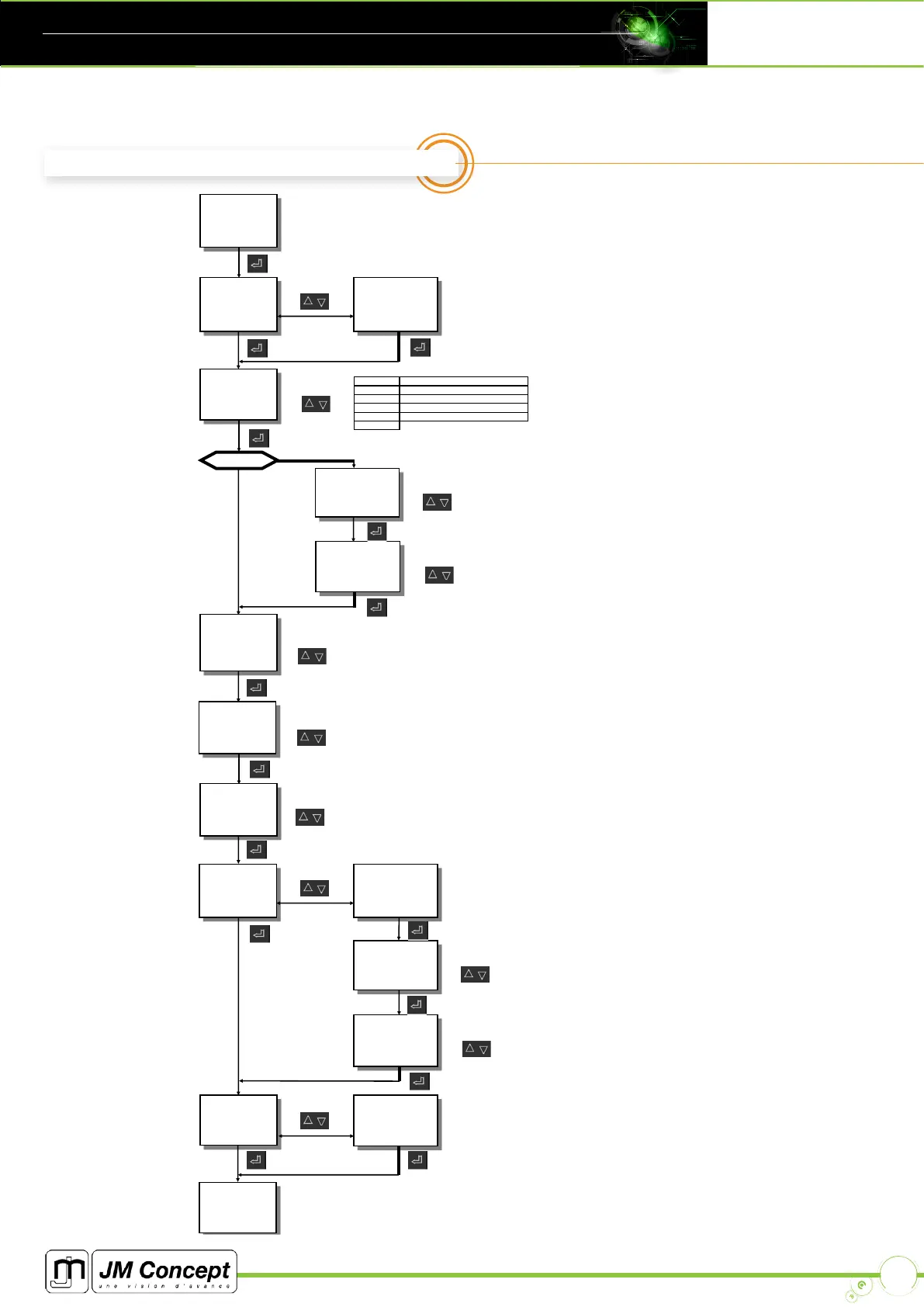

Menu sorties / Outputs menus
choix de la sortie analogique / analog output choice
0/20mA 2/10V calibre de sortie / output scale
x : index sortie analogique
4/20mA SPE. mA [ 0.0 / 22.0mA ]
analog output index
0/10mA SPE. V [ 0.0 / 11.0V ]
si SA1 / if SA1
0/5V SPE. V [ -11.0 / 11.0V ] si SA2 / if SA2
1/5V +/-10V si SA2 / if SA2
0/10V
oui / yes
non / no début d'échelle / low scale
0.0 / 22.0mA
0.0 / 11.0V si SA1 / if SA1
-11.0 / 11.0V si SA2 / if SA2
n d'échelle / high scale
0.0 / 22.0mA
0.0 / 11.0V si SA1 / if SA1
-11.0 / 11.0V si SA2 / if SA2
début d'achage / low display
-19999 / 99999
n d'achage / high display
-19999 / 99999
sécurité si rupture entrée / safety if sensor break
0.0 / 22.0mA
0.0 / 11.0V
-11.0 / 11.0V si SA2 ±10V / if SA2 ±10V
limitation de la sortie analogique / analog output limit
limite basse / low limit
0.0 / 22.0mA
0.0 / 11.0V
-11.0 / 11.0V si SA2 ±10V / if SA2 ±10V
limite haute / high limit
0.0 / 22.0mA
0.0 / 11.0V
-11.0 / 11.0V si SA2 ±10V / if SA2 ±10V
mémo sortie si rupture entrée / output memo if sensor break
ConF
OUTPUT
SCALE
Sx
4/20 mA
scales
SPE. ......
MEMo
Sx
NO
LiMit
Sx
NO
LiMit
Sx
YES
MEMo
Sx
YES
ConF
OUTPUT
LoU
Sx
High
Sx
15.0 mA
dISPL
min
0.00 Pa
dISPL
MX
100.00 Pa
SECU
Sx
5.0 mA
LoULM
Sx
HigLM
Sx
20.0 mA
SA
NUMBER 1
SA
NUMBER 2
