Horizontal stabilizer
14Ver. 1.0 28.03.2019 Written by F.W

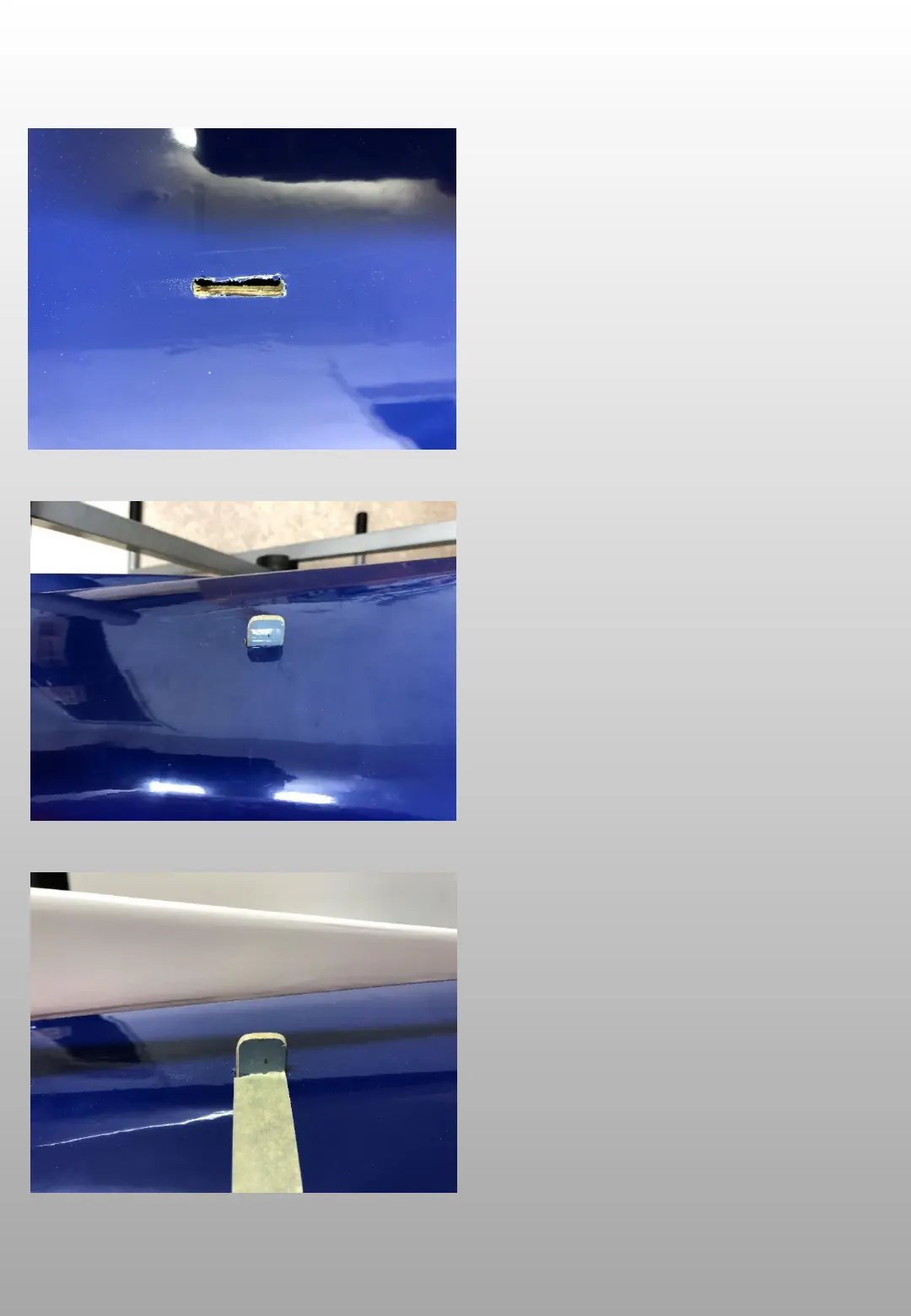

First I open the front pinhole to the
size of 3 x 15 mm. this area is reinforced
With plywood from inside.
the same you have to do on the stab side
I cut from GFK sheet (CFK or similar
Is also ok) a strip with 115 x 15 mm
After I glued it in to the fuselage
Mark the Position of the tongue
With a piece of tape and slide the
Stab on
The tongue should look out 15mm
