Wing
19Ver. 1.0 28.03.2019 Written by F.W
Notice :

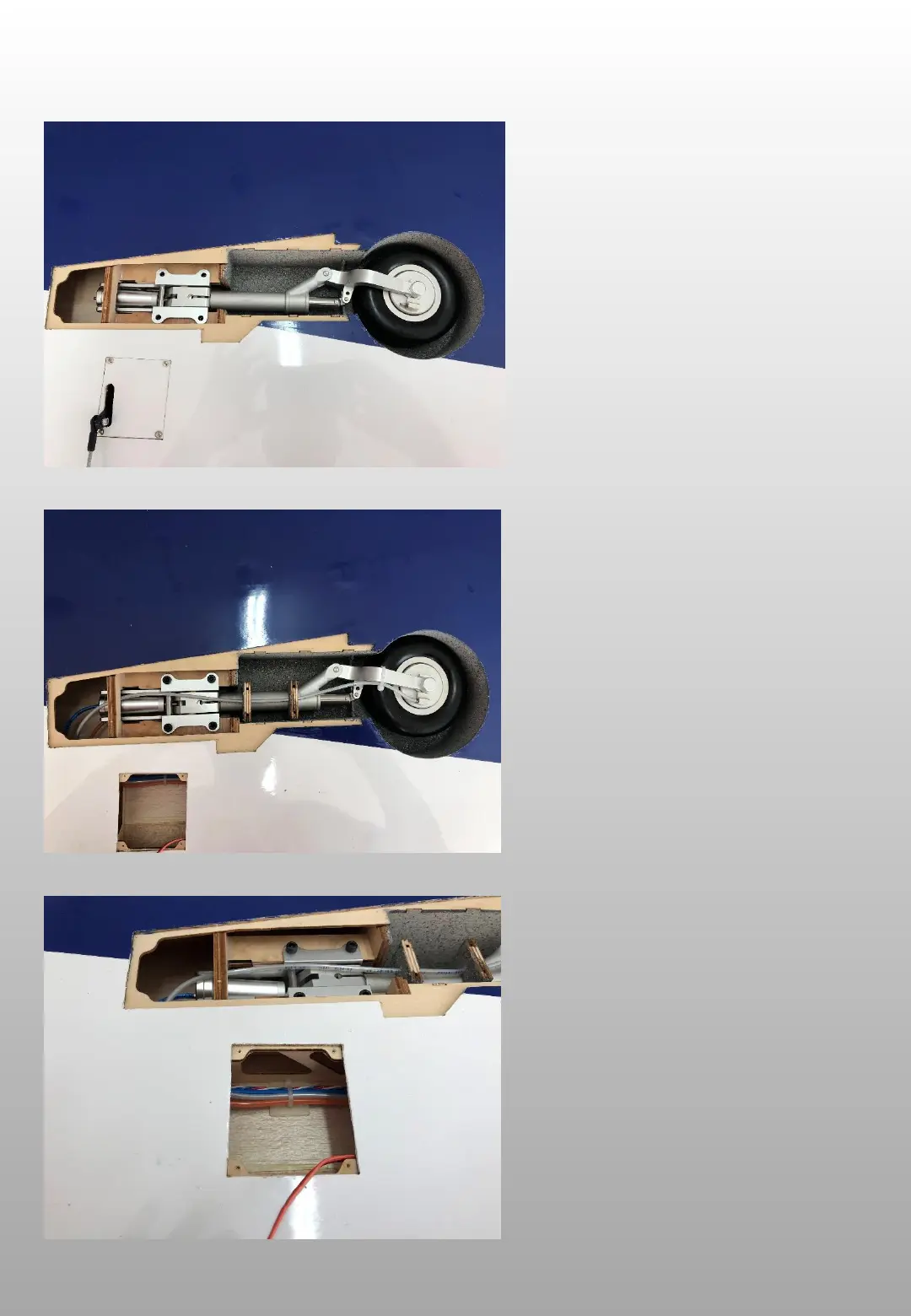

Make sure all screws from the
retract are tight by using Loctite .
Also check if you have the
pneumatic version the Cylinder
are not leaking.
Assemble the Strut with the Door
support as you can see
Also connect the pressure lines
(Cables)
Screw the Retract with the
M4x15 in by using Loctite.
The routing of the Pneumatic
Tubes or Cables which come from
the retract take the same route as
the Servo cable for the Ail and Flap.
To Next Page
