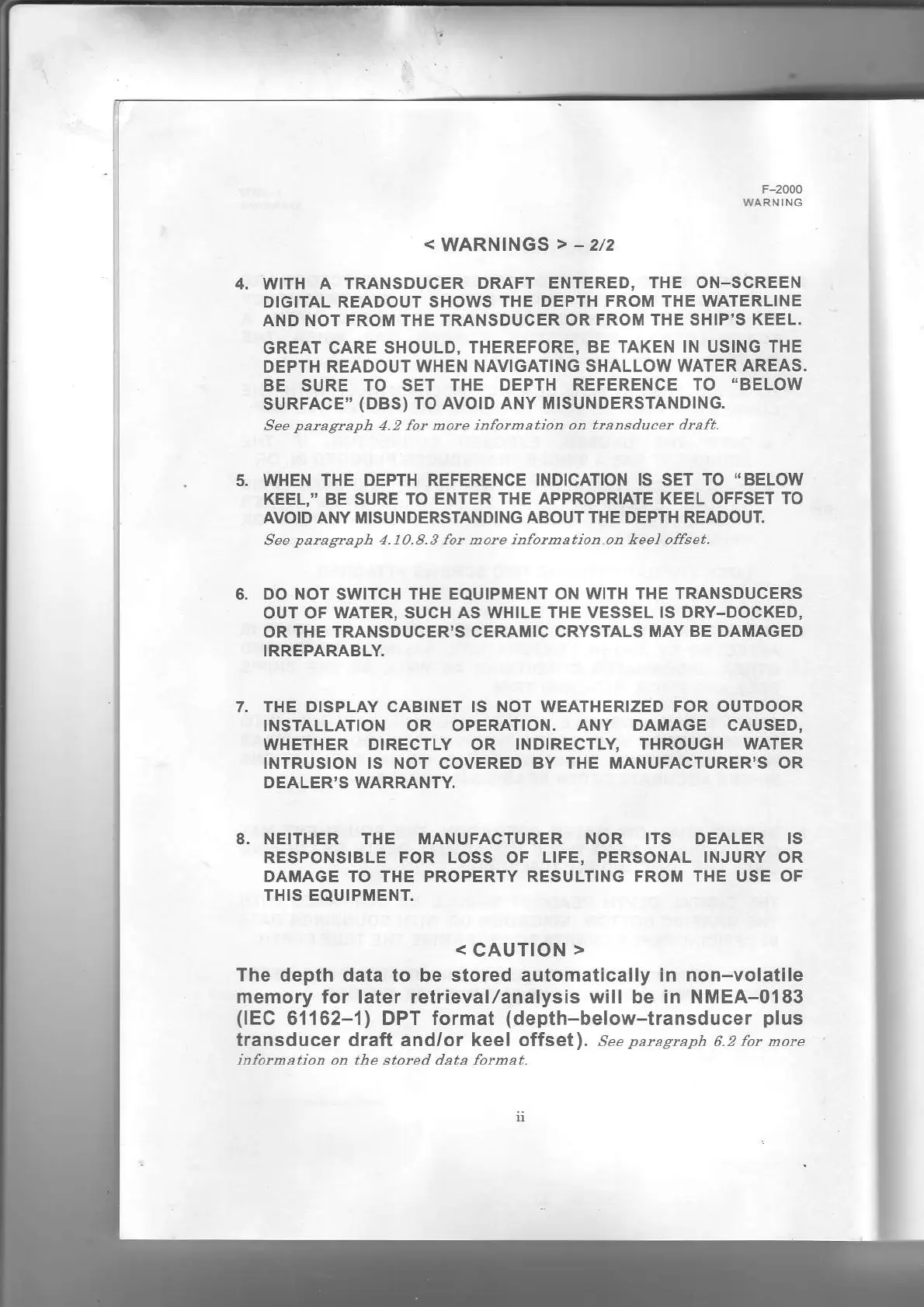

4.
F-2000
<WARNINGS>-2l2
WITH A
TRANSDUCER DRAFT ENTERED,
THE ON_SCREEN
DIGITAL READOUT SHOWS
THE DEPTH FROM THE WATERLINE
AND NOT FROM THE TRANSDUCER OR
FROM THE SHIP'S KEEL.
GREAT CARE
SHOULD, THEREFORE,
BE TAKEN IN USING THE
DEPTH READOUT
WHEN NAVIGATING SHALLOW WATER
AREAS.
BE SURE TO SET
THE DEPTH REFERENCE TO "SELOW
SURFACE"
(DBS}
TO AVOID ANY It/IISUNDERSTANDING.
See
paraeraph
4.2 for mote
inlormatio' on transddcer draft.
WHEN THE
DEPTH REFERENCE INDICATION IS SET
TO
"BELOW
KEEL," BE SURE TO ENTER
THE APPROPRIATE KEEL OFFSET TO
AVOID ANY MISUNDERSTANDING
ABOUT THE DEPTH READOUT.
See
paragnph
1.10.8.3 for more information on keel offset.
DO NOT SWITCH THE EOUIPMENT ON WITH THE
TRANSDUCERS
OUT OF
WATER, SUCH AS WHILE THE VESSEL IS DRY-DOCKED,
OR THE TRANSDUCER'S CERAMIC CRYSTALS
MAY BE DAI'AGED
IRREPARABLY.
THE DISPLAY CABINET IS NOT WEATHERIZED FOR OUTDOOR
INSTALLATION OR OPERATION.
ANY DAMAGE CAUSED,
WHETHER DIRECTLY OR INDIRECTLT
THROUGH WATER
INTRUSION IS NOT COVERED BY THE MANUFACTURER'S OR
DEALER'S WARRANTY
8. NEITHER THE MANUFACTURER NOR ITS DEALER
RESPONSIBLE
FOR
LOSS
OF
LIFE, PERSONAL INJURY
DAMAGE TO THE PROPERTY RESULTING FROM
?I{E
USE
THIS EOUIPMENT.
ls
OR
OF
<
CAUTION
>
The depth data to be stored automatically in non-volatile
memory for later retrieval/analys is will be in NMEA-0183
(lEC
61162-l) DPT format
(depth-below-transducer
plus
transducer draft and/or keel offset). see
parasraph
6.2 for norc
information on the stored data format.
