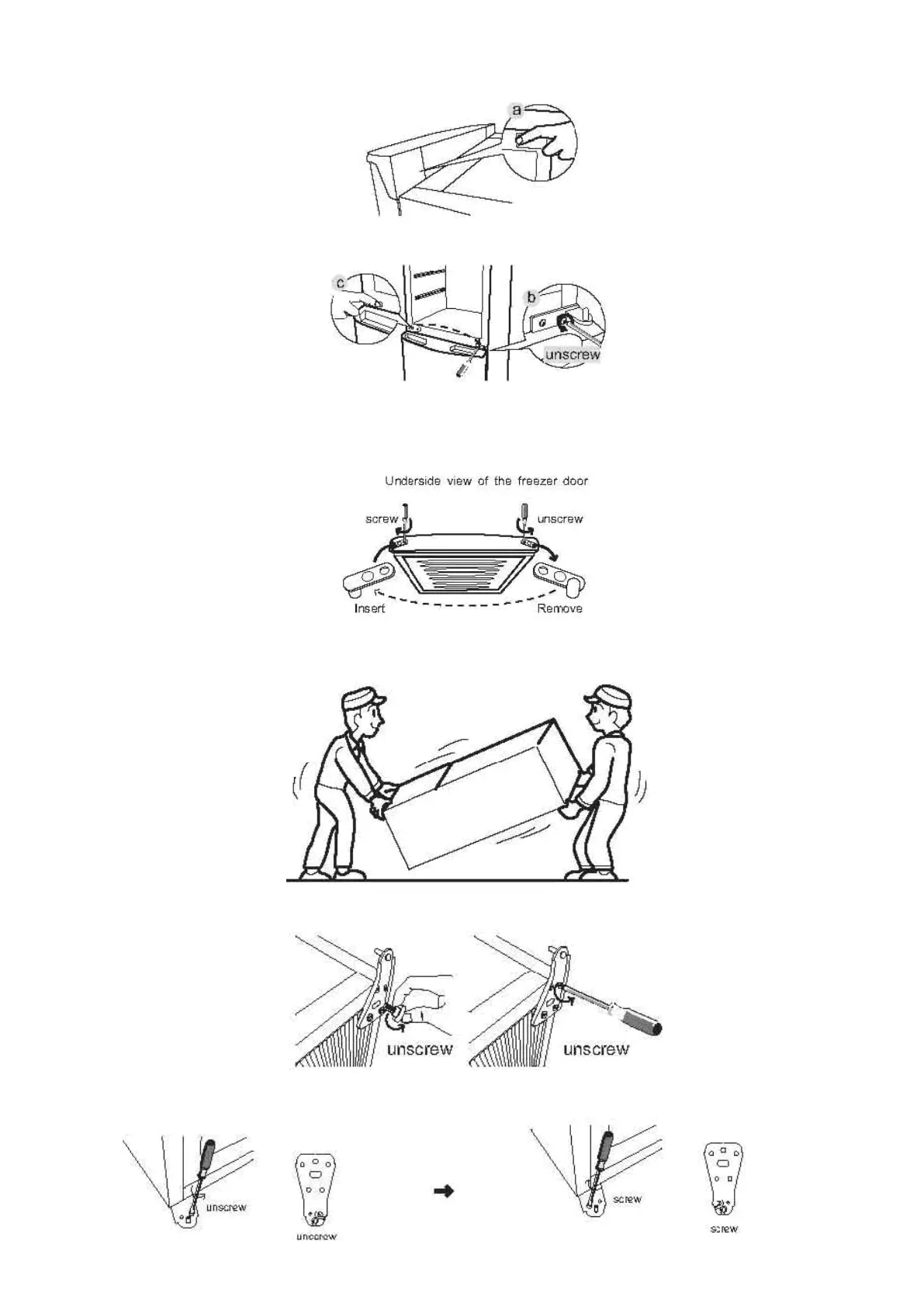

3. a. Lift the top hinge cover on the fridge door and move it to the side you want to install.
b. Take of the middle hinge by removing the screws. Lift the freezer door up and move it
away.
c. Remove the screws’ covers and place them to the opposite side.
4. Remove the bottom hinge adaptor from the freezer door. Move the adaptor to the opposite
side. Ensure it is securely located.
5. a. Tilt the fridge carefully. 2 people are required to tilt the fridge during the door reversing
process.
b. Remove the screws and bottom hinge. Then remove the adjustable feet from both side
and reattach them to the opposite side.
6. Remove the screw from the bottom hinge and refit it to the opposite side.
Place the freezer door back on.
