Jocel JC293ID - Page 71

A
B
6 0
C
D min=50
E min=50
F
G 1200
H
135°
min=50
1200

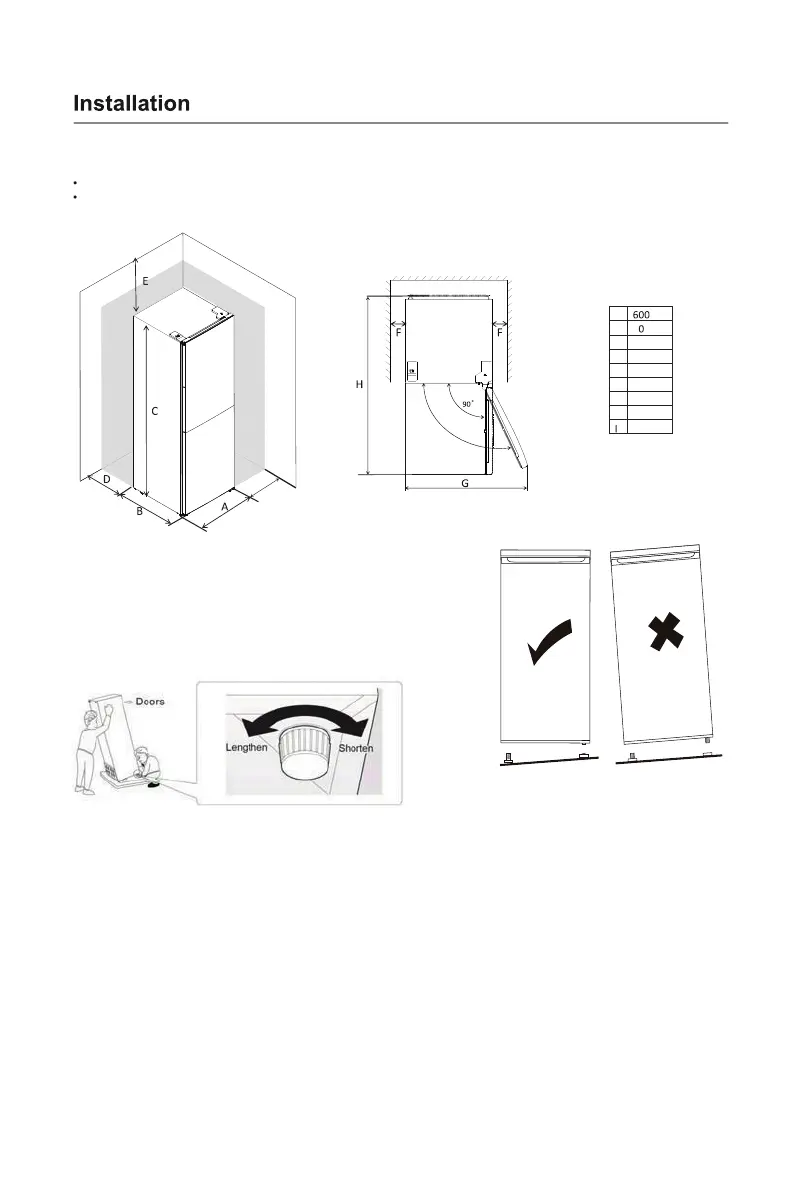

Space Requirement
Keep enough space of door open.
Keep at least 50mm gap at two sides and back.
Levelling the unit
To do this adjust the two levelling feet at front of the unit.
If the unit is not level, the doors and magnetic seal
alignments will not be covered properly.
F
I
17
1850
