6.4.7 Installation
6.4.7.1 Setting Batteries

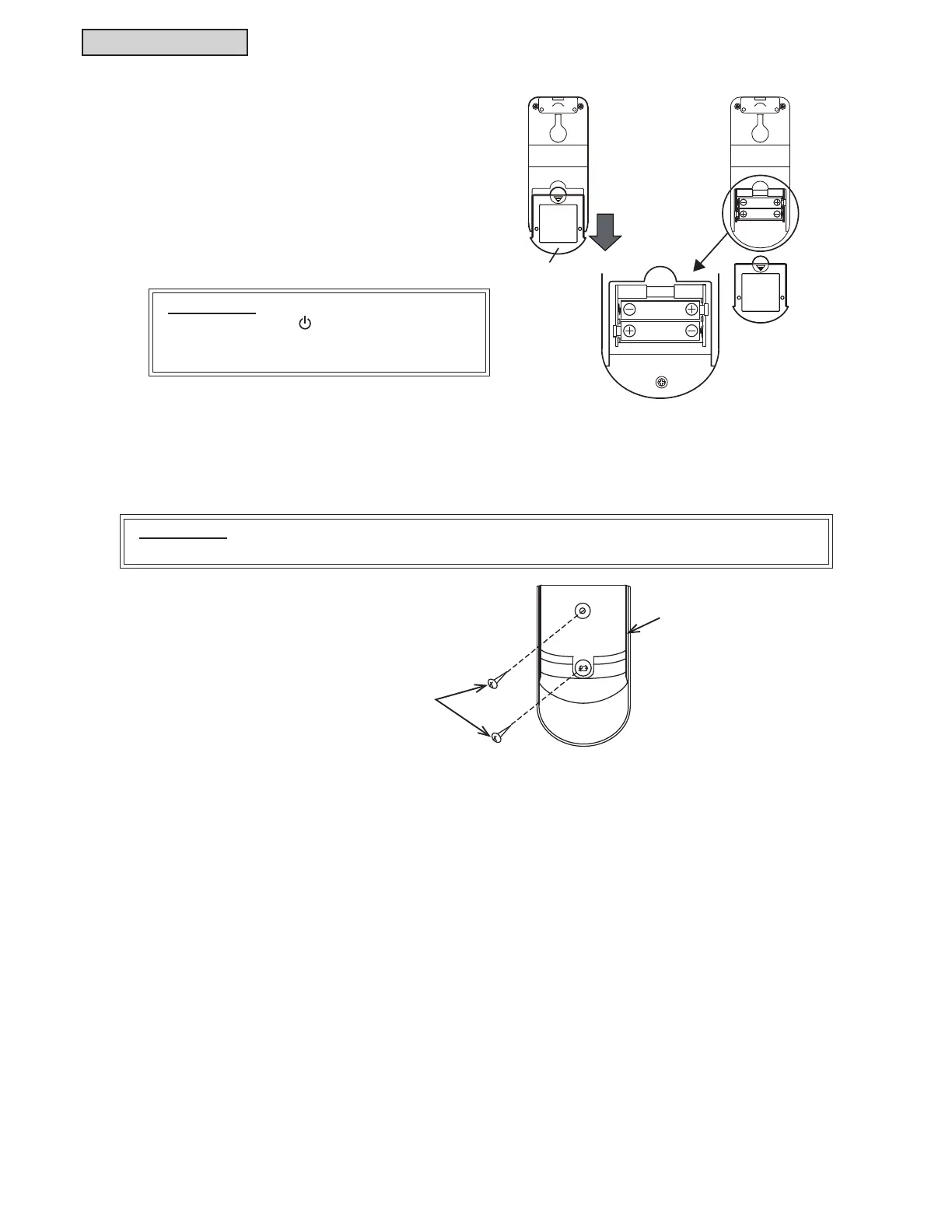

Set the batteries (AAA/1.5V × 2) for the controller as
follows.
(1) Remove the battery cover by sliding and pushing
the cover in the direction of the arrow as shown
LQWKH¿JXUHDWWKHULJKW
(2) Set the batteries. (Insert the batteries according
WRWKHPDUNVRIDQGRQWKHFDVH
Slide and push the
cover in the direction
of the arrow.
AAA Batteries
Battery Cover
ATTENTION:
Do not press the “
On” and “On Timer”
switches until the preparation for Test Run is
completed.
ATTENTION:
Keep a distance of more than 11-13/16 inches (30 cm) away from power wiring.
Screws
+ROGLQJ%UDFNHW
 ,QVWDOODWLRQRI+ROGLQJ%UDFNHW
:KHQLQVWDOOLQJWKHZLUHOHVVFRQWUROOHURQWRDZDOORUDSLOODUVHFXUHWKHKROGLQJEUDFNHWRQWRWKHZDOODQG
attach the controller where the receiver can receive the commands.
