58 Installation—Installing the FC-2000
One Tee-Tap will be allowed on Style Y indicating appliance circuits if a
10K End-of-Line Resistor (Part No. 71274) is used on each branch as
shown in Figure 41.

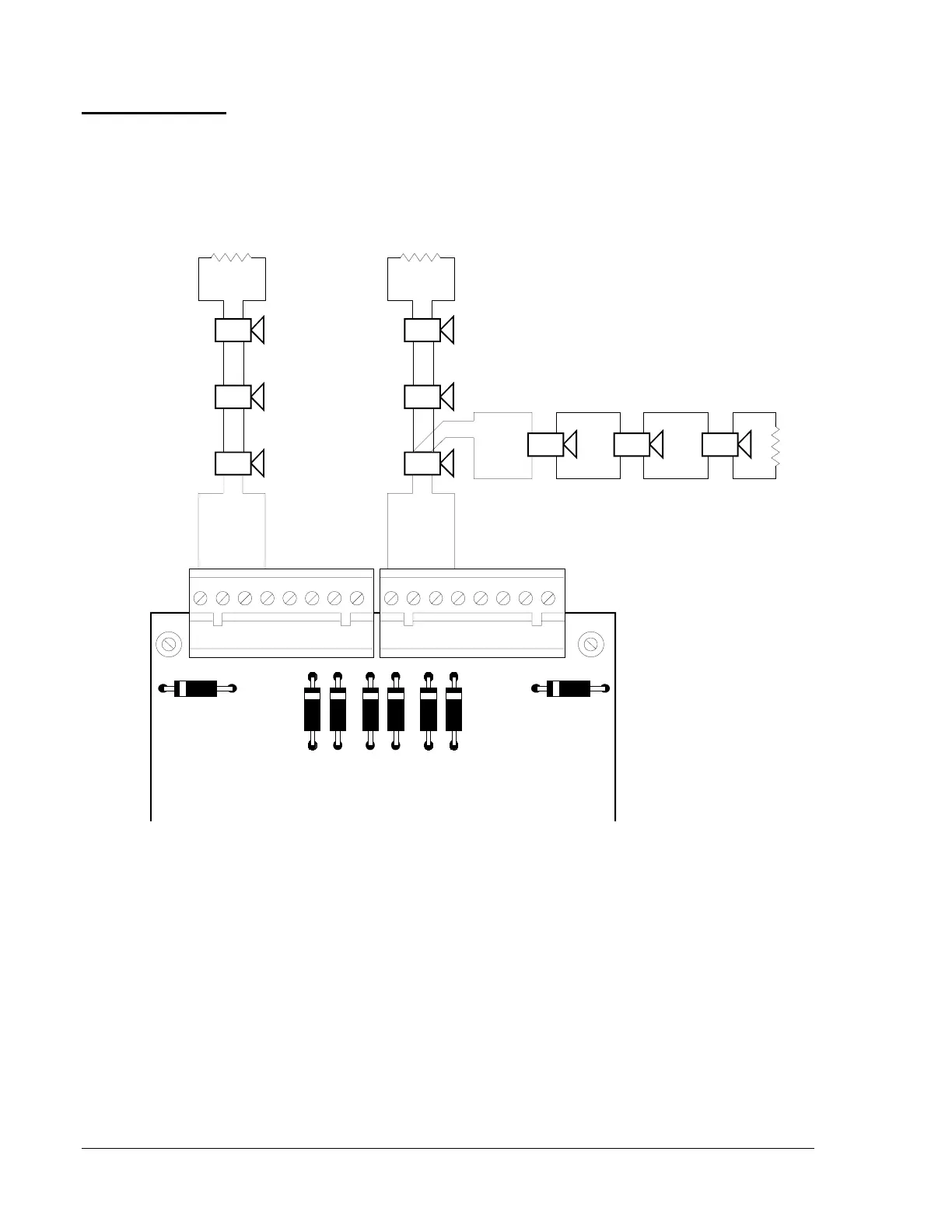

Figure 41: Tee-Tapping Indicating Appliance Circuits
Note: Factory Mutual (FM) recommends that this application not be
used.
Tee-Tapping
teetapp
4.7K ELR
Part No. 71252
ICE
Listed
10K ELR
Part No. 71254
Listed
10K ELR
Part No. 71274
Tee-Tapped Indicating
Appliance Circuit
Standard
Style Y
