JOHNSON CONTROLS
151
SECTION 6 - TECHNICAL DATA
FORM 201.23-NM2
ISSUE DATE: 3/9/2015
6
YCIV

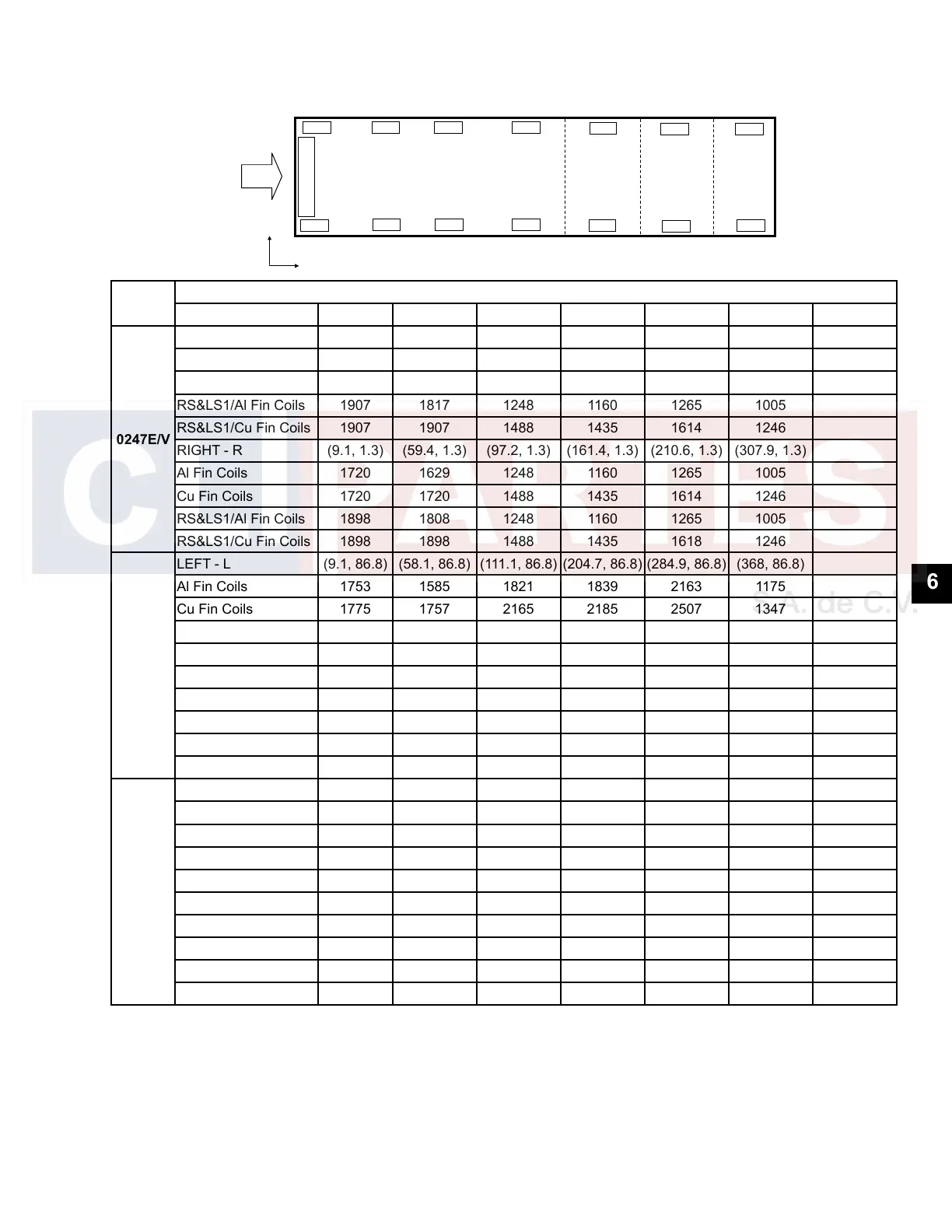

ISOLATOR LOCATIONS (X, Y) - IN. AND POINT LOADS - LBS
1 2 3 4 5 6 7
0247E/V
LEFT - L (9.1, 86.8) (59.4, 86.8) (97.2, 86.8) (161.4, 86.8) (210.6, 86.8) (307.9, 86.8)
Al Fin Coils 1728 1638 1248 1160 1265 1005
Cu Fin Coils 1728 1728 1488 1435 1614 1246
RS&LS1/Al Fin Coils 1907 1817 1248 1160 1265 1005
RS&LS1/Cu Fin Coils 1907 1907 1488 1435 1614 1246
RIGHT - R (9.1, 1.3) (59.4, 1.3) (97.2, 1.3) (161.4, 1.3) (210.6, 1.3) (307.9, 1.3)
Al Fin Coils 1720 1629 1248 1160 1265 1005
Cu Fin Coils 1720 1720 1488 1435 1614 1246
RS&LS1/Al Fin Coils 1898 1808 1248 1160 1265 1005
RS&LS1/Cu Fin Coils 1898 1898 1488 1435 1618 1246
0267E/V
LEFT - L (9.1, 86.8) (58.1, 86.8) (111.1, 86.8) (204.7, 86.8) (284.9, 86.8) (368, 86.8)
Al Fin Coils 1753 1585 1821 1839 2163 1175
Cu Fin Coils 1775 1757 2165 2185 2507 1347
RS&LS1/Al Fin Coils 1929 1761 1821 1839 2229 1396
RS&LS1/Cu Fin Coils 1951 1933 2165 2185 2573 1634
RIGHT - R (9.1, 1.3) (58.1, 1.3) (111.1, 1.3) (204.7, 1.3) (284.9, 1.3) (368, 1.3)
Al Fin Coils 1753 1596 2407 2493 2756 1179
Cu Fin Coils 1775 1768 2751 2840 3100 1351
RS&LS1/Al Fin Coils 1929 1773 2407 2493 2822 1466
RS&LS1/Cu Fin Coils 1951 1944 2751 2840 3166 1638
0287E/V
LEFT - L (9.1, 86.8) (59.4, 86.8) (109.4, 86.8) (185.4, 86.8) (284.4, 86.8) (358.5, 86.8) (411.9, 86.8)
Al Fin Coils 1753 1585 1847 1870 1574 1049 928
Cu Fin Coils 1775 1733 2132 2255 1960 1334 1047
RS&LS1/Al Fin Coils 1929 1761 1847 1870 1574 1226 1105
RS&LS1/Cu Fin Coils 1885 1909 2132 2255 1960 1510 1224
RIGHT - R (9.1, 1.3) (59.4, 1.3) (109.4, 1.3) (185.4, 1.3) (284.4, 1.3) (358.5, 1.3) (411.9, 1.3)
Al Fin Coils 1753 1596 2434 2524 2344 1120 928
Cu Fin Coils 1775 1715 2718 2910 2729 1404 1047
RS&LS1/Al Fin Coils 1929 1773 2434 2524 2344 1296 1105
RS&LS1/Cu Fin Coils 1951 1892 2718 2910 2729 1581 1224
NOTES:1. RS = Reduced Sound Option, LS = Low Sound Option
HIGH EFFICIENCY, ENGLISH (CONT'D)
