Johnson Controls York YCIV A Series User Manual

JOHNSON CONTROLS
152
FORM 201.23-NM2
ISSUE DATE: 3/9/2015
SECTION 6 - TECHNICAL DATA
CONTROL PANEL
L1
L2
R6
R1
L6
L5
L4
L3
R2
R3
R4
R5
R7
L7
x
y
YCIV

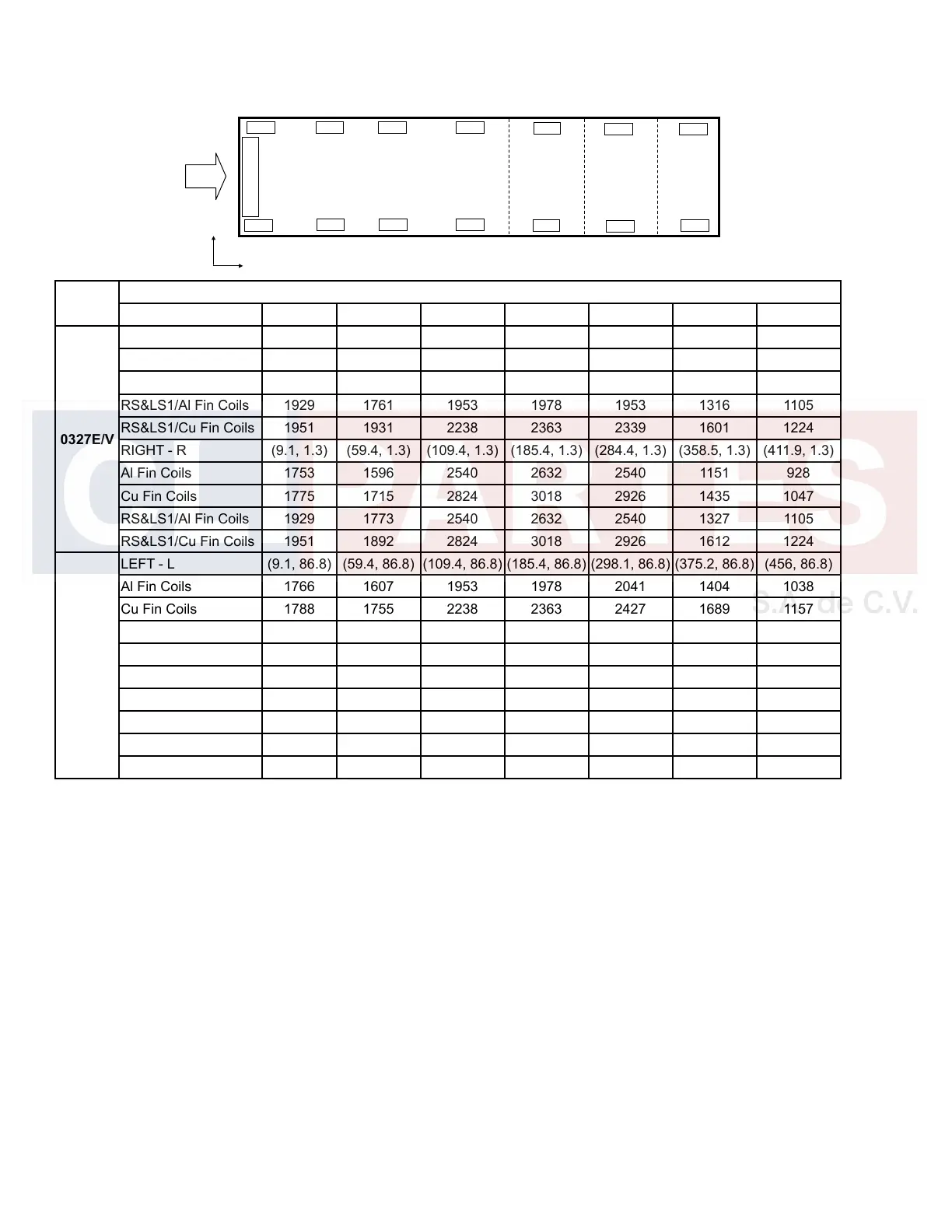

ISOLATOR LOCATIONS (X, Y) - IN. AND POINT LOADS - LBS
1 2 3 4 5 6 7
0327E/V
LEFT - L (9.1, 86.8) (59.4, 86.8) (109.4, 86.8) (185.4, 86.8) (284.4, 86.8) (358.5, 86.8) (411.9, 86.8)
Al Fin Coils 1753 1585 1953 1978 1953 1140 928
Cu Fin Coils 1775 1733 2238 2363 2339 1424 1047
RS&LS1/Al Fin Coils 1929 1761 1953 1978 1953 1316 1105
RS&LS1/Cu Fin Coils 1951 1931 2238 2363 2339 1601 1224
RIGHT - R (9.1, 1.3) (59.4, 1.3) (109.4, 1.3) (185.4, 1.3) (284.4, 1.3) (358.5, 1.3) (411.9, 1.3)
Al Fin Coils 1753 1596 2540 2632 2540 1151 928
Cu Fin Coils 1775 1715 2824 3018 2926 1435 1047
RS&LS1/Al Fin Coils 1929 1773 2540 2632 2540 1327 1105
RS&LS1/Cu Fin Coils 1951 1892 2824 3018 2926 1612 1224
0357E/V
LEFT - L (9.1, 86.8) (59.4, 86.8) (109.4, 86.8) (185.4, 86.8) (298.1, 86.8) (375.2, 86.8) (456, 86.8)
Al Fin Coils 1766 1607 1953 1978 2041 1404 1038
Cu Fin Coils 1788 1755 2238 2363 2427 1689 1157
RS&LS1/Al Fin Coils 1942 1784 1953 1978 2041 1581 1215
RS&LS1/Cu Fin Coils 1964 1931 2238 2363 2427 1865 1334
RIGHT - R (9.1, 1.3) (59.4, 1.3) (109.4, 1.3) (185.4, 1.3) (298.1, 1.3) (375.2, 1.3) (456, 1.3)
Al Fin Coils 1766 1618 2540 2632 2628 1415 1038
Cu Fin Coils 1788 1737 2824 3018 3014 1700 1157
RS&LS1/Al Fin Coils 1942 1795 2540 2632 2628 1592 1215
RS&LS1/Cu Fin Coils 1964 1914 2824 3018 3014 1876 1334
NOTES:1. RS = Reduced Sound Option, LS = Low Sound Option
HIGH EFFICIENCY, ENGLISH (CONT'D)
