Johnson Controls York YCIV A Series User Manual

JOHNSON CONTROLS
154
FORM 201.23-NM2
ISSUE DATE: 3/9/2015
SECTION 6 - TECHNICAL DATA
CONTROL PANEL
L1
L2
R6
R1
L6
L5
L4
L3
R2
R3
R4
R5
R7
L7
x
y
YCIV

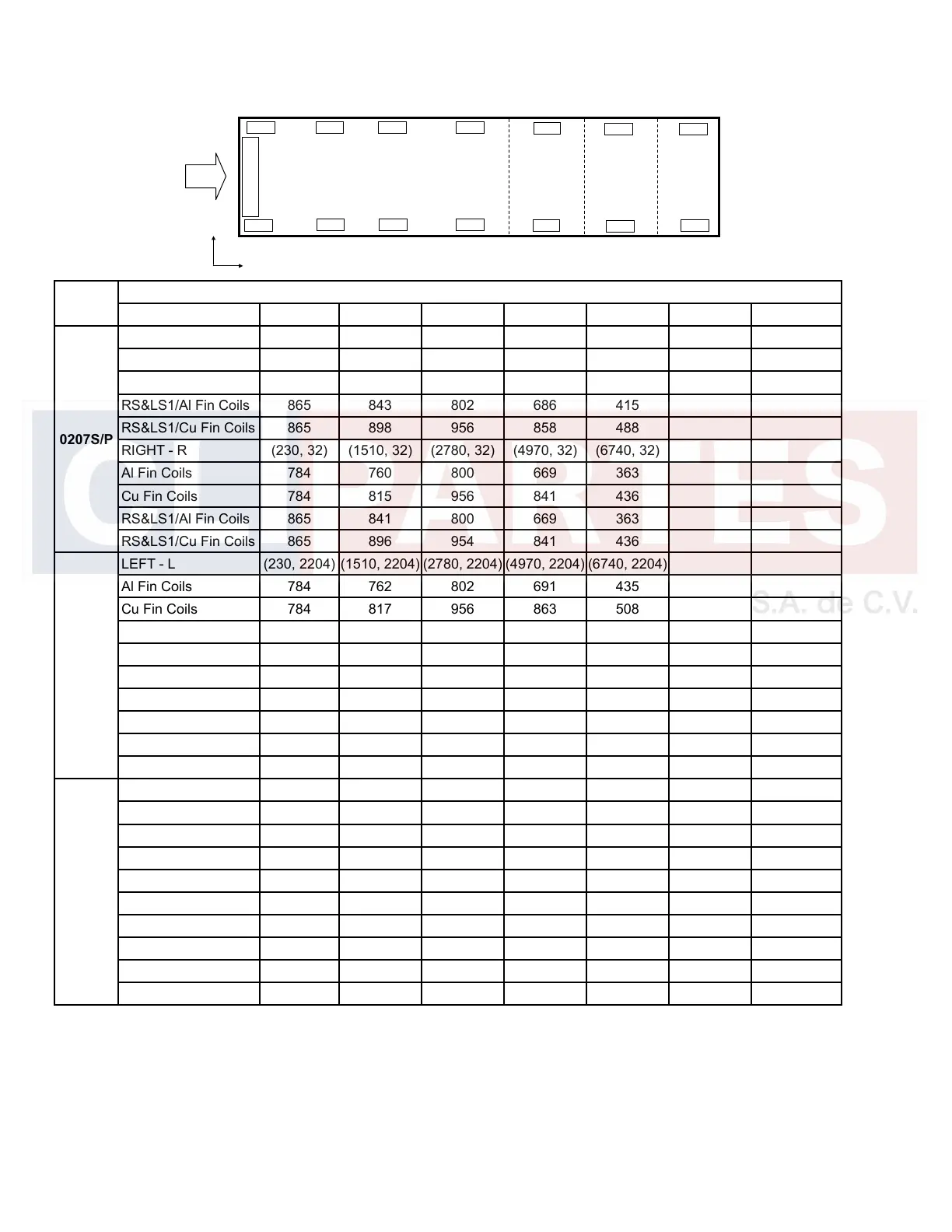

ISOLATOR LOCATIONS (X, Y) - MM. AND POINT LOADS - KG
1 2 3 4 5 6 7
0207S/P
LEFT - L (230, 2204) (1510, 2204) (2780, 2204) (4970, 2204) (6740, 2204)
Al Fin Coils 784 762 802 686 415
Cu Fin Coils 784 817 956 858 488
RS&LS1/Al Fin Coils 865 843 802 686 415
RS&LS1/Cu Fin Coils 865 898 956 858 488
RIGHT - R (230, 32) (1510, 32) (2780, 32) (4970, 32) (6740, 32)
Al Fin Coils 784 760 800 669 363
Cu Fin Coils 784 815 956 841 436
RS&LS1/Al Fin Coils 865 841 800 669 363
RS&LS1/Cu Fin Coils 865 896 954 841 436
0277S/P
LEFT - L (230, 2204) (1510, 2204) (2780, 2204) (4970, 2204) (6740, 2204)
Al Fin Coils 784 762 802 691 435
Cu Fin Coils 784 817 956 863 508
RS&LS1/Al Fin Coils 865 843 802 691 435
RS&LS1/Cu Fin Coils 865 898 956 863 508
RIGHT - R (230, 32) (1510, 32) (2780, 32) (4970, 32) (6740, 32)
Al Fin Coils 784 760 800 689 433
Cu Fin Coils 784 815 954 861 506
RS&LS1/Al Fin Coils 865 841 800 689 433
RS&LS1/Cu Fin Coils 865 896 954 861 506
0247S/P
LEFT - L (230, 2204) (1510, 2204) (2470, 2204) (4100, 2204) (5350, 2204) (1820, 2204)
Al Fin Coils 784 743 566 526 572 435
Cu Fin Coils 784 784 675 651 730 544
RS&LS1/Al Fin Coils 865 824 566 526 572 435
RS&LS1/Cu Fin Coils 865 865 675 651 730 544
RIGHT - R (230, 32) (1510, 32) (2470, 32) (4100, 32) (5350, 32) (7820, 32)
Al Fin Coils 780 737 562 523 561 433
Cu Fin Coils 780 778 671 648 719 542
RS&LS1/Al Fin Coils 861 818 562 523 561 433
RS&LS1/Cu Fin Coils 861 859 671 648 721 542
NOTES:1. RS = Reduced Sound Option, LS = Low Sound Option
STANDARD EFFICIENCY, SI (CONT'D)
