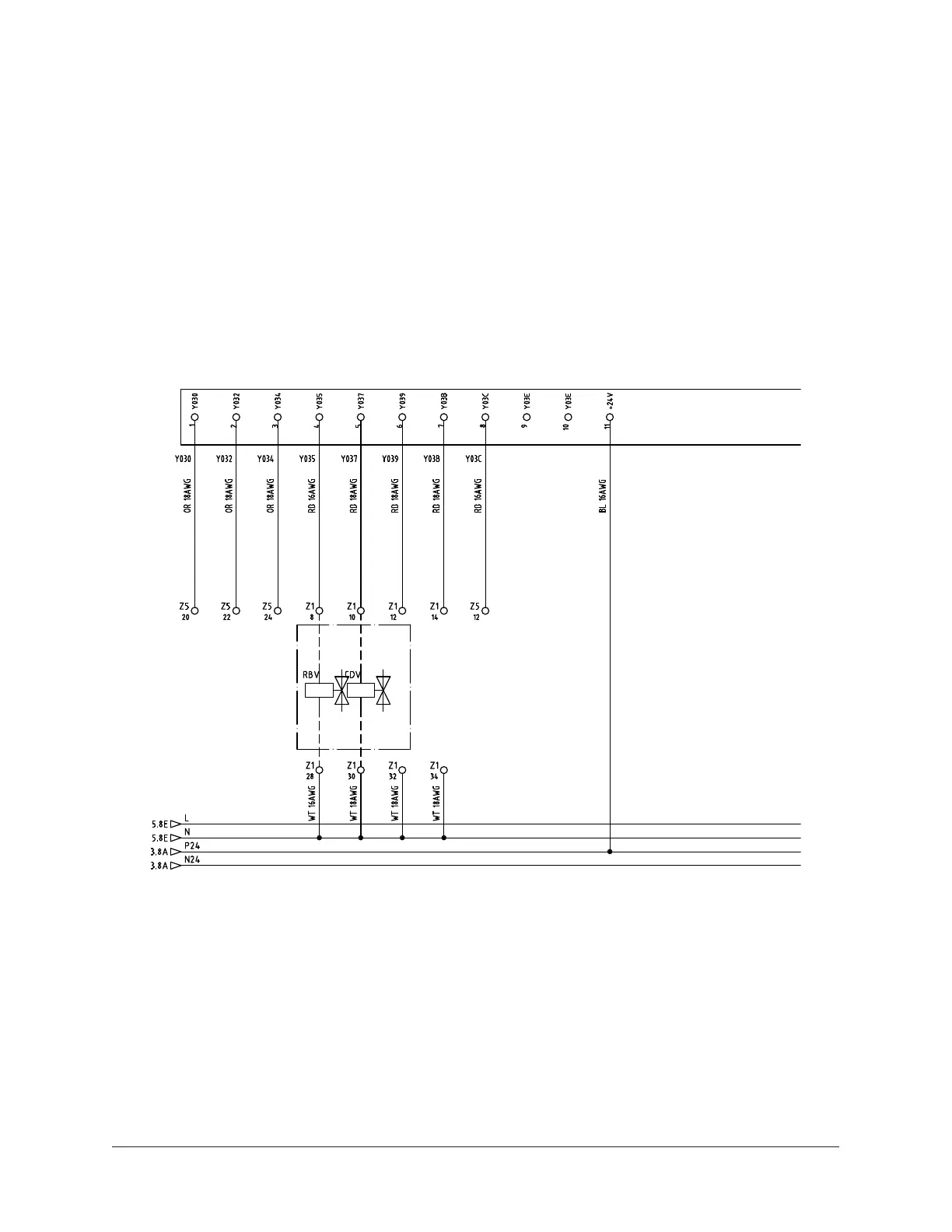

Figure 26: PLC output wiring
Combustion
Cooling/heating
Cooling water temperature
abnormal
Refrigerant blow
solenoid valve
Condensate drain
solenoid valve
(steam fired only)
(Spare)
(Spare)
WS burner reset
(Spare)
Relay
output
TB1B
PLC
LD29590
YHAU-C Single Effect Steam-Fired Absorption Chiller64
