End of link

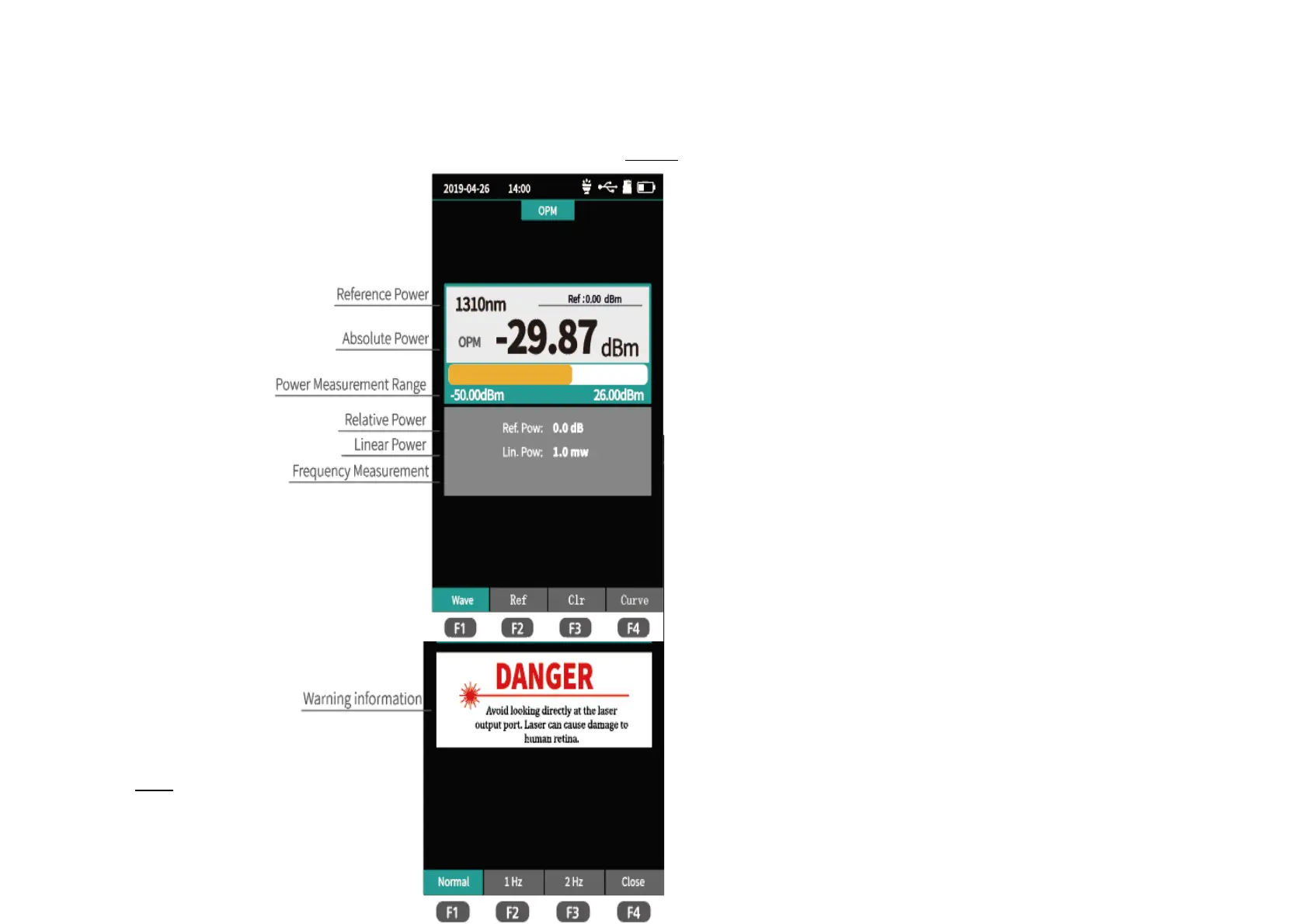

OPM
This function is used to test the power of optical signal and insertion loss of various
devices and optoelectronic components. It can identify and measure the
frequency of 270/330/1k/2kHz frequency optical signal.
F1: Switching wavelength
F2: Setting Reference Power F3:Zero Reference Power
F4: Enter the Calibration Mode
Absolute power,relative power and linear power are converted as follows:
=10lg
/1mw
=
-
VFL
Visible red light (650 nm) is injected into the optical fiber, and the position of the
