focus the image.The first time you use the microscope ,it to focus the image.The first time you use the
microscope ,it may take a little longer to find the image .Once you find the image ,very little re-focusing is
necessary if the connector is properly loaded.
4. Once you can visualize the connector ferrule ,you can evaluate it for polish quality,cleave quality ,and
cleanliness optionally,you can hold the opposite end of a cable to the Backlight window to give further
contrast to the core .Check with the manufacturer of your connector for further instructions.
Changing the Lamp
1, This microscope utilizes a white LED light source .The LED has a stated lamp life of over 100,000
hours .Therefore ,you should never have to change the lamp .if you have problems with illumination,please
call your sales person to arrange for repair.

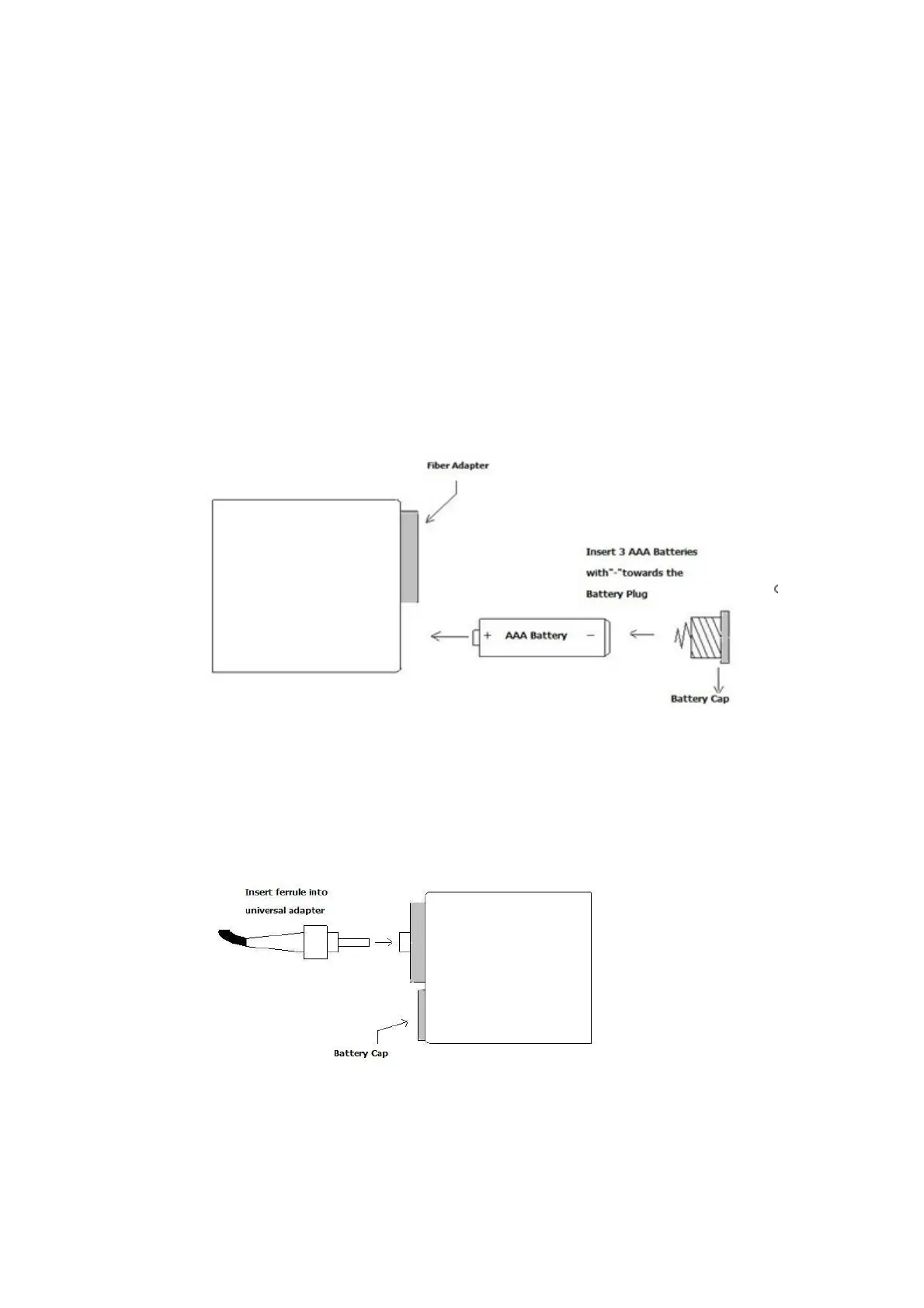

Figure 2
Figure 3
3
