Jonsered B2126 Spare Parts

545164335
3/11/11
Replaces
545164335 - 6/25/10
Page:

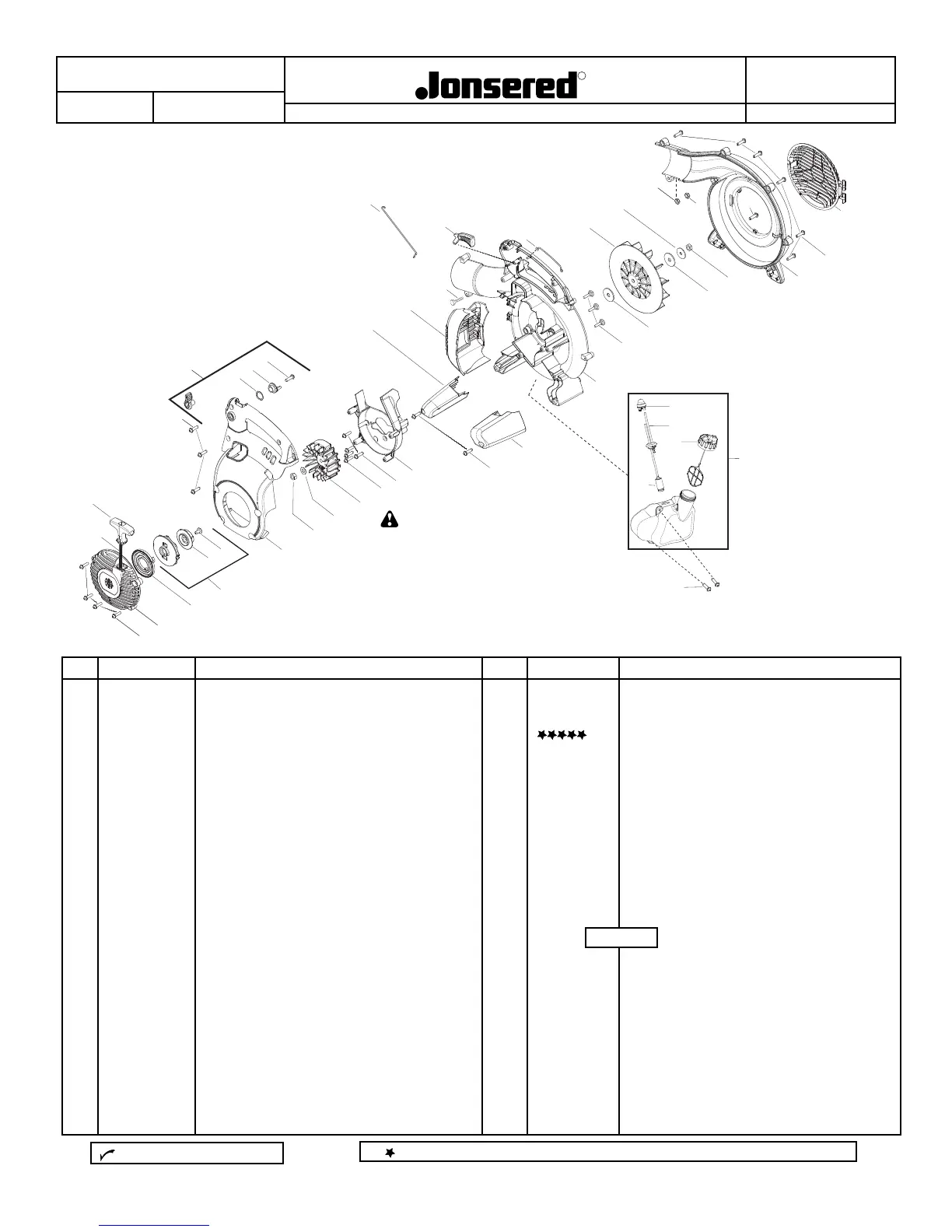

PARTS LIST
B2126 (EU/RoW/A
U/NZ)
1
Parts List No.
Date
MODEL
NOTE : Illustration may differ from actual model due to design changes.
R
1. 545081817 Kit - Rope
2. 545043205
Handle - Starter
3. 530015814 Screw
4. 545008020 Kit - Cruise Control (Incl. 5,6,7)
5. 530015147 Washer - Wave
6. 545111501 Ratchet - Cruise Control
7. 530015814 Screw
8. 545140302 Foot - Front Impact
9. 545157902 Assy. - Muffler Guard
10. 545003502 Screw - Blower tube
11. 545111301 Wire - Linkage
12. 545111602 Trigger - Throttle
13. 545131701 Wire - Handle Ground
14. 545173201 Impeller
15. 530015127 Washer
16. 530015197 Nut
17. 530015515 Locknut
18. 545111204 Cover - Vac Door
19. 530015814 Screw
20. 575533203 Assy - Outer scroll (Incl. 18)
21. 545147101 Nut - Impeller
22. 545164501 Washer - Impeller
23. 530016445 Screw
24. 545110003 Scroll - Inner
25. 530047721 Bulb - Purge
26. 545081841 Kit - Fuel line grommet (Incl. 25,28)
27. 545073101 Assy - Fuel cap with retainer
28. 530095646 Assy - Fuel pickup
29. 545108902 Assy - Fuel tank (Incl. 25,26,27,28)
30. 530015814 Screw - Fuel tank
31. 545140402 Foot - Rear Impact
32. 530015814 Screw
33. Scroll - Flywheel
34. 530015814 Screw
35. 530015810 Screw
36. 545088801 Assy - Flywheel
37. 530015828 Washer
38. 530016134 Nut - Flywheel
39. 573956401 Cover - Motor housing
40. 545112801 Screw
41. 545140801 Hub
42. 545081818 Kit - Starter (Incl. 40,41)
43. 530042095 Spring - Starter
44. 545111802 Housing - Starter Cover
45. 530015810 Screw
----- Manual - Operators
115278026 Euro 1
115278126 Euro 2
115278226 Euro 3
115278326 Euro 4
115278426 Euro 5
115278526 Euro 6
115278626 Euro 7
115278726 Euro 9
115277910 Scan
545094201 Scrench
WARNING
All repairs, adjustments and
maintenance not described in
the Operator’s Manual must be
performed by Qualified Service
Personnel.
Ref. Part No. Description Ref. P
art No. Description
Not Shown
= New Part Number For This IPL
= Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)
3
2
45
44
43
42
41
40
39
38
37
36
34
33
32
31
24
23
22
22
21
14
20
19
18
13
12
9
7
6
5
4
1
35
15
19
11
8
16
17
27
28
26
25
29
30
10
