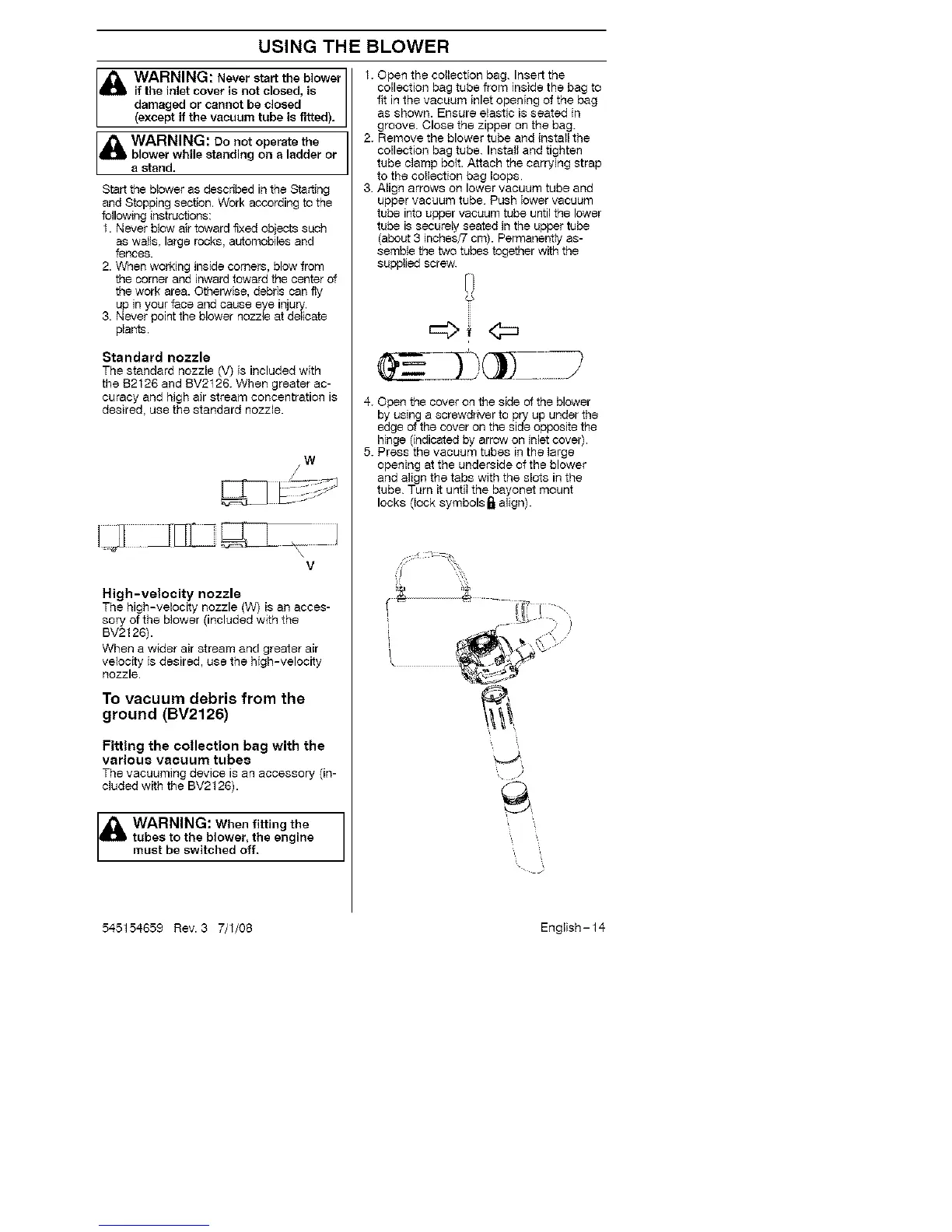

USING THE BLOWER
&WARNING: Never start the blower
if the inlet cover is not closed, is
damaged or cannot be closed
(except if the vacuum tube is fitted).
&WARNING: Do not operate the
blower while standing on a ladder or
a stand.
Start the bbwer as described in the Starting
and Stopping section. Work according to the
following instructions:
1. Never blow air toward fixed objects such
as walls, large rocks, automobiles and
fences.
2. When working inside corners, blow from
the corner and inward toward the center of
the work area. Otherwise, debris can fly
up in your face and cause eye injury.
3. Never point the blower nozzle at delicate
plants.
Standard nozzle
The standard nozzle (V) is included with
the B2126 and BV2128. When greater ac-
curacy and high air stream concentration is
desired, use the standard nozzle.
V
High-velocity nozzle
The high-velocity nozzle (W) is an acces-
sory of the blower (included with the
BV2126).
When a wider air stream and greater air
velocity is desired, use the high-velocity
nozzle.
To vacuum debris from the
ground (BV2126)
Fitting the collection bag with the
various vacuum tube8
The vacuuming device is an accessory (in-
cluded with the BV2126).
_ WARNING: When the
fitting
tubes to the blower, the engine
must be switched off.
1. Open the collection bag. Insert the
collection bag tube from inside the bag to
fit in the vacuum inlet opening of the bag
as shown. Ensure elastic is seated in
groove. Close the zipper on the bag.
2. Remove the blower tube and install the
collection bag tube. Install and tighten
tube clamp bolt. Attach the carrying strap
to the collection bag loops.
3. Align arrows on lower vacuum tube and
upper vacuum tube. Push bwer vacuum
tube into upper vacuum tube until the lower
tube is securely seated in the upper tube
(about 3 inches/7 cm). Permanently as-
semble the two tubes together with the
supplied screw.
4. Open the cover on the side of the blower
by using a screwdriver to pry up under the
edge of the cover on the side opposite the
hinge (indicated by arrow on inlet cover).
5. Press the vacuum tubes in the large
opening at the underside of the blower
and align the tabs with the slots in the
tube. Turn it until the bayonet mount
locks (_ock symbols _, align).
545154659 Rev. 3 7/1/08 English-14
