545164349
11/20/07
NEW
Page:
PARTS LIST
BV2126
1
Parts List No.
Date
MODEL

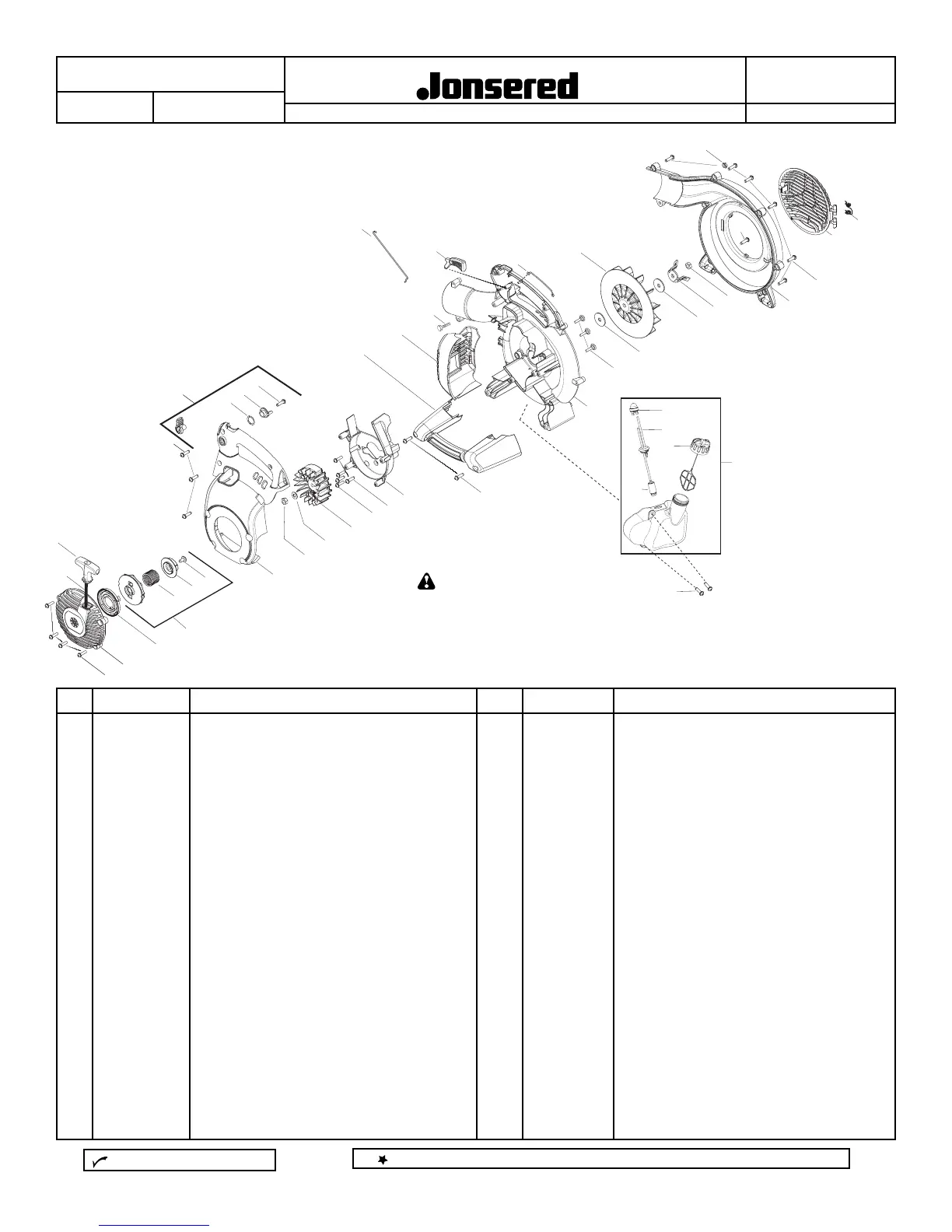

NOTE : Illustration may differ from actual model due to design changes.
3
2
44
43
42
41
39
38
37
36
35
34
32
31
30
24
23
22
22
20
14
19
18
17
15
13
12
10
9
7
6
5
16
4
1
40
33
21
18
11
8
27
28
26
25
29
30
1. 545081817 Kit - Rope
2. 545043205 Handle - Starter
3. 530015814 Screw
4. 545008020 Kit - Cruise control (Incl. 5,6,7)
5. 530015147 Washer - Wave
6. 545111501 Ratchet - Cruise control
7. 530015814 Screw
8. 545119003 Handle - Assist
9. 545157902 Assy. - Muffler guard
10. 545003502 Screw - Blower tube
11. 545111301 Wire - Linkage
12. 545111602 Trigger - Throttle
13. 545131701 Wire - Handle ground
14. 545131301 Impeller
15. 530015197 Nut - Blower tube
16. 545111101 Spring - Vac door
17. 545111203 Cover - Vac door
18. 530015814 Screw
19. 545113004 Assy - Outer scroll (Incl. 16,17)
20. 545147101 Nut - Impeller
21. 545139401 Blade - Mulch
22. 545164501 Washer - Impeller
23. 530016445 Screw
24. 545110004 Scroll - Inner
25. 530047721 Bulb - Purge
26. 545081841 Kit - Fuel line grommet (Incl. 25,28)
27. 545073101 Assy - Fuel cap with retainer
28. 530095646 Assy - Fuel pickup
29. 545108902 Assy - Fuel tank (Incl. 25,26,27,28)
30. 530015814 Screw
31. 545132801 Scroll - Flywheel
32. 530015814 Screw
33. 530015810 Screw
34. 545088801 Assy - Flywheel
35. 530015828 Washer
36. 530016134 Nut - Flywheel
37. 545108804 Cover - Motor housing
38. 545112801 Screw
39. 545089001 Hub
40. 545115901 Spring - EPS2
41. 545006084 Kit - Starter (Incl. 38,39,40)
42. 530042095 Spring - Starter
43. 545111802 Housing - Starter Cover
44. 530015810 Screw
WARNING
All repairs, adjustments and
maintenance not described in
the Operator’s Manual must be
performed by Qualified Service
Personnel.
noitpircseD .oN traP .feRnoitpircseD .oN traP .feR
= New Part Number For This IPL
= Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)
