Repair Instructions

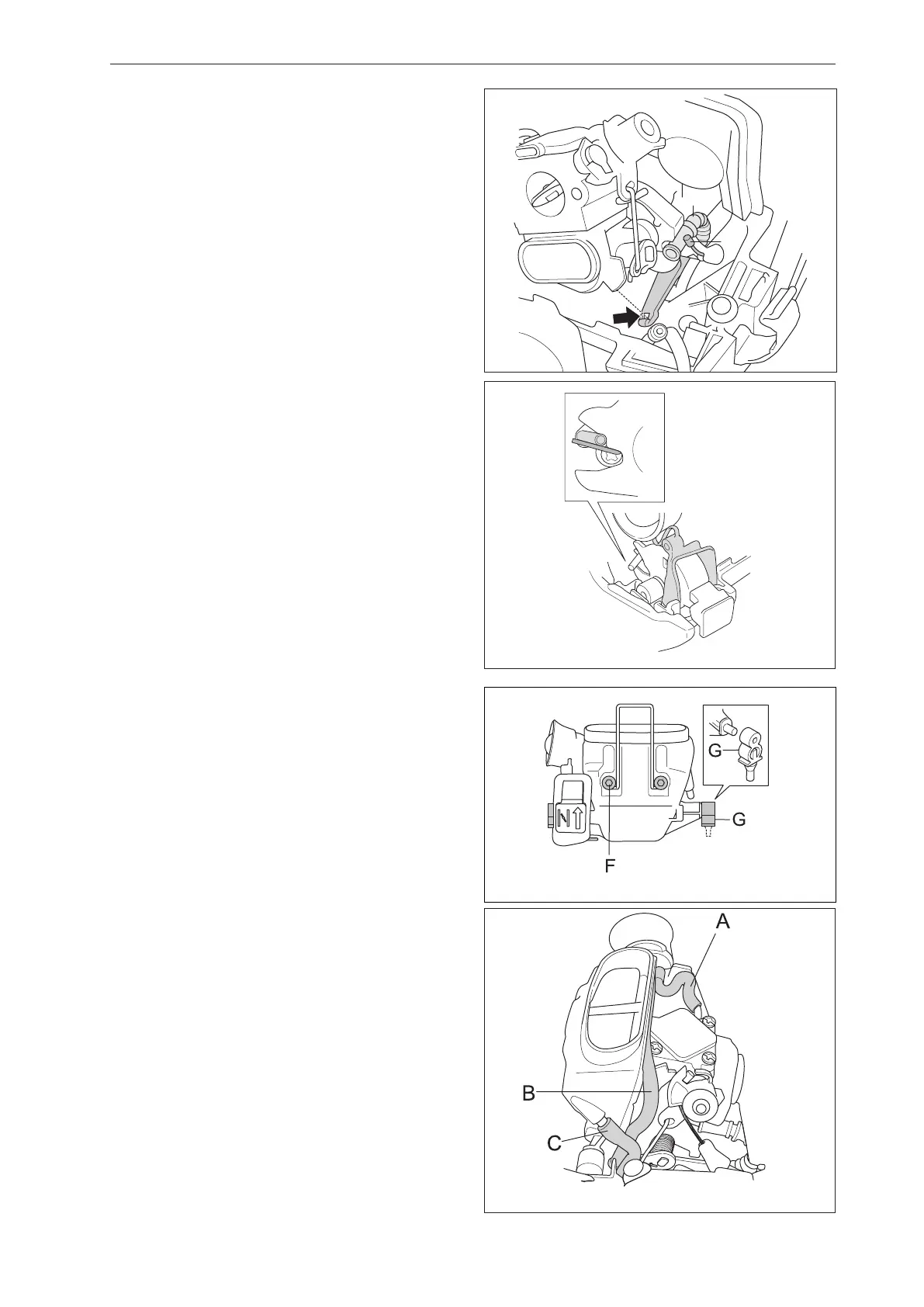

Fig 48
Fig 46
Fig 49
2
Make sure the cabling is tted to its mounting on
the intake ange.
Press the fuel hose (D) in place in the collar on the
intake bellows.
Hook on the throttle cable (E) in its mounting on
the intake bellows. See gure 46.
Make sure the lug on the carburettor hooks in
place on its mounting on the intake system.
Make sure that the following components are
correctly fitted:
• Position the air lter holder against the carburet-
tor.
• Make sure the carburettor cover’s intake channel
is aligned correctly with the slot for the air lter
holder.
• The spring must be tted under the choke pin on
the carburettor. See gure 47.
• The rubber collar on the stop button must be on
the inside of the bottom of the carburettor com-
partment. See gure 47.
• NOTE! Make sure that the fuel and return hoses
are not crushed.
3
Position the guide taps on the air lter holder in the
rubber grommets, G. See gure 48.
4
Hook on the throttle cable, E. See gure 46.
Fasten the return hose B and secure it in its
mountings on the air lter holder.
Attach the pressure hose A, with the short hose on
the short plastic plug on the fuel pump.
Attach the tank bleeding hose, C. See gure 49.
5
Hook it on the left side and then the right side of
the carburettor in the rubber mounting. Then screw
the carburettor in place. See gure 48.
6
Fit the air lter.
