PARTS LIST
Replaces
2
Note: Illustration may differ from actual model due to design changes
PARTS LIST NO.
PAGE NO.
MODEL(s)
530082992
GT32L
DATE
8/07/02
530082992 --- 9/6/00
All repairs, adjustments and
maintenance not described in
the Operator’s Manual must be
performed by qualified service
personnel.
WARNING
12
27
23
24
25

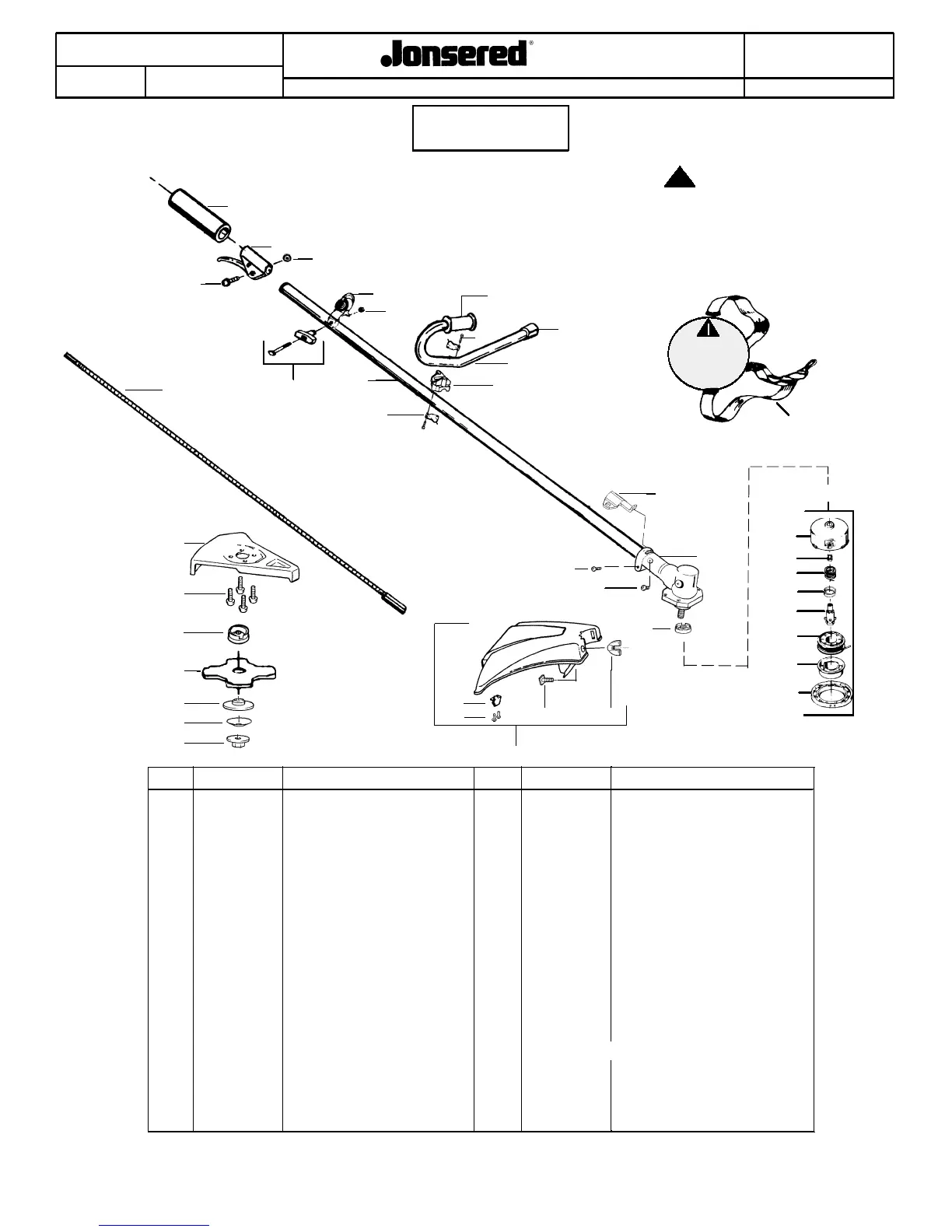

1. 530029445 Grip--Driveshaft
2. 530010959 Assy--Throttle
3. 530015768 Nut
4. 530015774 Screw
5. 530094686 Assy--Clamp Harness
6. 530015197 Nut
7. 530092086 Grip--Fin
8. 530015791 Bolt
9. 530092192 Cap--End
10. 530010723 Assy--Handlebar w/decal
11. 530012207 Clamp--Handlebar
12. 530095963 Shaft--Flex
13. 530069252 Assy--T--Handle
14. 530071591 Kit--Driveshaft Assy.
15. 530094572 Bracket--Handlebar
16. 530071383 Kit--Shield Blade w/decal
17. 530016312 Screw
18. 530094815 Blade Dust cup
19. 530054865 Blade--Weed
20. 530095816 Washer--Blade Retaining
21. 530016240 Washer--Belleville
22. 530015793 Nut--Flange (LH)
23. 530052285 Limiter--Line
24. 530015805 Screw
25. 530015820 Bolt
26. 530015197 Nut--1/4--20
27. 530069779 Kit--Shield Ass’y. (Incls.23--26)
28. 530016014 Screw
29. 530016371 Screw
30. 530095812 Bracket -- Shield
31. 530071585 Assy.--Gearbox
32. 952715546 Accy--Cutting Head
33. 530093896 Assy--Hub
34. 530093898 Line Saver
35. 530340007 Spring
36. 530328929 Cap--Spring
37. 530095121 Arbor
38. 952715548 Accy--Spool w/line
39. 530401183 Button--Release
40. 530092133 Cover
41. 530094417 Strap--Shoulder
530056335 Decal--Blade Direction
530027778 Decal--handlebar Warning
530163027 Operator Manual
530038908 Decal--Shaft Warning
Ref. Part No. Description Ref. Part No. Description
Not Shown
14
30
18
29
28
26
=
