7.1 Replacing parts in the burn
chamber
Use tools with great care. The Skamol panel (back burn plate)
should be handled with care to avoid damage.

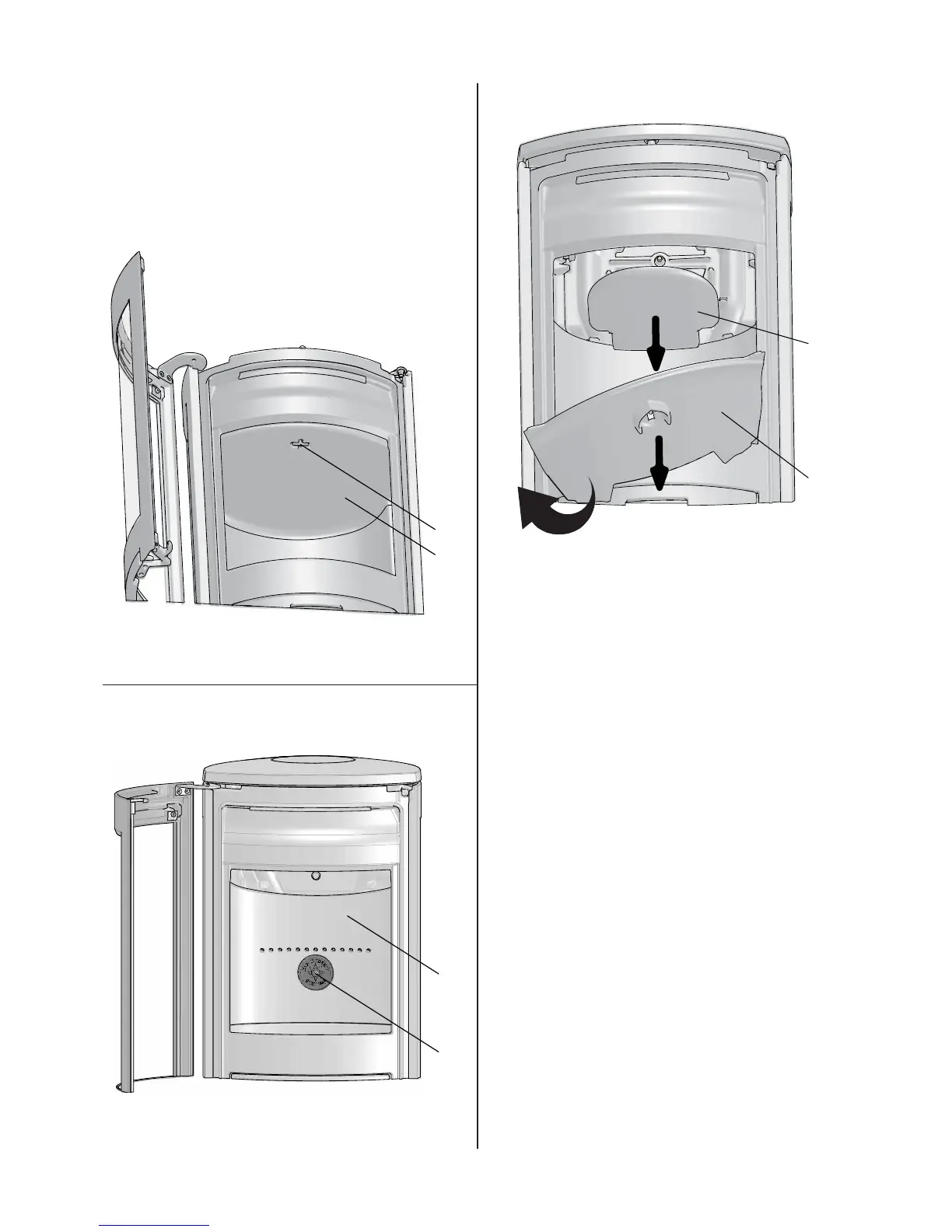

Replacing the baffl e plate
Fig. 33
A
B
1. Lift the baffl e plate (A) and turn the key (B) 90° in the baffl e
plate (A) and then remove the key. Lift the rear edge of the
baffl e plate and tilt it out.
Replacing the burn plate
Fig. 34
2. Remove the burn plate (C) by unscrewing the screw (D) in the
centre of the fi xing plate. Lift it up and tilt the burn plate out.
Replacing the exhaust defl ectors
Fig. 35
E
F
3. The lower and upper exhaust defl ectors are located above
the baffl e plate. Remove the lower defl ector (E) by lifting it
at the rear edge and tilting it out.
4. Lift the upper defl ector (F) out of the grooves and remove
it from the burn chamber.
When refi tting, follow the same procedure in reverse
order.
ENGLISH
