11

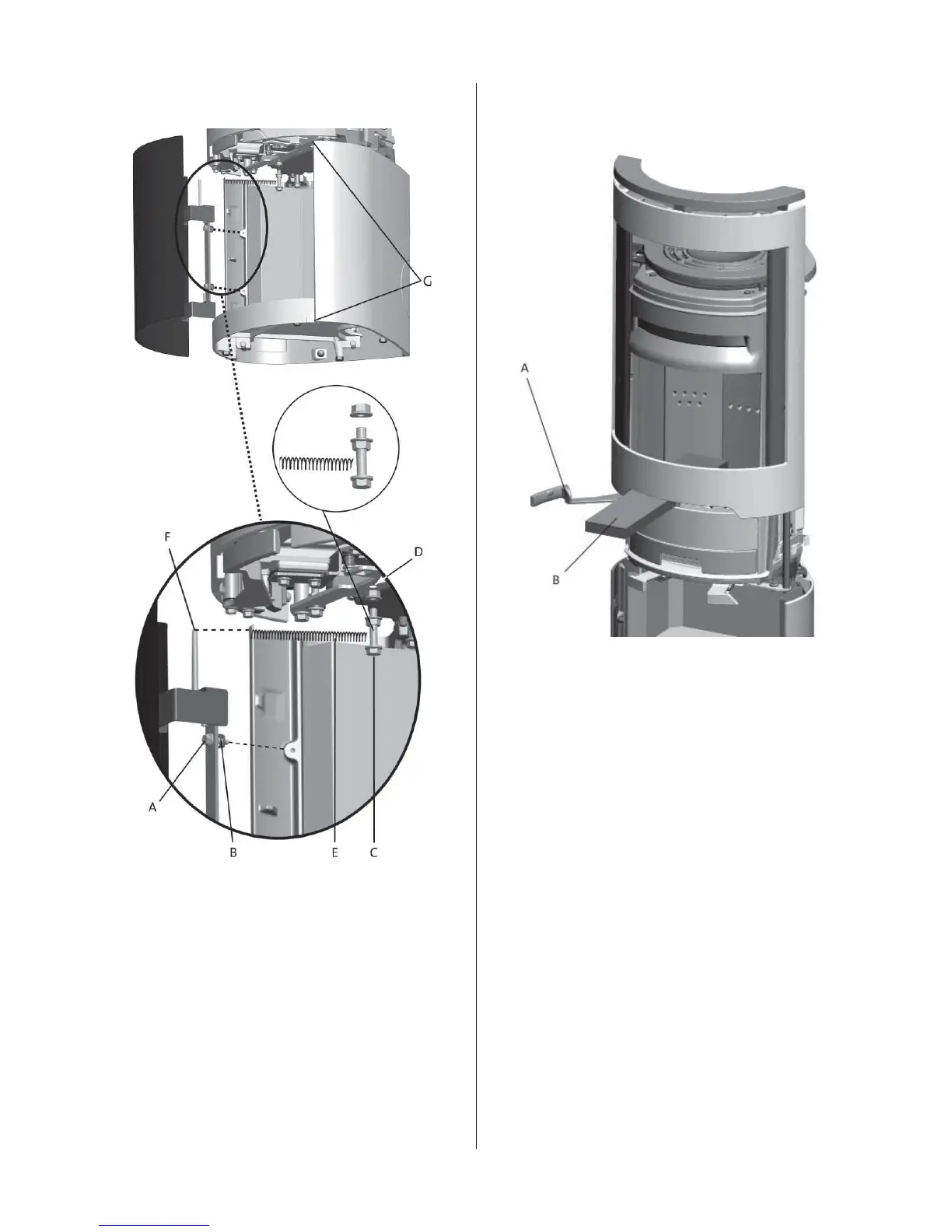

Jøtul F 475 – Base with glass door
Fig. 11
1. Assemble the cast iron base and external air supply as
described in the previous chapter.
2. Adjust the screws downwards (Fig. 8 A) by approx. 4 mm to
prevent the glass door from touching the floor.
3. Remove the shelf from the base.
4. Glue a resilient button from the bag of screws to the top and
bottom right-hand side of the base (fig. 11 G).
5. Attach the hinge for the glass door to the base using the
M6 x 20 mm screws (Fig. 11 A) which are in the bag of screws
for the glass door. Insert the springs (Fig. 11 B) between the
threaded holes and the hinge before tightening the screws.
There must be an even gap between the door and the base to
allow the door to hang straight. Adjust the door, if necessary,
by tightening or loosening the two screws (Fig. 11 A).
6. Fasten the screw (Fig. 11 C) M8 x 40 mm upside down using
the 2 nuts in the stiffener (Fig. 11 D) under the burn chamber.
Suspend the spring (Fig. 11 E) between screws C and F.
Mounting the weights
Fig. 12
1. Open the door handle completely (Fig. 12 A), raise the door
without touching the handle and push one of the wooden
packaging strips in (Fig. 12 B).
ENGLISH
